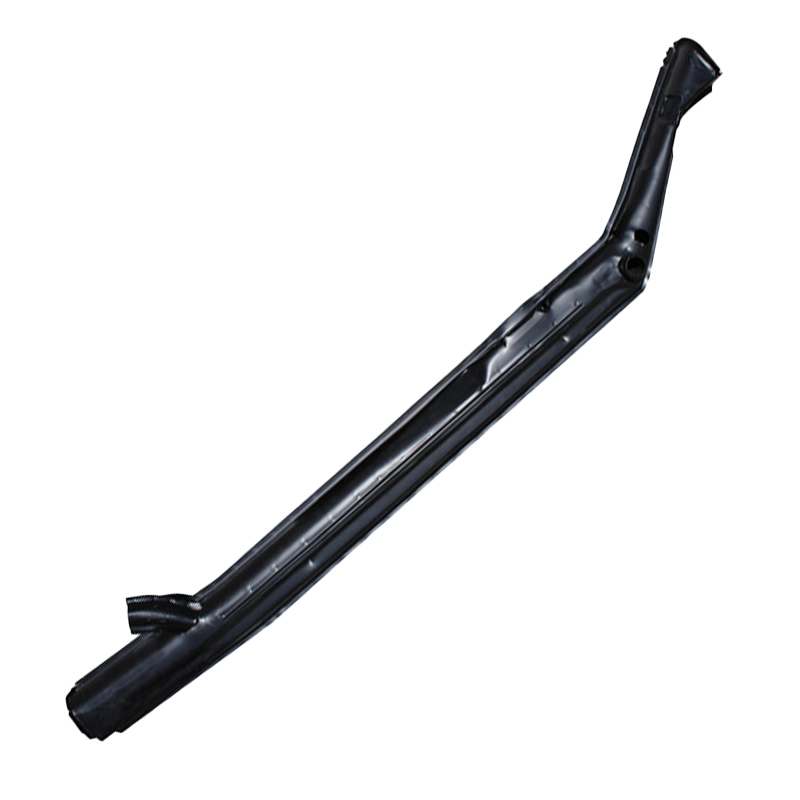

Heater Channel, Right Side, For Beetle 69-77

OVERVIEW

When it comes to restoring the structural integrity and comfort of your classic Volkswagen, nothing is more critical than the heater channels. These components serve as the backbone of your Beetle''s body, providing the essential rigidity needed to keep your doors aligned and your chassis stiff. Over decades of exposure to road salt, moisture, and debris, the original factory channels are notorious for rotting from the inside out. This KeyParts Right Side Heater Channel is engineered to meet the demands of serious restorers who refuse to compromise on fitment. By replacing your compromised or "crusty" original rails with this high-quality steel assembly, you are not just fixing a rust hole; you are restoring the safety and longevity of your air-cooled investment. This assembly includes the internal ducting necessary to carry warm air from the heat exchangers to the front footwells, ensuring that your cabin remains comfortable during those crisp morning drives.

Precision is paramount during a body-off or body-on restoration, and this heater channel delivers the accuracy required for a successful installation. Designed specifically for the 1969 through 1977 model years, it accounts for the specific body contours and mounting points unique to the later-model Type 1 platform. Fabricated from heavy-gauge steel, it provides a solid foundation for your quarter panels, A-pillars, and B-pillars to tie into. Whether you are dealing with a Standard Beetle or a Super Beetle, the right-side heater channel is the primary structural member for the passenger side of the vehicle. Installing a fresh, solid channel eliminates the dreaded "body sag" that often leads to doors that won''t latch properly or windows that bind. At Appletree Automotive, we understand that a restoration is only as good as the metal you weld in, which is why we offer this robust solution to keep your VW on the road for another fifty years.

FITMENT

• Volkswagen Beetle (Standard): 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977
• Volkswagen Super Beetle: 1971, 1972, 1973, 1974, 1975, 1976, 1977
• Volkswagen Beetle Convertible: 1969, 1970 (Note: Later convertibles may require additional reinforcement bracing specific to the convertible chassis)
• Side: Right Side (Passenger Side)

SPECS

• Part Number: 111-801-046L
• Brand: KeyParts
• Material: High-quality stamped steel
• Finish: Protective shipping primer (requires prep before final welding and paint)
• Overall Length: Approximately 72 inches
• Width: Approximately 5 inches
• Weight: 8.0 lbs
• Configuration: Full assembly including internal heater ducting
• Application: Direct replacement for OE passenger side heater channel

PRO TIPS

1. Structural Bracing is Non-Negotiable

Before you ever spark up the plasma cutter or grinder to remove your old, rusted heater channel, you MUST brace the body. Because the heater channel is the primary bridge between the front and rear of the car, removing it without internal bracing will cause the body to fold or "taco" in the middle. We recommend welding temporary 1-inch square tubing in a "cross" or "X" pattern across the door opening, connecting the A-pillar to the B-pillar and the floor to the pillars. This ensures that when the new metal is tacked into place, your door gaps remain perfect and the body doesn''t shift out of alignment.

2. Internal Corrosion Protection

One of the biggest mistakes builders make is welding in a new channel and leaving the inside bare. Heater channels usually rust from the inside out because of condensation and trapped moisture. Before installation, we highly recommend spraying a weld-through primer on the mating surfaces and using a long-wand internal frame coating or cavity wax inside the channel after all welding is complete. This extra step creates a moisture-resistant barrier that prevents the "tin worm" from returning, especially in the humid environments where air-cooled Volkswagens often struggle.

3. Test Fit with the Door and Fender

Never fully weld the heater channel into place until you have test-fitted the door and the front fender. Use Cleco fasteners or temporary sheet metal screws to hold the channel in position, then hang the passenger door to check the bottom gap. The heater channel defines the door sill line; if it is tilted too high or too low, your door will never shut correctly. Likewise, check the bolt holes where the heater channel meets the fender and the running board. Taking an extra hour to mock up these exterior panels will save you days of frustration and "re-work" later in the paint and assembly phase.
