Heater Box Install Kit, All Aircooled VW, Type 1

OVERVIEW

When you are deep into an engine build or a routine exhaust replacement, the last thing you want to deal with is a snapped stud or a stripped clamp from hardware that has been heat-cycled and rusted for decades. The AA Pistons Heater Box Install Kit is the definitive solution for securing your exhaust system to your heater boxes or J-tubes with factory-level precision. At Appletree Automotive, we know that a leak-free exhaust is not just about noise reduction; it is about ensuring your heater boxes actually deliver warmth to the cabin and preventing dangerous exhaust fumes from entering your heat exchangers. This kit provides the heavy-duty clamping force required to create a gas-tight seal between your muffler and the rest of your Type 1 engine exhaust system, ensuring your VW runs as quietly and efficiently as the day it left the assembly line.

Precision-engineered by AA Pistons, this installation kit is designed to withstand the extreme thermal expansion and contraction cycles that are inherent to the air-cooled Volkswagen engine. Whether you are running a stock 1600cc dual-port or a vintage 1200cc 40hp, these components are manufactured to exacting tolerances to ensure a perfect fit without the need for modification. We frequently see enthusiasts try to reuse old, pitted hardware only to end up with annoying exhaust leaks that cause popping on deceleration or poor heater performance. By investing in this complete hardware kit, you are eliminating the weak points in your exhaust assembly. This kit is a must-have for anyone installing new heater boxes or a fresh muffler, providing the reliability and peace of mind that only high-quality, fresh hardware can offer.

FITMENT

• Volkswagen Beetle: 1950 through 1977 (Standard)
• Volkswagen Super Beetle: 1971 through 1979
• Volkswagen Karmann Ghia: 1956 through 1974
• Volkswagen Type 181 Thing: 1973 through 1974
• Engine Compatibility: Fits 1200cc, 1300cc, 1500cc, and 1600cc based upright air-cooled engines.
• Application Note: Designed for use with stock-style heater boxes or J-tubes connecting to a standard or performance muffler.

SPECS

• Manufacturer: AA Pistons
• SKU: 111-298-007
• Material: High-grade automotive steel with corrosion-resistant coating.

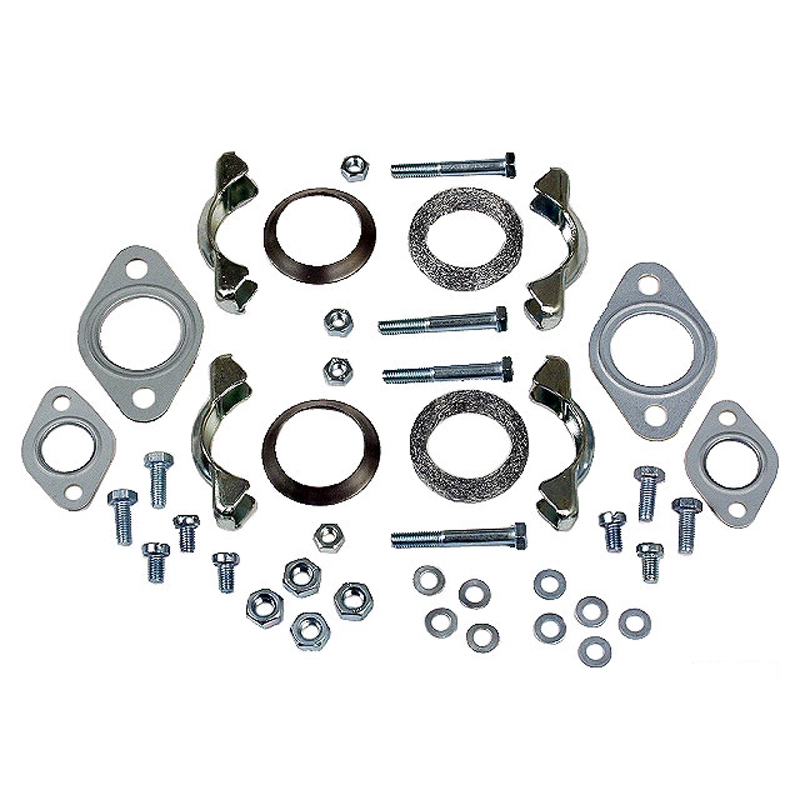

• Components Included: Heavy-duty exhaust clamps, bolts, nuts, and necessary sealing gaskets.
• Clamp Style: Split-ring design for maximum compression around the exhaust flange.
• Gasket Material: Heat-resistant composite or metal-crush style for high-temperature durability.
• Finish: Zinc or galvanized finish to resist road salt and moisture.
• Quantity: Sold as a complete kit for one installation.

PRO TIPS

Tip 1: Use High-Temp Anti-Seize on All Threads

The exhaust system is the harshest environment on your VW due to constant moisture and extreme heat cycles. Before you thread the nuts onto the bolts in this kit, apply a generous amount of copper-based or nickel-based high-temperature anti-seize. This simple step prevents the hardware from "galling" or seizing over time. If you ever need to remove the exhaust for a valve adjustment or engine pull in the future, you will be thanking yourself when the nuts spin off smoothly instead of snapping the bolt or requiring a torch.

Tip 2: Align the Gaskets and Seat the Clamps Evenly

Exhaust leaks often occur because the clamp was tightened lopsidedly, causing the gasket to pinch rather than seal. When installing this kit, fit the gasket between the heater box and muffler flange, then hand-tighten the nuts on both sides of the clamp. Slowly alternate between the two nuts, turning each a few times at a time, to ensure the clamp applies even pressure across the entire circumference of the flange. This "balanced" tightening method ensures the gasket seats perfectly and prevents "blow-by" leaks that can lead to carbon buildup and whistling sounds.

Tip 3: Inspect the Heater Box Flanges Before Installation

While this kit provides fresh hardware, it cannot fix a warped or heavily pitted heater box flange. Before you slide the new gaskets into place, take a flat file or a sanding block and lightly clean the mating surfaces on your heater boxes and the muffler. If the flanges are bent from previous over-tightening of old hardware, use a pair of pliers or a hammer and dolly to straighten them. A clean, flat surface combined with the fresh hardware in this AA Pistons kit is the only way to guarantee a 100% leak-free seal that will last for years.
