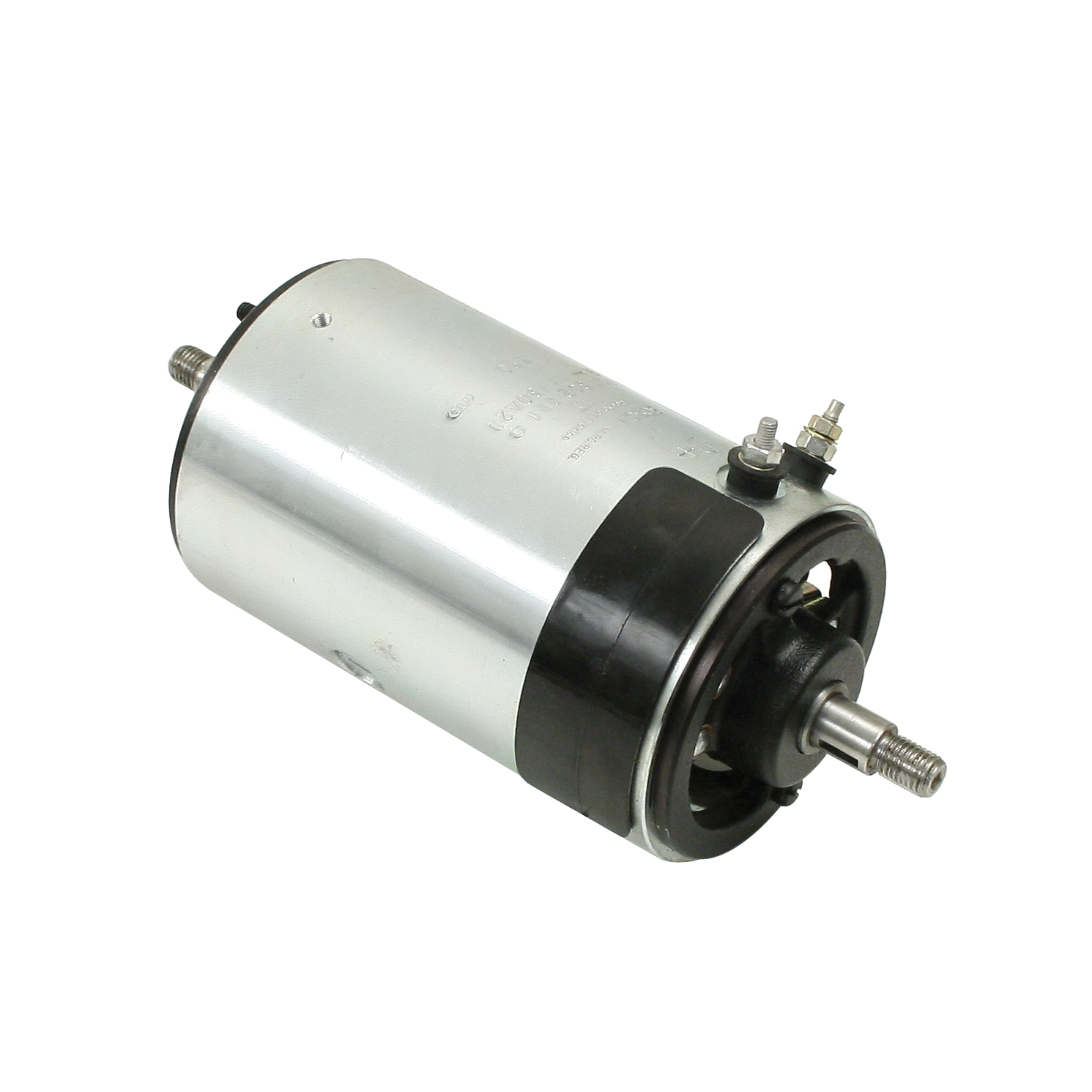

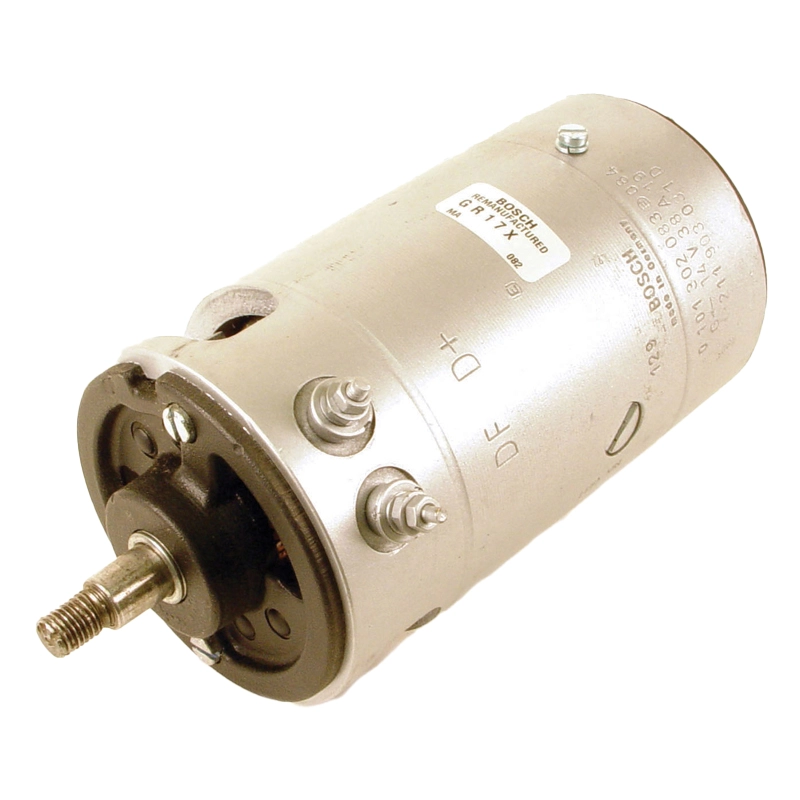

Generator, 12 Volt, for Aircooled VW

OVERVIEW

When it comes to maintaining the electrical integrity of your vintage Volkswagen, nothing beats the reliability of a high-quality charging system. This brand-new 12-volt Bosch-style generator is the definitive solution for air-cooled enthusiasts who want to maintain that classic factory appearance while ensuring their engine has the consistent power needed to run lights, ignition, and accessories. Unlike modern alternators that can look out of place in a period-correct engine bay, this generator provides the authentic 105mm diameter aesthetic that defined the golden era of the Beetle and Karmann Ghia. Engineered to meet or exceed original equipment specifications, this unit features high-temp copper windings and precision-ground armatures designed to withstand the heat and vibration inherent in the VW engine compartment. By choosing a brand-new unit over a remanufactured core, you are eliminating the risks of internal fatigue, worn-out brush holders, or warped housings that often plague decades-old original parts.

At Appletree Automotive, we understand that your VW is more than just a car; it''s a labor of love. That is why we offer this 12V generator as a complete, "no-core-required" assembly. This means you don''t have to worry about the hassle and expense of shipping your old, greasy core back to us. This generator is the standard 30-amp powerhouse that served as the backbone of the Volkswagen lineup from the late 1960s through the early 1970s. It is designed to work in perfect harmony with an external voltage regulator, providing a stable charging curve that keeps your battery topped off even during long idle periods. Whether you are performing a 12-volt conversion on an earlier 6-volt car or simply replacing a tired, noisy generator that has seen better days, this unit delivers the peace of mind that only comes from installing a fresh, zero-mile electrical component. It''s the perfect marriage of vintage style and modern manufacturing reliability.

FITMENT

• Volkswagen Beetle (Type 1): 1967, 1968, 1969, 1970, 1971, 1972, 1973
• Volkswagen Karmann Ghia: 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974
• Volkswagen Bus (Type 2): 1967, 1968, 1969, 1970, 1971
• Volkswagen Thing (Type 181): 1973 - 1974
• Custom Applications: Fits most 1500cc and 1600cc upright air-cooled engines used in Dune Buggies, Sand Rails, and Trikes.

SPECS

• Voltage Output: 12 Volts DC
• Amperage Rating: 30 Amps (Standard Output)
• Housing Diameter: 105mm (Large Diameter)
• Case Material: Heavy-duty stamped steel with corrosion-resistant finish
• Internal Windings: High-grade insulated copper for maximum conductivity
• Terminal Connections: D+ and DF screw-type terminals for secure wiring
• Shaft Design: Precision-tapered and keyed shaft for standard generator pulleys
• Bearing Type: Double-sealed, high-speed ball bearings for long service life
• Brush Material: Premium carbon-graphite brushes pre-installed
• Weight: Approximately 15.7 lbs

PRO TIPS

1. Always Polarize Your New Generator

One of the most critical steps that many DIY mechanics overlook is the polarization of the generator after installation. Because a generator relies on residual magnetism in the field coils to start the charging process, you must "teach" it which direction the current should flow. If you fail to do this, the generator might not charge at all, or worse, it could damage your voltage regulator. To polarize this unit, simply take a small jumper wire and momentarily touch the "B+" (Battery) terminal on your regulator to the "D+" terminal on the generator for about one second. You should see a small spark; this confirms the magnetic field is set. Never do this with an alternator, but for this 12V generator, it''s a mandatory step for a successful install.

2. Check Your Voltage Regulator Compatibility

Since this is a standard generator and not an alternator with a built-in internal regulator, it requires an external 12-volt voltage regulator to function correctly. When installing this new unit, we highly recommend replacing your old regulator at the same time. An old or failing regulator can "cook" your brand-new generator by allowing it to overcharge, or it can prevent it from charging the battery entirely. Ensure your regulator is specifically designed for a 30-amp generator system. Also, double-check your wiring; the D+ terminal on the generator must go to the D+ on the regulator, and the DF (Dynamo Field) must go to the DF on the regulator. Mixing these up is the fastest way to shorten the life of your new electrical components.

3. Proper Belt Tension and Pulley Alignment

The longevity of your generator''s front and rear bearings is directly tied to the tension of your fan belt. In an air-cooled VW, the fan belt doesn''t just drive the generator; it also spins the cooling fan that keeps your engine from melting down. You want the belt to be tight enough that it doesn''t slip, but not so tight that it puts excessive side-load on the generator shaft. A good rule of thumb is that you should be able to push the belt in about 1/2 inch with thumb pressure at the midpoint between the pulleys. Additionally, ensure that your pulley shims are correctly placed so that the top and bottom pulleys are perfectly aligned. A misaligned belt will cause vibration, which can lead to premature brush wear and bearing failure over time.
