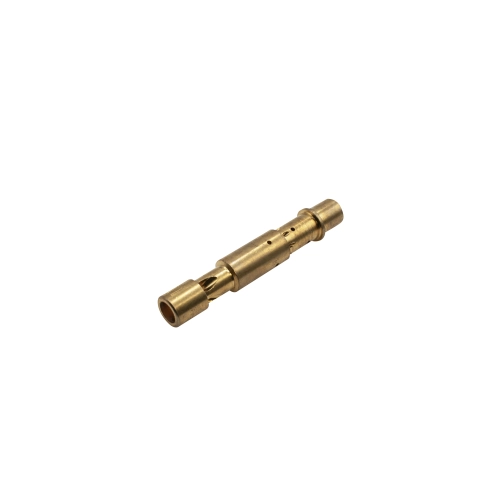

Emulsion Tube, F9, for IDF, HPMX, DCOE DCO, EPC Carbs

Product Overview: The Heart of Your Air-Cooled Fuel Delivery

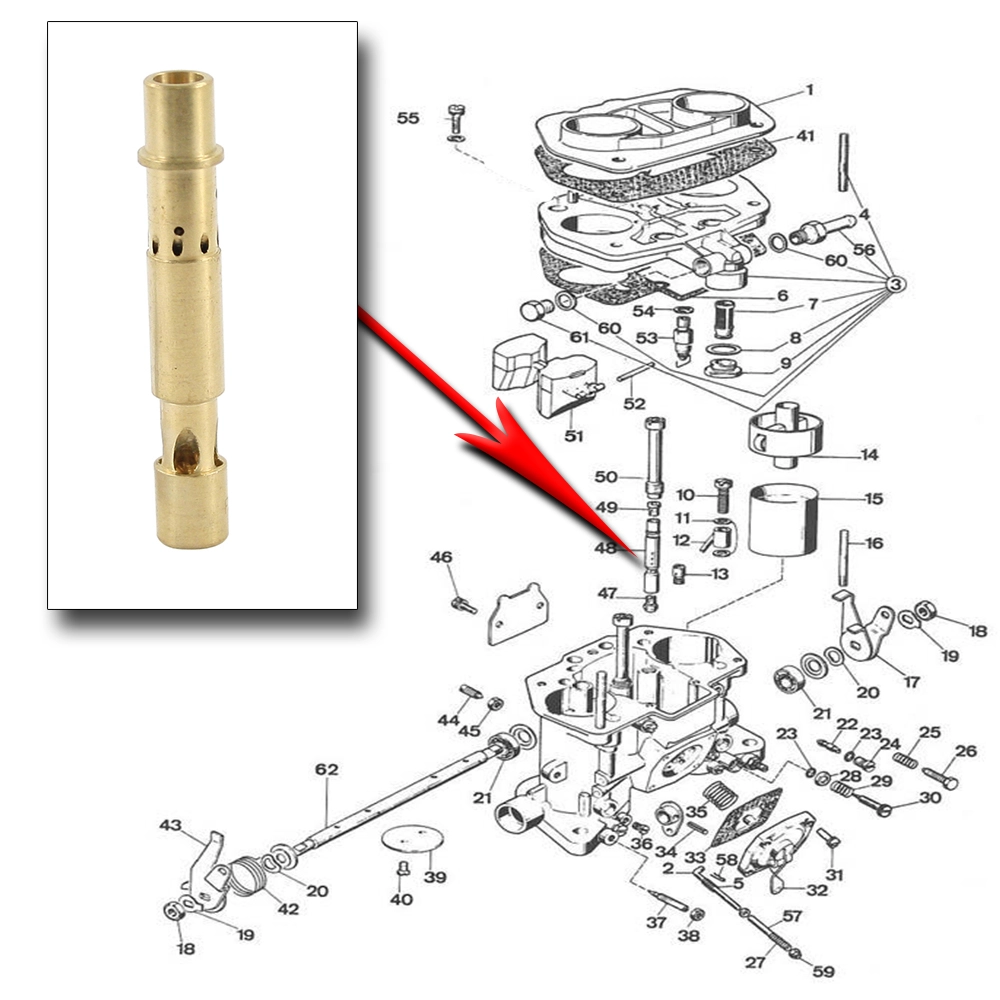

The emulsion tube is often the most misunderstood component in a high-performance carburetor, yet it is arguably the most critical for shaping your air-cooled engine''s fuel curve. In the sophisticated architecture of Weber IDF, EMPI HPMX, and DCOE series carburetors, the F9 emulsion tube acts as the primary staging area where air and fuel first meet. As air enters through the air corrector jet, it travels down the center of this precision-machined brass tube, escaping through a series of calibrated holes to mix with the fuel surrounding the tube. This aeration process is what allows the fuel to be "lifted" into the venturi stream efficiently. For the VW enthusiast, selecting the F9 profile means you are looking for a specific timing in how that fuel is atomized, ensuring that the transition from the idle circuit to the main circuit is seamless and devoid of the dreaded "flat spot" that plagues poorly tuned dual-carburetor setups.

Precision is paramount when you are tuning a classic Volkswagen for the street, the strip, or the sand. These EMPI F9 emulsion tubes are manufactured to exacting tolerances to ensure consistent performance across all cylinders, which is vital for the longevity of your flat-four engine. Whether you are building a torquey 1914cc street engine or a high-revving 2276cc powerhouse, the F9 profile provides a versatile mid-range enrichment characteristic that works exceptionally well with modern ethanol-blended fuels. At Appletree Automotive, we understand that fueling is the backbone of air-cooled reliability. Upgrading to fresh, debris-free emulsion tubes is a vital step in any professional carburetor rebuild, ensuring that your Beetle, Ghia, or Bus maintains a crisp throttle response and optimal power output throughout the entire RPM range.

Vehicle and Carburetor Fitment

This F9 Emulsion Tube is designed for use in a wide variety of performance carburetors commonly found on air-cooled Volkswagens, Porsches, and custom sand rails. It is compatible with the following carburetor models and applications:

• Weber Carburetors: 40 IDF, 44 IDF, 48 IDF, 40 DCOE, 42 DCOE, 45 DCOE, 48 DCOE, and 48 IDA.
• EMPI Carburetors: 40 HPMX, 44 HPMX, 48 HPMX, and EPC 48/51 series.
• VW Models: Type 1 Beetle, Karmann Ghia, Type 2 Bus, Type 3, and VW Thing (when equipped with dual performance carburetors).
• Off-Road: Dune Buggies, Sand Rails, and Manx-style tub buggies utilizing Weber-style induction systems.

Technical Specifications and Materials

Each EMPI emulsion tube is engineered to meet or exceed original equipment standards for fuel metering accuracy.

• Material: High-quality, corrosion-resistant yellow brass for long-term durability in fuel-rich environments.
• Tube Profile: F9 (Specifically designed for mid-to-high RPM fuel atomization).
• Hole Configuration: Precision-drilled vertical and horizontal ports for optimized air-to-fuel mixing.
• Fitment Type: Drop-in replacement for main circuit stacks.
• Quantity: Sold individually (Note: Most dual-carb VW engines require 4 tubes total).
• Compatibility: Interchanges with Weber part numbers for F9 series tubes.
• Manufacturing: Precision CNC machined for identical flow characteristics across multiple units.

Pro Tips from the Appletree Tech Bench

Tip 1: The Importance of Matching Sets

When tuning or rebuilding your carburetors, never replace just one emulsion tube if you suspect a performance issue. Emulsion tubes work in harmony with your main jets and air correctors. To ensure your air-cooled VW runs balanced and smooth, you should always install a matched set of four F9 tubes across both carburetors. Even minor variations in hole diameter or debris buildup between an old tube and a new one can cause "cylinder dropping" or uneven exhaust temperatures, which can lead to engine damage over time. Always verify that all four tubes share the same "F" designation before installation.

Tip 2: Understanding the F9 Fuel Curve

The F9 emulsion tube is a "thick" tube compared to the F11, meaning it occupies more volume in the well and allows for a smaller volume of fuel to sit around it. This typically results in a slightly leaner mixture at the very beginning of the main circuit transition but provides a very stable and predictable fuel delivery as engine load increases. If you are experiencing a stumble right as you tip into the throttle, and your accelerator pump is already optimized, switching to the F9 from an F11 can sometimes help sharpen that transition by changing the timing of when the air bleeds begin to aerate the fuel column.

Tip 3: Deep Cleaning the Emulsion Wells

Before dropping your new F9 emulsion tubes into the carburetor bodies, it is imperative to clean the emulsion tube wells thoroughly. Over years of service, "varnish" from old fuel can bake onto the walls of the carburetor casting. Even a microscopic layer of residue can change the clearance between the tube and the well, effectively altering your fuel mixture. Use a dedicated carburetor cleaner and compressed air to ensure the wells are spotless. When installing the new tubes, ensure they seat fully at the bottom; if they are sitting high, they will not align with the fuel passages, and your VW will suffer from severe lean conditions under load.
