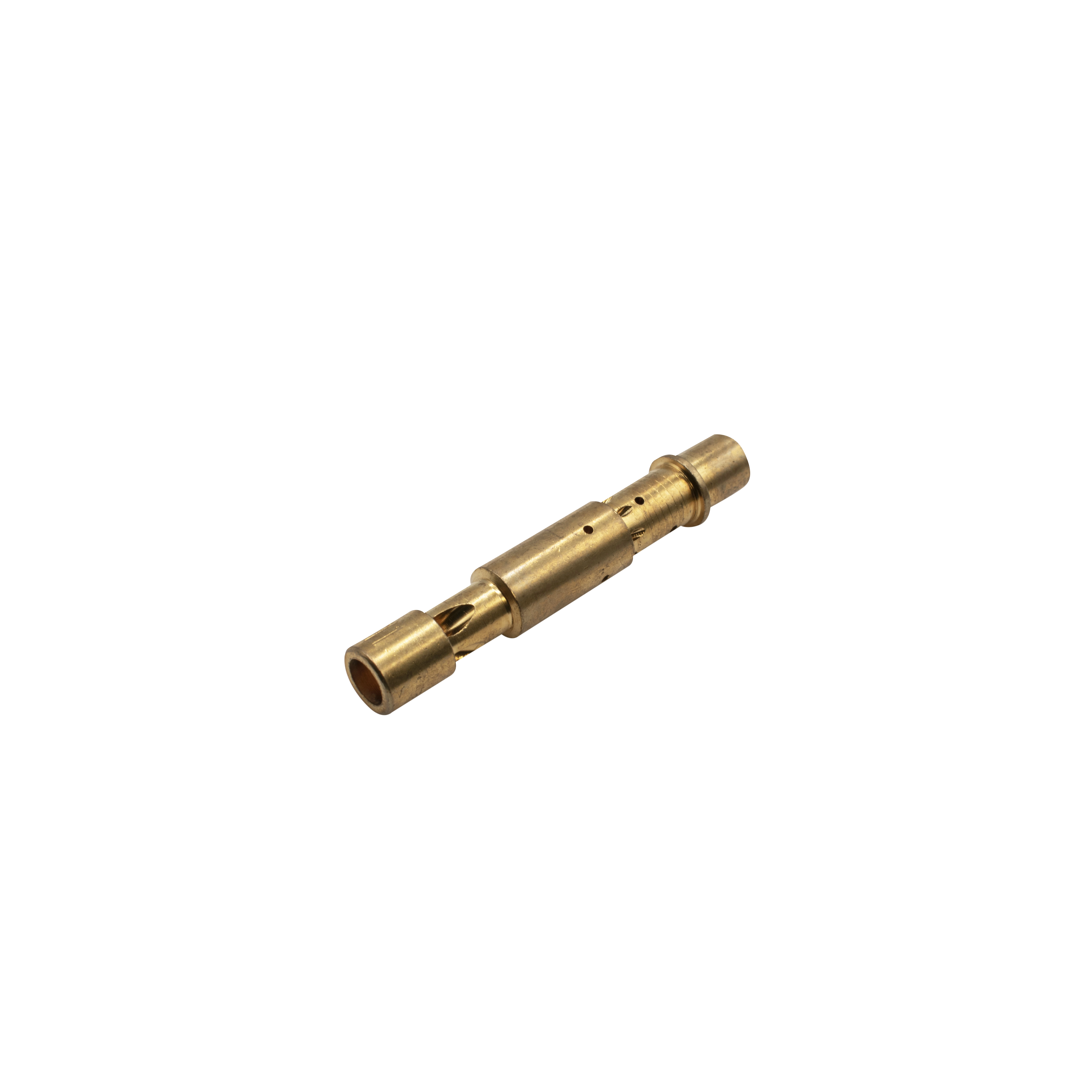

Emulsion Tube, F3, for IDF, HPMX, DCOE DCO, EPC Carbs

OVERVIEW

When it comes to fine-tuning your high-performance air-cooled engine, the emulsion tube is often the most misunderstood yet critical component in your carburetor''s signal path. The EMPI F3 Emulsion Tube serves as the heart of the main metering system for Weber IDF, EMPI HPMX, and DCOE series carburetors. Its primary job is to mix air from the air corrector jet with fuel from the main jet, creating a frothy emulsion that is easily atomized as it enters the venture. The F3 profile is specifically engineered for engines that require a richer mixture during the transition phase, helping to eliminate those frustrating flat spots that often plague performance VWs during mid-range acceleration. Whether you are running a 1915cc street sleeper or a 2332cc stroker, Appletree Automotive provides these precision-machined brass tubes to ensure your fuel delivery is consistent, predictable, and optimized for maximum horsepower.

Choosing the correct emulsion tube is often described as a dark art, but the F3 is a staple for many tuners working with larger displacement Type 1 and Type 4 engines. Unlike other tubes that may lean out too quickly, the F3 maintains a robust fuel column, making it ideal for applications where high-velocity airflow demands a steady supply of fuel before the high-speed enrichment fully takes over. These EMPI tubes are manufactured to exacting tolerances, ensuring that if you are running dual carburetors, both banks of cylinders are receiving the exact same air-fuel mixture. Don''t settle for "close enough" when it comes to your engine''s internal chemistry; upgrade to these high-quality F3 tubes and experience the crisp throttle response and smooth power band that your air-cooled Volkswagen deserves.

FITMENT

This F3 Emulsion Tube is designed for use in the following performance carburetor models and air-cooled applications:

• Carburetor Models: Weber IDF (40, 44, 48), EMPI HPMX (40, 44, 48), Weber DCOE (40, 42, 45, 48), Weber DCO, and EMPI EPC (48, 51) series.
• VW Type 1: Beetle, Karmann Ghia, and Thing models equipped with dual performance carburetors.
• VW Type 2: Bus, Transporter, and Westfalia (1600cc to 2000cc+ performance builds).
• VW Type 3: Fastback, Notchback, and Squareback models converted to dual IDF or HPMX setups.
• Custom Applications: Dune Buggies, Sand Rails, and Trikes utilizing Weber-style induction systems.

SPECS

• Part Number: 43-5671-0
• Material: High-Grade Precision Machined Brass
• Emulsion Series: F-Series
• Size Designation: F3
• Primary Function: Main circuit air/fuel aeration and transition timing
• Compatibility: Interchangeable with Weber and EMPI performance carburetors
• Quantity: Sold Individually (Note: Most dual-carb setups require four tubes total)
• Orifice Configuration: Specialized hole pattern for enriched mid-range fuel delivery

PRO TIPS

Tip 1: Solving the Mid-Range Stumble

If your engine experiences a "stumble" or "flat spot" when you transition from the idle circuit to the main circuit (usually between 2,500 and 3,500 RPM), your emulsion tubes are likely the culprit. The F3 tube is specifically designed to start the main circuit earlier and keep it richer than an F11 or F7 tube. When tuning, always ensure your main jets and air correctors are in the ballpark before swapping tubes, but if the transition remains lean regardless of jet size, the F3 is often the "silver bullet" for heavy-footed street drivers.

Tip 2: Symmetry is Key for Dual Carbs

When installing new emulsion tubes in a dual-carburetor setup, it is imperative that you replace all four tubes at the same time. Even a slight variation in the hole diameter or placement between an old tube and a new one can cause one cylinder bank to run richer or leaner than the other. This leads to uneven cylinder head temperatures and a "hunting" idle. Always verify that all four tubes are stamped "F3" and look for any burrs or manufacturing debris inside the tube before installation to ensure perfect synchronization.

Tip 3: Proper Cleaning and Maintenance

Brass is a soft metal, and the precision-drilled holes in the F3 emulsion tube are critical to its performance. Never use a metal wire or a drill bit to clean a clogged emulsion tube, as you will inadvertently resize the holes and ruin the calibration. Instead, use a dedicated carburetor cleaning solvent and compressed air to blow out any varnish or debris. If you notice any green corrosion (common in cars sitting with modern ethanol fuels), it is best to replace the tubes entirely rather than attempting to scrub them, as the internal surface finish is vital for proper fuel emulsification.
