Crank Pulley Kit, Billet Top & Fits Air-Cooled Beetle

OVERVIEW

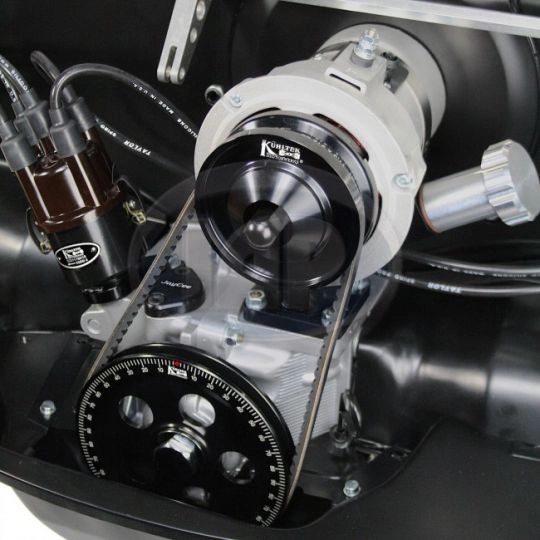

Upgrade your air-cooled engine''s performance and aesthetics with the Kuhltek Hi-Performance Black Crank Pulley Kit. This comprehensive kit is designed for the serious VW enthusiast who demands precision timing and a clean, custom look under the decklid. Unlike standard stamped steel pulleys that can warp or lack clear timing indicators, this kit features a high-quality bottom degree pulley paired with a precision-machined billet aluminum top pulley. The sleek black finish provides a modern, aggressive appearance that resists corrosion and complements any engine build, from a daily driver restoration to a high-performance street-strip machine. By utilizing a degree-marked bottom pulley, you gain the ability to accurately set your ignition timing, which is essential for maximizing horsepower and ensuring your engine runs cool and efficiently.

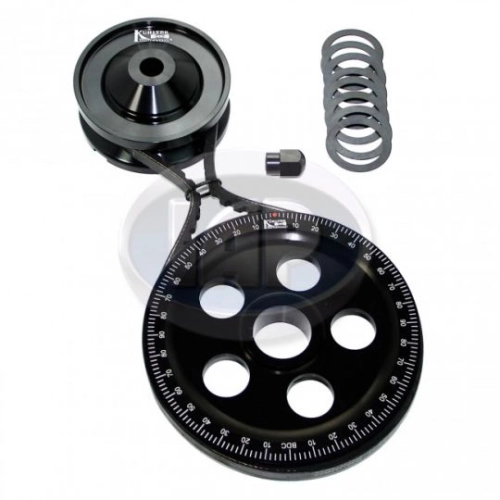

The kit is engineered for a seamless installation experience, providing everything you need to overhaul your belt drive system in one package. Included in the box are the black bottom degree pulley, a matching billet black top pulley for your alternator or generator, a heavy-duty pulley nut, and a complete set of pulley shims. The inclusion of shims is critical, as it allows you to fine-tune the belt tension and alignment, preventing premature belt wear and reducing the load on your engine''s internal bearings. Whether you are building a 1600cc dual-port or a stroker powerhouse, this Kuhltek kit ensures that your cooling fan and charging system operate at peak performance while giving your engine bay the professional finish it deserves.

FITMENT

• Volkswagen Beetle: 1950 through 1979 (Standard and Super Beetle)
• Volkswagen Karmann Ghia: 1956 through 1974
• Volkswagen Bus / Type 2: 1950 through 1971 (Upright 1200cc-1600cc Engines)
• Volkswagen Thing (Type 181): 1973 through 1974
• Volkswagen Squareback, Fastback, Notchback (Type 3): 1961 through 1973 (Requires Upright Conversion)
• Custom Applications: Fits most 1200cc, 1300cc, 1500cc, and 1600cc based air-cooled VW engines used in Dune Buggies, Sand Rails, and Trikes.

SPECS

• Product Brand: Kuhltek Performance
• Material (Top Pulley): CNC Machined Billet Aluminum
• Material (Bottom Pulley): High-Strength Steel / Alloy Construction
• Finish: Anodized / Coated High-Durability Black
• Markings: Precision Etched Degree Marks for accurate timing
• Pulley Type: Standard Diameter (Maintains OEM cooling fan speeds)
• Kit Includes: Bottom Degree Pulley, Billet Top Pulley, Pulley Nut, and Adjustment Shims
• Weight: 1.6 lbs
• Part Number: AC903013
• Compatibility: Fits standard 12-volt Alternators and Generators

PRO TIPS

Tip 1: Perfecting Belt Alignment and Tension

When installing your new Kuhltek pulley kit, the most important step is ensuring the top and bottom pulleys are perfectly aligned on the same vertical plane. Use the included shims between the two halves of the top pulley to adjust the belt tension. A common mistake is over-tightening the belt, which can lead to premature failure of the alternator or generator bearings. Ideally, you should have about 1/2 inch of deflection in the belt when pressed firmly with your thumb. If the belt is squealing, add or remove shims to find the "sweet spot" where the belt is snug but not under excessive stress. Always double-check that the woodruff key on the crankshaft is seated perfectly before sliding the bottom pulley into place to avoid damaging the crank snout.

Tip 2: Verify True Top Dead Center (TDC)

While the degree markings on this pulley are highly accurate, every engine build has slight variations due to crankshaft and case tolerances. For the most precise tuning, use a piston stop tool to verify that the "0" mark on your new pulley aligns perfectly with the case split when the #1 piston is at its highest point. Once you have confirmed True TDC, you can use the degree markings to set your total timing advance with total confidence. This is especially important for high-compression engines where a few degrees of timing error can lead to engine-damaging detonation. Using a timing light in conjunction with these clear degree marks makes tuning your Bosch 009 or vacuum-advance distributor a much simpler and more accurate process.

Tip 3: Maintenance and Cooling Efficiency

The black finish on these pulleys isn''t just for looks; it helps you spot leaks or debris more easily than a dirty, rusted stock pulley. During your regular oil change intervals, take a moment to inspect the pulley nut for tightness and check the belt for any signs of cracking or glazing. Since air-cooled engines rely entirely on the fan speed dictated by the pulley ratio, ensure that the pulley surfaces remain clean and free of oil or grease. If oil is present on the back of the bottom pulley, it may indicate a failing crankshaft sand seal or an issue with the oil return threads. Keeping the belt system in top shape ensures that your cooling fan is spinning at the correct RPM, which is the single most important factor in the longevity of your air-cooled VW engine.
