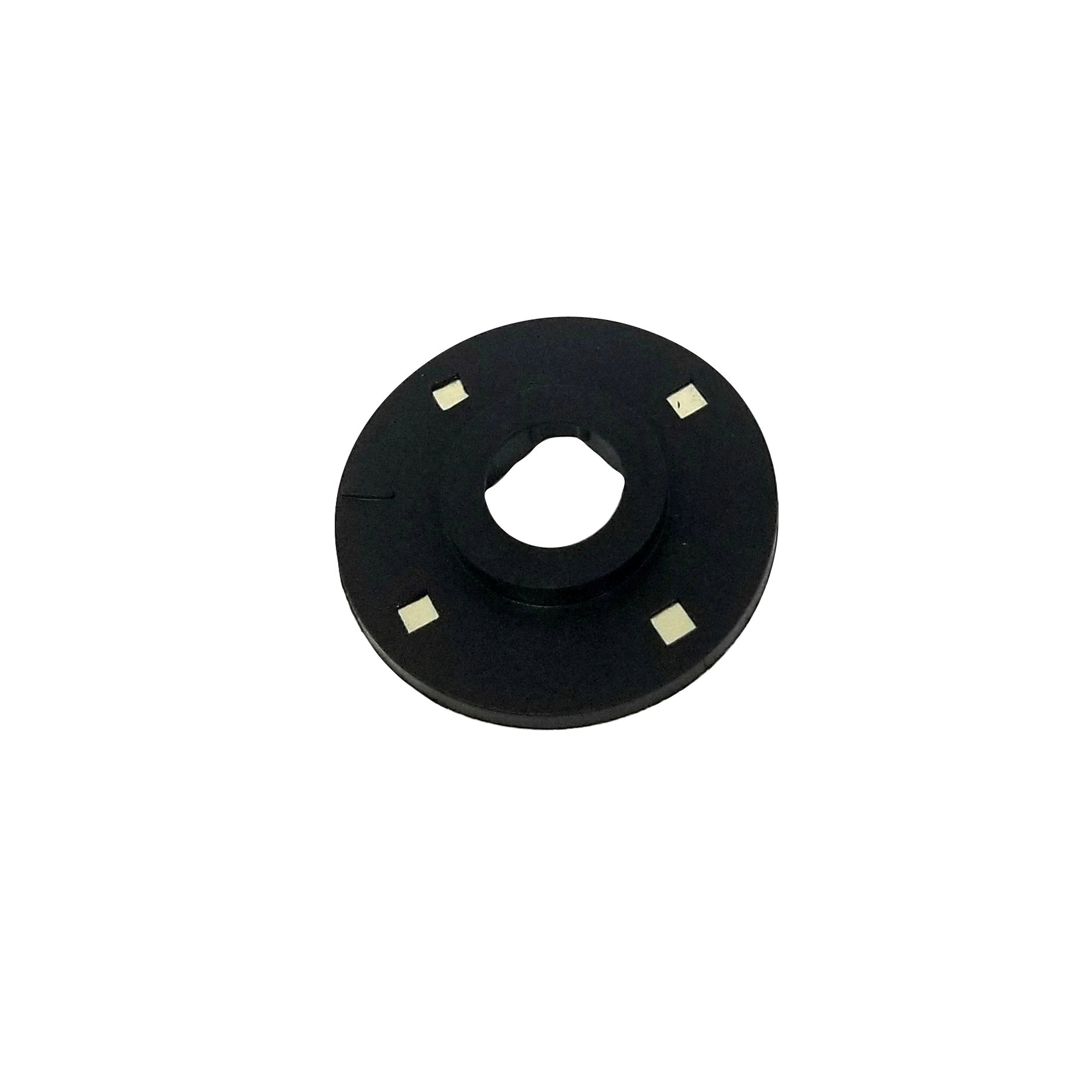

Compufire Electronic Ignition Replacement Pickup

OVERVIEW

When you are out on the trail or cruising the highway, the last thing you want is a set of pitted points ruining your day. The Compufire Electronic Ignition Replacement Pickup is the ultimate insurance policy for your air-cooled Volkswagen ignition system. Designed specifically as a direct replacement component for the 00-9421-0 and 00-9422-0 kits, this magnetic pickup rotor eliminates the mechanical friction and wear associated with traditional ignition points. By removing the physical contact point, you effectively eliminate points bounce at high RPMs, ensuring that your engine maintains a crisp, consistent spark all the way to the redline. This isn''t just about convenience; it''s about modernizing your classic VW engine to provide the kind of reliable starting and smooth idling that modern drivers expect, without sacrificing the vintage soul of your vehicle.

Precision is the name of the game with the Compufire system. Traditional points are subject to dwell variations as the rubbing block wears down, leading to timing drift that can sap power and decrease fuel economy. This replacement pickup uses a high-output magnetic trigger to send a rock-solid signal to your ignition system, ensuring that your timing remains dead-on from the moment you set it. Furthermore, this unit is engineered to be far more weather-resistant than a standard distributor setup. Moisture and humidity, which often cause no-start conditions in point-triggered distributors, have little effect on this sealed electronic component. Whether you are building a high-performance street Beetle or a rugged off-road dune buggy, this Compufire pickup is the key to a maintenance-free ignition system that stands up to the vibration and heat of the air-cooled environment.

FITMENT

• VW Beetle: All years equipped with a Bosch 009 or 050 style mechanical advance distributor.
• VW Super Beetle: 1971-1979 models utilizing 009 mechanical advance distributors.
• VW Bus / Type 2: 1950-1979 models (1200cc, 1500cc, 1600cc, and Type 4 engines) with 009 distributors.
• VW Karmann Ghia: All years and engine displacements using mechanical advance distributors.
• VW Type 3: Squareback, Fastback, and Notchback models converted to 009 style ignition.
• VW Thing: 1973-1974 Type 181 models with 12V electrical systems.
• Dune Buggies & Sand Rails: Any air-cooled VW-based engine running a 009 pointless ignition setup.

SPECS

• Product Part Number: 00-9421-3
• Compatibility: Replacement pickup for Compu-fire kits 00-9421-0 and 00-9422-0.
• Trigger Type: Hall-Effect Magnetic Sensor.
• Voltage Compatibility: 12-Volt DC systems only.
• RPM Range: Reliable operation from 0 to 8,000+ RPM.
• Housing Material: High-temperature resistant composite polymer.
• Wiring: Two-wire lead with high-grade insulation for oil and heat resistance.
• Installation Style: Drop-in replacement for the internal distributor plate.
• Resistance Requirement: Must be used with a coil having at least 3.0 Ohms of primary resistance.

PRO TIPS

1. Verify Your Coil Resistance Immediately

The most common cause of premature failure for electronic ignition pickups is using the wrong ignition coil. Before you install this Compufire replacement, you must verify that your coil has a minimum of 3.0 Ohms of primary resistance. If you use a high-performance performance coil with low resistance (like a 0.6 Ohm or 1.5 Ohm racing coil) without an external ballast resistor, you will feed too much current through the pickup module and fry the electronics. Always use a digital multimeter to check the resistance between the positive and negative terminals of your coil to protect your investment.

2. Clean the Distributor Shaft for a Perfect Seat

For the magnetic trigger wheel to function correctly, it must sit perfectly level and secure on the distributor cam. Before sliding the new pickup and magnet onto the shaft, take a moment to clean the distributor cam lobes with a bit of degreaser or brake cleaner. Any old grease,
