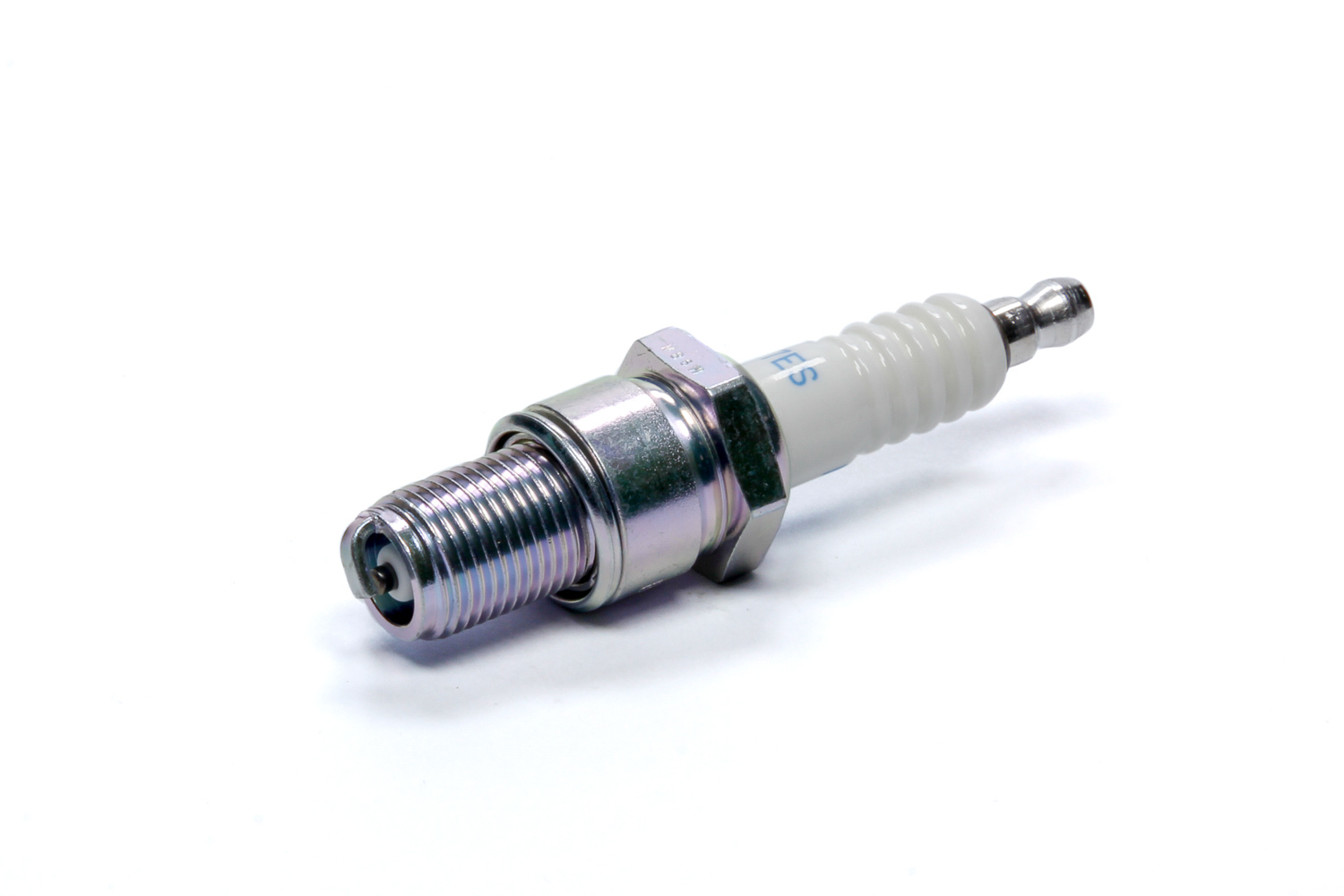

Br7Es Ngk Spark Plug, Each

Maximize Your Air-Cooled Performance with the NGK BR7ES Spark Plug

When it is time to tune your air-cooled engine for peak reliability and power, the choice of spark plug is one of the most critical decisions you can make. The NGK BR7ES is a premium, standard-style spark plug engineered to withstand the extreme cylinder temperatures and high-demand environments typical of modified Volkswagen engines. Unlike standard passenger cars, air-cooled VWs rely heavily on efficient combustion to manage heat, and NGK''s advanced ceramic insulators and nickel alloy electrodes provide the thermal conductivity necessary to prevent pre-ignition. Whether you are cruising the coastline in a classic Beetle or pushing your sand rail through the dunes, this resistor-type plug ensures a consistent, high-voltage arc that stabilizes your idle and improves throttle response across the entire RPM range.

The "7" heat range on the NGK scale represents a slightly colder plug than the standard "6," making the BR7ES an ideal candidate for engines with increased compression ratios, high-lift camshafts, or those operating in warmer climates. As a "long reach" plug with a 19mm (3/4 inch) thread length, it is specifically designed for high-performance aftermarket cylinder heads that require more thread engagement than stock factory castings. By choosing NGK, you are investing in a world-class ignition component that features trivalent metal plating for superior anti-corrosion and anti-seizing properties. This means easier removals during maintenance and a better seal against the cylinder head, ensuring that your vintage Volkswagen stays on the road and out of the shop.

Detailed Fitment and Application Guide

The NGK BR7ES is a specialized spark plug designed for engines utilizing long-reach (3/4 inch) spark plug holes. Please verify your cylinder head depth before ordering, as many stock VW heads use short-reach plugs, while most performance aftermarket heads require this long-reach version.

• Volkswagen Beetle: 1950-1979 (With aftermarket long-reach performance heads)
• Volkswagen Bus / Transporter: 1950-1979 (Type 1 and Type 4 engines with long-reach heads)
• Volkswagen Karmann Ghia: 1955-1974 (High-performance builds)
• Volkswagen Type 3 (Squareback, Fastback, Notchback): 1961-1973
• Volkswagen Thing (Type 181): 1973-1974
• Custom Sand Rails & Dune Buggies: All years utilizing 1600cc to 2332cc air-cooled engines
• Off-Road Applications: Ideal for high-heat, high-load environments

Technical Specifications and Dimensions

Precision engineering is at the heart of every NGK product. Below are the technical details for the BR7ES spark plug:

• Thread Diameter: 14mm
• Thread Reach: 19mm (3/4 inch)
• Hex Size: 21mm (13/16 inch)
• Heat Range: NGK 7 (Colder than stock for performance applications)
• Resistor Type: Yes (5k Ohm resistor for RFI suppression)
• Electrode Material: Nickel Alloy
• Center Electrode Core: Copper Core for maximum heat dissipation
• Insulator Material: High-grade Alumina Ceramic
• Terminal Type: Solid / Non-removable nut
• Gap Setting: Pre-set at .028 inches (Adjustable to engine builder specs)

Expert Pro Tips from Appletree Automotive

1. Always Verify Your Head Depth

One of the most common mistakes in the air-cooled VW world is installing a long-reach plug like the BR7ES into a stock short-reach head. If the threads protrude into the combustion chamber, they will accumulate carbon, making removal nearly impossible and potentially causing engine damage. Conversely, if you use a short plug in a long-reach head, the spark will be shrouded, leading to poor combustion. Always measure your head depth or consult your cylinder head manufacturer (such as CB Performance, EMPI, or AA) to ensure the 3/4 inch reach is correct for your specific build.

2. The Importance of Anti-Seize in Aluminum Heads

Since air-cooled VW cylinder heads are made of aluminum, they are highly susceptible to galling and thread damage. When installing your new NGK plugs, we recommend applying a very small amount of high-temperature silver or nickel anti-seize to the threads. However, be careful not to over-torque the plug; anti-seize acts as a lubricant and reduces the friction needed to reach the specified torque. Tighten the plug to "finger tight" and then give it an additional 1/16th to 1/8th of a turn to crush the washer and create a perfect seal without stripping the soft aluminum threads.

3. Understanding the Colder Heat Range

The NGK BR7ES is a "7" heat range, which is colder than the "6" often found in stock engines. A colder plug is designed to transfer heat away from the combustion chamber faster. This is vital for engines running higher compression (9.0:1 or higher) or those using dual carburetors where cylinder pressures and temperatures are significantly elevated. If you find that your current plugs are showing signs of "blistering" or white deposits on the ceramic, stepping up to this BR7ES can help prevent detonation and protect your pistons from heat-related failure.
