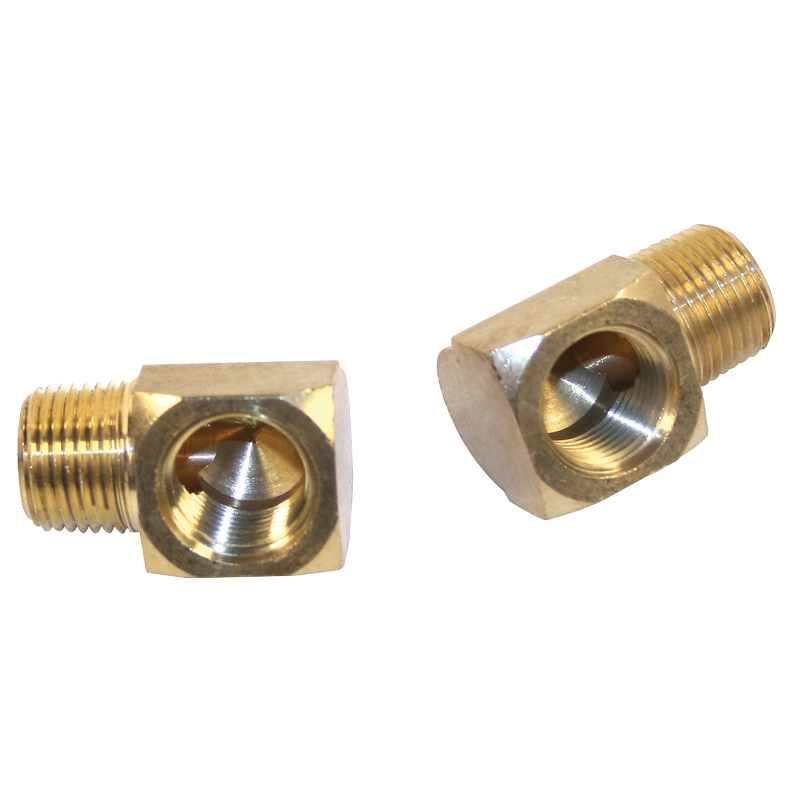

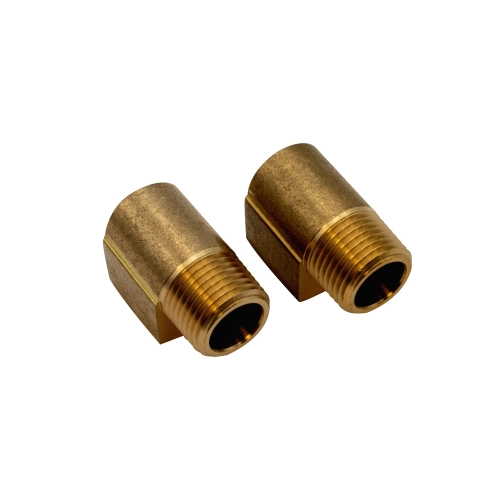

Barbed Fittings, 90 Degree, 1/2 NPT, 1/2 Female, 2 Pack

OVERVIEW

When you are pushing a high-performance air-cooled engine to its limits, managing oil temperature and flow is the difference between a legendary weekend at the track and an expensive tow home. These EMPI Barbed Fittings are engineered specifically for the demanding environments of Volkswagen oil systems, where vibration and heat are constant factors. Whether you are plumbing an external oil cooler, a remote oil filter bracket, or a high-volume oil pump, these 90-degree fittings provide the necessary clearance to navigate the tight confines of a Type 1 or Type 2 engine bay. Constructed from high-quality brass, these fittings offer superior corrosion resistance and a reliable seal that aluminum or plastic alternatives simply cannot match. By utilizing a 90-degree bend, you can eliminate dangerous hose kinks that restrict oil flow, ensuring your engine receives a steady supply of cooled, filtered oil even under extreme racing conditions.

Precision is everything in a custom VW build, and these 1/2-inch NPT fittings deliver the robust performance that Appletree Automotive customers expect. The 2-pack configuration ensures you have matching hardware for both the inlet and outlet sides of your oiling components, providing a professional and uniform look to your plumbing. Brass is the material of choice for professional engine builders because it expands and contracts at a rate compatible with aluminum engine cases and oil pump housings, reducing the risk of stress cracks or leaks over time. These fittings are designed to bite into 1/2-inch ID oil hoses, creating a secure connection that stands up to the high-pressure surges common during cold starts. Don''t settle for subpar plumbing that could lead to a catastrophic oil pressure loss; upgrade your Beetle, Bus, or Sand Rail with hardware that is as tough as the air-cooled legacy it supports.

FITMENT

These fittings are universal for any air-cooled VW application utilizing 1/2-inch NPT ports and 1/2-inch ID oil lines, including:

• Volkswagen Type 1: Beetle, Bug, and Super Beetle (All years).
• Volkswagen Type 2: Bus, Transporter, Kombi, and Microbus (1950-1979).
• Volkswagen Type 3: Fastback, Squareback, and Notchback.
• Volkswagen Karmann Ghia: All model years.
• Volkswagen Thing: Type 181 Safari.
• Custom Applications: Dune Buggies, Sand Rails, Baja Bugs, and Meyers Manx.
• Components: Fits EMPI, Gene Berg, and CB Performance oil pumps and filter brackets with 1/2 NPT threading.

SPECS

• Part Number: 00-9239-0.
• Material: Heavy-Duty Machined Brass.
• Fitting Angle: 90 Degree Elbow.
• Thread Size: 1/2-inch NPT (National Pipe Thread).
• Hose Interface: 1/2-inch Barb for internal diameter (ID) oil hoses.
• Quantity: Sold as a 2-Piece Pack.
• Compatibility: Compatible with all standard automotive oils and synthetic fluids.
• Finish: Natural Brass.

PRO TIPS

Tip 1: Proper Thread Sealing

When installing NPT (tapered) fittings into an aluminum oil pump or filter bypass, it is vital to use a high-quality thread sealant. While Teflon tape is common, many master builders prefer a liquid PTFE thread sealant for oil systems. If you choose tape, ensure you leave the first two threads bare to prevent stray bits of tape from entering the oil galley and clogging your lifters or bearings. Always wrap the tape in the direction of the threads so it doesn''t unravel as you tighten the fitting into the port.

Tip 2: Managing Hose Stress and Kinks

The primary advantage of a 90-degree fitting is the ability to route hoses away from hot exhaust headers or moving suspension components. When installing your 1/2-inch oil hose onto the barb, make sure there is enough slack so that the hose is not "pulling" on the fitting. Use a high-quality stainless steel worm-gear clamp or a constant-tension clamp, and position it just behind the barb''s largest ridge. This ensures that even as the hose softens from engine heat, it will remain locked onto the brass fitting under pressure.

Tip 3: Avoid Over-Tightening in Aluminum

Brass is harder than the cast aluminum used in most VW oil pumps and engine cases. Because NPT threads are tapered, they create a seal by wedging into the port. It is very easy to over-torque these fittings and crack your oil pump housing or engine case. Tighten the fitting until it is snug and oriented in the correct direction, but do not force it to "bottom out." If you have a minor weep, it is better to remove the fitting and re-apply sealant than to risk splitting an expensive aluminum casting by applying excessive leverage with a long wrench.
