Autometer 2-5/8 Ultra-Lite Wa

OVERVIEW

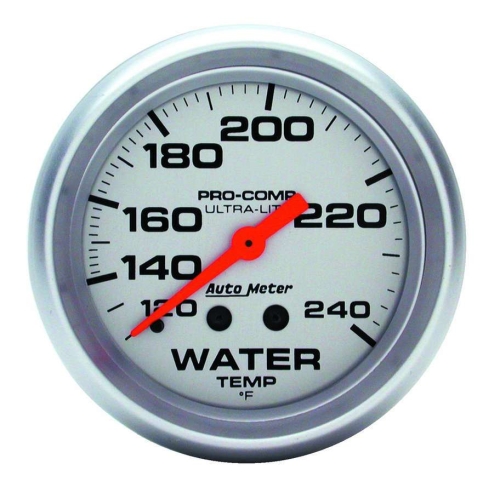

When it comes to monitoring your engine''s vitals, there is no name more trusted in the world of high-performance racing and custom air-cooled builds than AutoMeter. The Ultra-Lite series has become an industry standard for its lightweight aluminum construction and unmistakable silver-face aesthetics that perfectly complement both classic and modern VW interiors. This 2-5/8 inch mechanical water temperature gauge provides the precision and immediate response that enthusiasts demand. Unlike electric gauges that rely on sending units and electrical resistance, this mechanical gauge uses a bourdon tube movement and a capillary line to deliver a direct, physical reading of your engine''s thermal state, ensuring you have the most accurate data possible when you are pushing your flat-four or water-cooled conversion to the limit.

The AutoMeter ATM4433 is specifically designed for those who prefer the larger 2-5/8 inch format, which offers superior visibility compared to standard 2-1/16 inch gauges. This is particularly crucial for dune buggy owners or off-road racers where vibration and high-speed maneuvers make smaller dials difficult to read at a glance. The brushed aluminum dial face, matched with a silver anodized bezel, provides a clean, professional look that screams performance. While labeled as a water temperature gauge, the 120 to 240 degree Fahrenheit range makes this an exceptionally popular choice for air-cooled VW owners looking to monitor oil temperatures, as it covers the critical operating range of a Type 1 or Type 4 engine perfectly. Whether you are cruising the strip in a Cal-Look Beetle or navigating the dunes in a Manx-style buggy, this gauge provides the peace of mind that only a mechanical AutoMeter instrument can deliver.

FITMENT

This is a universal high-performance gauge that can be adapted to a wide variety of vehicles. It is particularly popular for the following Volkswagen and off-road applications:

• Volkswagen Beetle: All years (requires custom dash or mounting bracket).
• Volkswagen Karmann Ghia: All years (ideal for center console mounting).
• Volkswagen Bus (Type 2): Early Split Window and Late Bay Window models.
• Volkswagen Type 3: Squareback, Fastback, and Notchback models.
• Volkswagen Thing (Type 181): Perfect for rugged, open-cabin environments.
• Dune Buggies & Sand Rails: Works with all tubular frames and fiberglass bodies using 2-5/8 inch mounting holes.
• VW-Based Trikes: Provides high visibility in open-air cockpit configurations.
• Water-Cooled Conversions: Ideal for Vanagons or Beetles running Subaru or Ford EcoTec swaps.

SPECS

• Product Number: ATM4433
• Series: Ultra-Lite
• Gauge Diameter: 2-5/8 Inches (66.7mm)
• Gauge Type: Mechanical
• Temperature Range: 120 - 240 Degrees Fahrenheit
• Dial Color: Brushed Aluminum (Silver)
• Bezel Color: Silver Anodized
• Tubing Included: 12 Feet of Capillary Tubing
• Fitting Included: 1/2 Inch NPT Adapter / Fitting
• Movement: Full Sweep Mechanical Bourdon Tube
• Lighting: Incandescent (Incudes Red and Green Bulb Covers)

PRO TIPS FROM THE SHOP

Tip 1: Careful Capillary Line Routing

Since this is a mechanical gauge, it utilizes a 12-foot capillary tube filled with a volatile liquid. It is absolutely vital that you never kink, cut, or crimp this line during installation. If the line is severed, the gauge is permanently ruined and cannot be repaired. When routing the line from your engine case or radiator through the firewall of your VW, always use a rubber grommet to prevent the metal edges of the body from vibrating against the line. We recommend coiling any excess line in a safe, hidden location rather than trying to shorten it, as the system is factory-sealed for accuracy.

Tip 2: Optimal Sensor Placement for Air-Cooled Engines

If you are using this gauge to monitor oil temperature in an air-cooled VW engine, placement of the bulb is key. Many builders use a "T" fitting at the oil pressure switch location, but for the most accurate readings, we recommend using an oil taco or a specialized sump plate adapter. This ensures the probe is in the direct flow of the oil. Remember that the included 1/2 inch NPT fitting may require an adapter (such as a 1/2 inch NPT to 10mm or 1/8 inch NPT) depending on your specific VW oil relief or gallery plug setup. Always use a small amount of thread sealant, but ensure the probe itself makes good contact with the fluid.

Tip 3: Gauge Mounting and Vibration Dampening

The 2-5/8 inch gauge is larger and heavier than standard gauges, which means it puts more stress on your dashboard or mounting bracket. In high-vibration environments like a sand rail or a stiffly-sprung street Beetle, we recommend using a rubber-lined mounting bracket or adding a small amount of foam tape around the bezel seating area. This prevents the silver anodized bezel from rattling against the metal dash and helps protect the internal bourdon tube movement from extreme shocks. Additionally, take advantage of the included red and green bulb covers to match your existing dash illumination for a factory-custom look.
