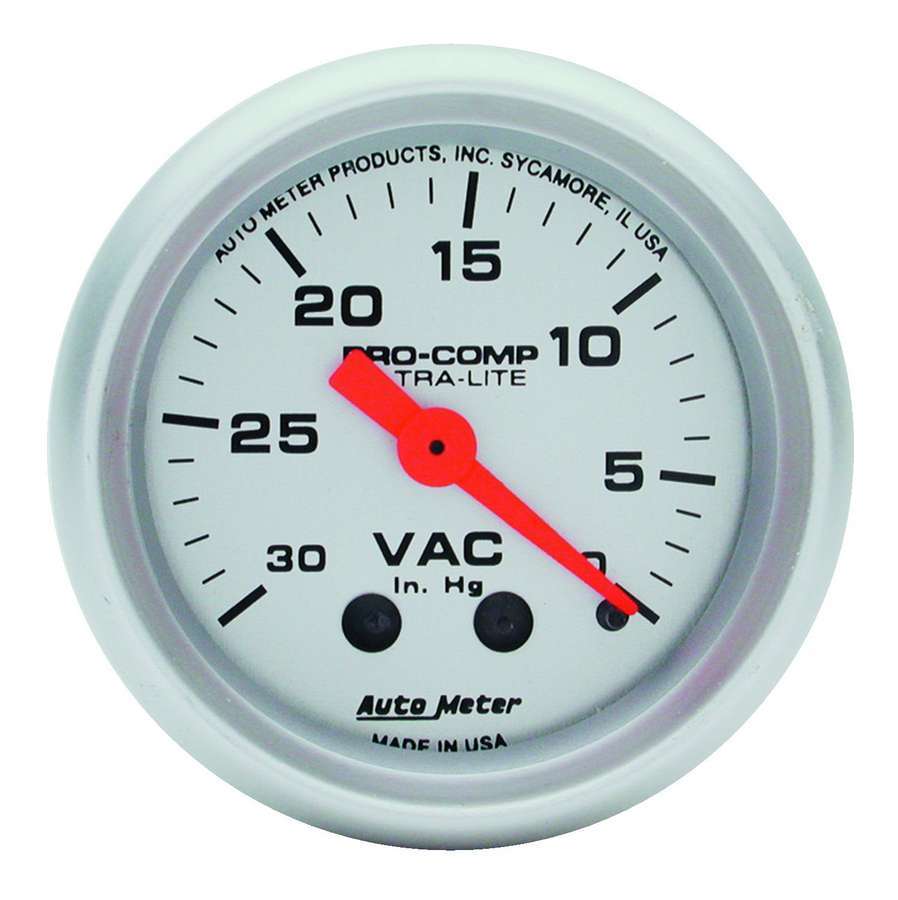

Autometer 2-1/16 Ultra-Lite V

OVERVIEW

When you''re pushing a high-performance air-cooled engine to its limits, precision isn''t just a luxuryit''s a necessity. The AutoMeter Ultra-Lite series has long been the gold standard in motorsports, and the 2-1/16 inch vacuum gauge (ATM4384) brings that competitive edge directly to your Volkswagen dashboard. Designed with a lightweight aluminum construction, this gauge features a stunning satin anodized face and a high-contrast red fluorescent pointer that ensures lightning-fast readability even during high-speed maneuvers or night driving. For the air-cooled enthusiast, this isn''t just another accessory; it''s a vital diagnostic tool that provides real-time data on your engine''s internal health, allowing you to monitor manifold pressure with the same accuracy used by professional race teams across the globe.

Whether you are running a stock 1600cc upright engine or a fully built, dual-carbureted stroker, understanding your engine''s vacuum levels is the secret to perfect tuning and fuel efficiency. The ATM4384 mechanical vacuum gauge offers a 0-30 in. Hg range, giving you the high-resolution feedback needed to identify vacuum leaks, sticky valves, or late ignition timing before they lead to costly repairs. Its silver-on-silver aesthetic fits perfectly in custom Beetle dash pods, Karmann Ghia center consoles, or sand rail gauge panels, providing a timeless "pro-street" look that complements the rugged nature of a vintage Volkswagen. At Appletree Auto, we know that reliability is key, and AutoMeter''s legendary mechanical movements are engineered to withstand the vibrations and harsh environments common in off-road dune buggies and high-performance street cars alike.

FITMENT

This universal 2-1/16 inch (52.4mm) gauge is designed for seamless integration into a wide variety of air-cooled Volkswagen applications and custom builds, including:

• Volkswagen Type 1 Beetle: 1949 through 1979 (Standard and Super Beetle).
• Volkswagen Type 2 Bus/Transporter: 1950 through 1979 (Split Window and Bay Window).
• Volkswagen Type 3 (Squareback, Fastback, Notchback): 1961 through 1973.
• Volkswagen Karmann Ghia: 1955 through 1974.
• Volkswagen Thing (Type 181): 1973 through 1975.
• Custom Applications: Ideal for Sand Rails, Dune Buggies, Manx-style bodies, and trikes using VW-based powerplants.
• Mounting: Fits standard 2-1/16 inch gauge pods, pillars, or dashboard cutouts.

SPECS

Detailed technical specifications for the AutoMeter ATM4384 Ultra-Lite Vacuum Gauge:

• Gauge Diameter: 2-1/16 inch (52.4mm).
• Gauge Type: Mechanical Vacuum.
• Scale Range: 0-30 in. Hg (Inches of Mercury).
• Series: Ultra-Lite.
• Face Color: Silver / Satin Anodized Aluminum.
• Bezel Material: Brushed Aluminum.
• Pointer Color: Fluorescent Red.
• Lighting: Incandescent perimeter lighting (includes red and green bulb covers for custom color matching).
• Movement: Precision Bourdon Tube for maximum durability.
• Line Connection: 1/8 inch NPT male fitting on the back of the gauge.
• Included Hardware: 1/4 inch NPT adapter, 1/8 inch NPT adapter, T-fitting, and 10 feet of nylon vacuum tubing.
• Weight: Approximately 0.55 lbs.

PRO TIPS

1. Diagnosing Engine Health with Vacuum Readings

As an air-cooled specialist, I always tell customers that a vacuum gauge is like a stethoscope for your VW engine. For a healthy 1600cc to 2332cc engine at idle, you should see a steady needle between 15 and 22 in. Hg. If the needle is vibrating rapidly, you might be looking at worn valve guides or a head gasket leak between cylinders. If the reading is consistently low, check for vacuum leaks at the intake manifold boots or carb gasketscommon culprits on dual-carb setups that cause "popping" and poor low-end performance. Using this gauge to find the highest steady vacuum reading while adjusting your carburetor''s idle mixture screws is the fastest way to achieve a smooth, crisp idle.

2. Proper Vacuum Line Routing in VW Chassis

When installing the ATM4384 in a Beetle or Bus, the distance from the engine to the dash is significant. While the included nylon tubing is high quality, it is critical to route it away from the high-heat areas of the cylinder heads and exhaust. Never zip-tie the vacuum line tightly against the frame horns or heater channels, as heat-induced softening of the line can cause it to collapse under vacuum, leading to false or sluggish readings. For the most accurate signal, tap your vacuum source at the intake manifold below the carburetor. If you are running dual Weber IDFs or Dellorto DRLAs, ensure you tap into a port that provides a "manifold" vacuum signal rather than a "ported" vacuum signal for true idle monitoring.

3. Optimizing Visibility and Aesthetics

The Ultra-Lite series is famous for its silver face, which can sometimes reflect sun glare in open-top vehicles like dune buggies or convertibles. To maximize the utility of your ATM4384, I recommend installing it in a slightly recessed gauge pod or using the included green bulb cover to match the classic VDO green lighting found in original VW dashboards. This creates a cohesive, period-correct look while still providing modern accuracy. Furthermore, ensure your ground wire for the internal light is attached to a clean, paint-free metal surface on the chassis to prevent flickering, which is a common issue in vintage VW electrical systems with aging ceramic fuses.
