Autometer 2-1/16 Ultra-Lite O

OVERVIEW

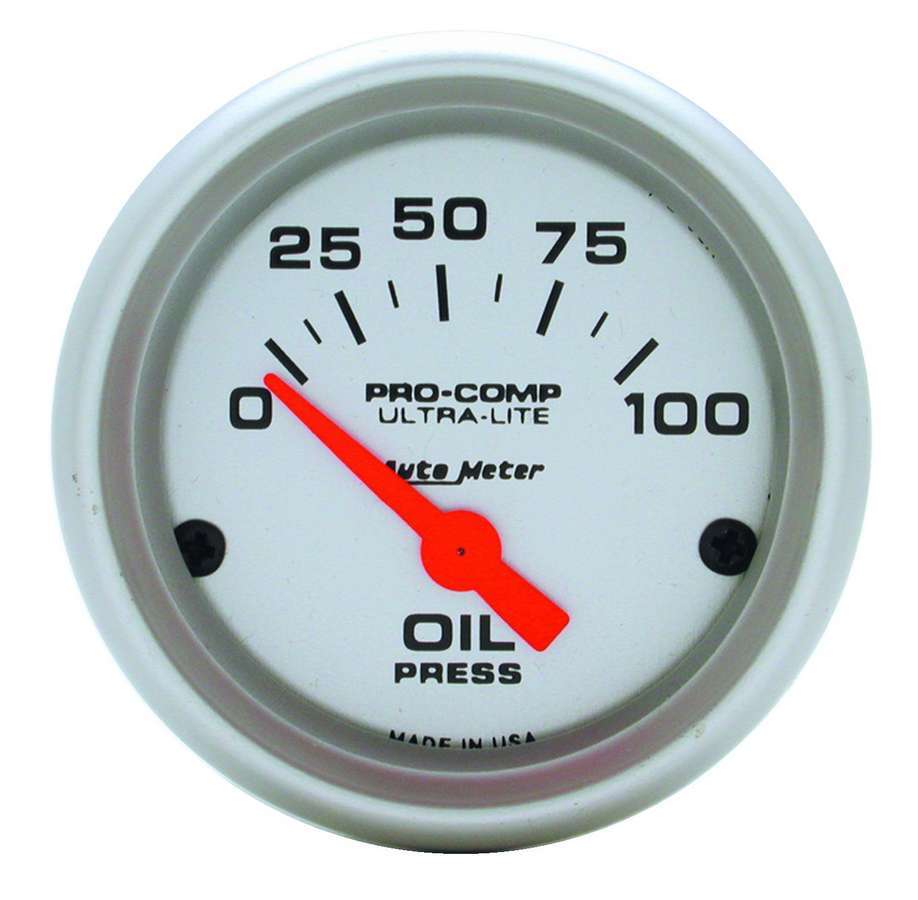

In the world of air-cooled Volkswagens, your oil is doing double duty as both a lubricant and a primary cooling agent. Monitoring your oil pressure isn''t just a luxury; it''s a requirement for anyone serious about the longevity of their engine. The AutoMeter Ultra-Lite 2-1/16 Inch Electric Oil Pressure Gauge (ATM4327) provides the precision and rapid response needed to keep tabs on your Type 1, Type 2, or Type 4 powerplant. Featuring the iconic silver face, brushed aluminum bezel, and high-contrast red pointer, this gauge delivers a "competition" look that has been a staple in the performance industry for decades. Whether you are cruising the strip in a Cal-Look Beetle or bouncing through the dunes in a high-horsepower sand rail, this gauge offers the reliability that professional racers and weekend enthusiasts demand.

This specific Ultra-Lite model utilizes a rugged air-core meter movement, providing the accuracy of a mechanical gauge with the safety and convenience of an electric installation. By using a remote-mounted sending unit, you eliminate the need to run high-pressure oil lines into the cockpit of your vehicle, preventing potential leaks and messy cleanup inside your pristine interior. The 0-100 PSI range is perfectly calibrated for the VW platform, allowing you to monitor high-pressure cold starts as well as critical low-pressure situations when your oil is up to temperature. When you choose AutoMeter, you are investing in a piece of equipment that is engineered to withstand the high-vibration environment of a modified flat-four engine, ensuring that you always have an accurate window into your engine''s health.

FITMENT

This 2-1/16 inch (52.4mm) gauge is a universal fitment component that is commonly installed in the following air-cooled applications:

• Volkswagen Beetle (All Years): Fits perfectly in standard dash cutouts or aftermarket under-dash pods.
• Volkswagen Super Beetle (1971-1979): Ideal for center console mounting or custom dashboard layouts.
• Volkswagen Bus / Type 2 (1950-1979): Essential for monitoring heavy-duty cooling in campers and transporters.
• Volkswagen Karmann Ghia (All Years): Provides a sleek, performance-oriented upgrade to the factory instrumentation.
• Volkswagen Type 3 (Squareback, Fastback, Notchback): A vital addition for modified high-displacement pancake engines.
• Volkswagen Thing / Type 181: Rugged enough for off-road use and open-cockpit environments.
• Custom Sand Rails and Dune Buggies: The industry standard for tube-chassis performance vehicles.
• Manx-style Fiberglass Buggies: Easy to mount in standard 2-1/16 inch gauge holes in fiberglass dashes.

SPECS

• Product Line: AutoMeter Ultra-Lite Series
• Gauge Type: Oil Pressure (Electric)
• Diameter: 2-1/16 Inch (52.4mm)
• Pressure Range: 0-100 PSI
• Sweep: Short Sweep (90 Degree)
• Bezel Style: Brushed Aluminum Finish
• Face Color: Silver with Black Numerals
• Pointer Color: Fluorescent Red
• Movement: Rugged Air-Core Meter
• Sending Unit: Includes 1/8 Inch NPT Electric Sender
• Lighting: Incandescent Perimeter Lighting (Includes Red and Green Bulb Covers)
• Voltage: 12 Volt Negative Ground Systems
• Mounting Hardware: Includes U-bracket and mounting nuts

PRO TIPS

1. Selecting the Best Sending Unit Location

On a standard air-cooled VW engine block, the most common location for the sending unit is the stock oil pressure switch port located just behind the distributor. However, because the AutoMeter electric sender is significantly larger than the stock "idiot light" switch, it may not clear the distributor or the engine tin without modification. We highly recommend using a "T-fitting" or a remote relocation hose. This allows you to retain your factory warning light (which is your first line of defense) while providing a secure, vibration-dampened mounting point for your new AutoMeter sender. Always use a small amount of thread sealant, but avoid using Teflon tape on the sender threads, as the sender requires a clean metal-to-metal ground through the engine block to function correctly.

2. Ensuring a Clean Ground and Stable Power

Electric gauges are highly sensitive to voltage fluctuations and poor grounding. For the most accurate needle movement and to prevent "needle flutter," do not simply ground the gauge to the dashboard frame. Instead, run a dedicated ground wire from the gauge back to a central ground terminal or directly to the chassis. Additionally, ensure that the 12V switched power source is "clean" and not shared with high-draw components like your windshield wiper motor or a heater fan. A stable power supply ensures that the 0-100 PSI reading remains consistent, even when you have your headlights or other accessories turned on during a night drive.

3. Understanding Your VW''s Pressure Readings

Don''t panic when you see your oil pressure drop significantly once the engine reaches operating temperature. On a healthy air-cooled VW engine using standard weight oil (like 15W-40 or 20W-50), it is perfectly normal to see 40-60 PSI during a cold start, which may drop to 10-15 PSI at a hot idle. The "Golden Rule" for the VW flat-four is generally 10 PSI for every 1000 RPM once the oil is hot. If you notice your pressure failing to rise with engine RPM, or if it stays below 5 PSI at idle, the AutoMeter gauge is doing its job by warning you of a potential bearing issue, a failing oil pump, or excessively high oil temperatures before catastrophic damage occurs.
