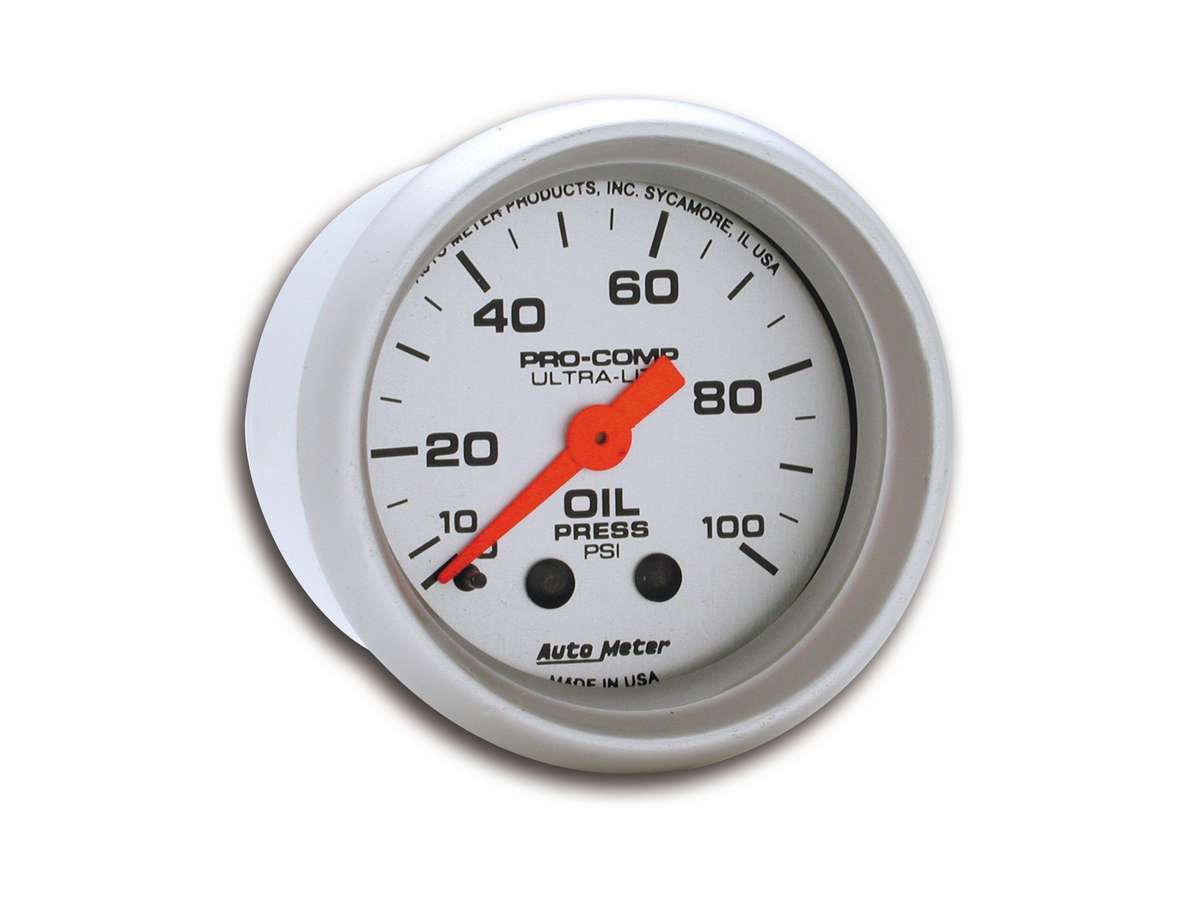

Autometer 2-1/16 Ultra-Lite O

OVERVIEW

Monitoring your oil pressure is the single most important task for any air-cooled Volkswagen enthusiast, and the AutoMeter 2-1/16 Ultra-Lite Mechanical Oil Pressure Gauge (ATM4321) is the gold standard for precision and reliability. In a high-performance VW engine, heat is the enemy, and your oil is the lifeblood that keeps internal temperatures stable and moving parts lubricated. Unlike electric gauges that rely on sending units and electrical resistance, this mechanical gauge provides a direct, real-time reading of your engine''s oil pressure by plumbing the lubricant directly to the back of the instrument. The Ultra-Lite series features a signature brushed aluminum face and a silver anodized bezel that perfectly complements the vintage-meets-modern aesthetic of a custom Beetle, Ghia, or high-performance Sand Rail. When you are pushing your air-cooled flat-four to the limit, you need a gauge that reacts instantly to fluctuations, and AutoMeter delivers that racing-grade accuracy that has made them a staple in the automotive industry for decades.

At Appletree Automotive, we understand that your dash layout is a reflection of your build''s quality. This 2-1/16 inch (52.4mm) gauge fits most standard gauge pods and dashboard cutouts, making it a seamless addition to your cockpit. The 0-100 PSI range is ideal for air-cooled applications, allowing you to monitor cold-start high pressure as well as critical low-pressure warnings when the oil is hot and thinning out at idle. The kit comes complete with 10 feet of nylon tubing and the necessary 1/8 inch NPT fittings, ensuring you have the hardware required to get the job done right. Whether you are building a daily driver that needs extra insurance or a weekend warrior destined for the drag strip, the Ultra-Lite series provides the high-contrast visibility and rugged durability needed to survive the vibrations and demands of the VW lifestyle. Don''t leave your engine''s health to chance; equip your ride with the professional-grade monitoring it deserves.

FITMENT

This gauge is a universal 2-1/16 inch (52.4mm) instrument designed to fit into any standard gauge hole or mounting cup. While universal in design, it is a favorite for the following Volkswagen and off-road applications:

• Volkswagen Type 1: Beetle, Bug, and Super Beetle (All Years).
• Volkswagen Type 2: Bus, Transporter, Kombi, and Microbus (1950-1979).
• Volkswagen Type 3: Fastback, Squareback, and Notchback.
• Volkswagen Karmann Ghia: All Years.
• Volkswagen Type 181: The Thing.
• Custom Off-Road: Dune Buggies, Sand Rails, Manx-style bodies, and Baja Bugs.
• Custom Builds: Any vehicle requiring a 0-100 PSI mechanical oil pressure reading.

SPECS

Detailed technical specifications for the AutoMeter Ultra-Lite Oil Pressure Gauge:

• Product Brand: AutoMeter.
• Product Line: Ultra-Lite.
• Part Number: ATM4321.
• Gauge Diameter: 2-1/16 inches (52.4mm).
• Gauge Type: Mechanical.
• Pressure Range: 0-100 PSI.
• Dial Color: Brushed Aluminum (Silver).
• Bezel Color: Silver Anodized.
• Pointer Color: High-Contrast Orange.
• Lighting: Incandescent around-the-dial (Includes Red and Green bulb covers).
• Tubing Included: 10 feet of Nylon Tubing.
• Fittings Included: 1/8 inch NPT compression fittings.
• Adapters Included: 1/4 inch NPT adapter.

PRO TIPS

Tip 1: Upgrade to Copper Tubing for Longevity

While the included 10-foot nylon tubing is functional for many applications, we highly recommend upgrading to a copper line kit for air-cooled VWs. The heat generated by the engine, especially near the cylinder heads and exhaust, can eventually make nylon lines brittle or prone to melting if they aren''t routed perfectly. Copper lines offer superior heat resistance and are much less likely to develop a leak over time, providing peace of mind that your oil stays inside the engine and out of your interior.

Tip 2: Use the Correct Case Adapter

Standard VW engine cases are usually tapped for a M10x1.0 metric thread for the oil pressure light sending unit. Since this AutoMeter gauge uses 1/8 inch NPT fittings, you will need a metric-to-NPT adapter or a "VDO-style" T-fitting to run both your dash warning light and this mechanical gauge simultaneously. Never force an NPT fitting into a metric hole, as it will strip the soft magnesium or aluminum case threads. Always use a small amount of thread sealant on the NPT side, but avoid getting it inside the line where it could clog the gauge or engine galleries.

Tip 3: Routing and Bleeding the Line

When routing your oil line from the engine to the dash, ensure there are no sharp kinks or areas where the line can rub against the chassis. Use rubber grommets whenever passing through the firewall or tinware to prevent vibration-induced leaks. To get the most accurate and steady reading, it is helpful to have a "vertical" run where possible to help air bubbles find their way out, though mechanical gauges are generally self-bleeding. After installation, start the engine and check both the back of the gauge and the engine block connection for any signs of weeping before you head out for a drive.
