Autometer 2-1/16 Sport-Comp O

OVERVIEW

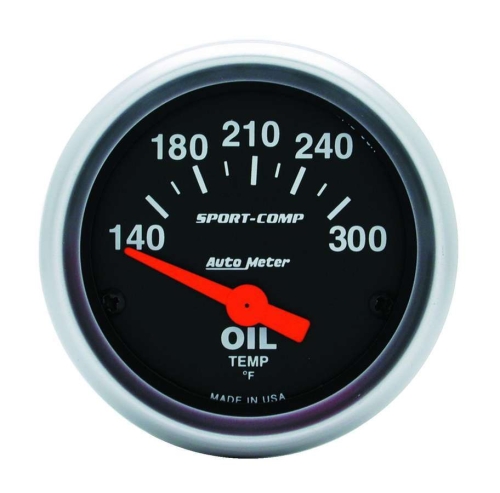

Monitoring your engine''s thermal health is the single most critical task for any air-cooled Volkswagen enthusiast, and the AutoMeter 2-1/16 Sport-Comp Oil Temperature Gauge (ATM3348) is the gold standard for precision and reliability. In a Type 1 or Type 4 engine, your oil is doing double dutyit isn''t just lubricating internal components, it is responsible for a massive portion of the heat dissipation that keeps your heads from warping and your cases from stretching. This Sport-Comp series gauge features the iconic black face, white digits, and silver bezel that has defined the look of performance cockpits for decades. Whether you are cruising the coastline in a Karmann Ghia or pushing a high-compression stroker motor through the dunes, having a real-time, accurate reading of your oil temperature is the difference between a successful weekend and an expensive engine rebuild.

The ATM3348 utilizes AutoMeter''s legendary air-core meter movement, providing the rugged durability required to withstand the vibrations of a high-revving VW flat-four. As a short-sweep electric gauge, it offers a clean installation without the need to run messy oil lines into the passenger compartment. This kit is remarkably comprehensive, arriving with a 1/8-inch NPT sender and multiple adapters to ensure you can find the perfect mounting point on your engine block, oil pump cover, or specialized sump plate. When you choose AutoMeter from Appletree Automotive, you are investing in a competition-proven instrument that provides the "peace of mind" every driver needs when the summer heat begins to climb and the oil temperatures start to rise.

FITMENT

This gauge is a universal 2-1/16 inch (52.4mm) instrument designed to fit standard gauge pods and dashboard cutouts. It is ideal for the following air-cooled applications:

• Volkswagen Beetle: All years and models (1946-1979).
• Volkswagen Super Beetle: 1971-1979.
• Volkswagen Karmann Ghia: 1955-1974.
• Volkswagen Type 2 Bus / Transporter / Westfalia: 1950-1979.
• Volkswagen Type 3 (Squareback, Fastback, Notchback): 1961-1973.
• Volkswagen Thing (Type 181): 1973-1975.
• Custom Builds: Meyer''s Manx, Sand Rails, Dune Buggies, and Baja Bugs.
• Note: Requires a 12-volt electrical system for operation.

SPECS

• Product Part Number: ATM3348
• Gauge Diameter: 2-1/16 inches (52.4mm).
• Temperature Range: 140 to 300 Degrees Fahrenheit.
• Gauge Type: Short Sweep Electric.
• Movement Type: Precision Air-Core.
• Face Color: Black with White Numerals.
• Bezel Color: Brushed Silver / Aluminum.
• Pointer Color: High-Contrast Orange.
• Sender Included: Yes (1/8 inch NPT thread).
• Adapters Included: 3/8 inch NPT and 1/2 inch NPT fittings.
• Lighting: Incandescent (includes red and green bulb covers for custom backlighting).
• Voltage: 12V DC compatible.

PRO TIPS

Choose Your Sender Location Wisely

In the air-cooled VW world, where you place the sender is just as important as the gauge itself. For the most accurate "bulk" oil temperature reading, many builders prefer to mount the sender in the oil pressure relief valve bore using a specialized adapter or in a "taco plate" style oil sump. Avoid mounting the sender too close to the exhaust headers, as radiant heat can "heat-soak" the sender and provide a falsely elevated reading. If you are using a full-flow oil system with an external cooler, mounting the sender in the return line will show you how well your cooling system is performing, while mounting it in the sump shows you the true temperature of the oil being fed into your bearings.

Ensure a Flawless Electrical Ground

Electric gauges are highly sensitive to resistance in the wiring. To prevent "bouncing" needles or inaccurate readings, always ensure the sender has a clean, metal-to-metal ground. If you are using Teflon tape on the sender threads, be careful not to over-wrap it; too much tape can insulate the sender from the engine block, breaking the ground circuit. We recommend using a small amount of liquid thread sealer instead. Furthermore, always run a dedicated ground wire from the gauge back to a solid chassis ground point rather than daisy-chaining multiple accessories together, which can cause voltage drops and signal interference.

Understand Your Temperature Thresholds

Knowing how to read your AutoMeter gauge is the key to engine longevity. For a typical VW Type 1 engine, a "normal" operating temperature is generally between 180F and 210F. If you see the needle consistently creeping past 230F, it is time to back off the throttle or investigate your cooling tin, belt tension, or oil cooler airflow. Remember that modern synthetic oils can handle higher temperatures than traditional mineral oils, but your VW''s magnesium or aluminum engine case will still expand and soften if kept at extreme temperatures for too long. Treat 250F as your "danger zone" where you should pull over and let the engine idle to cool down.
