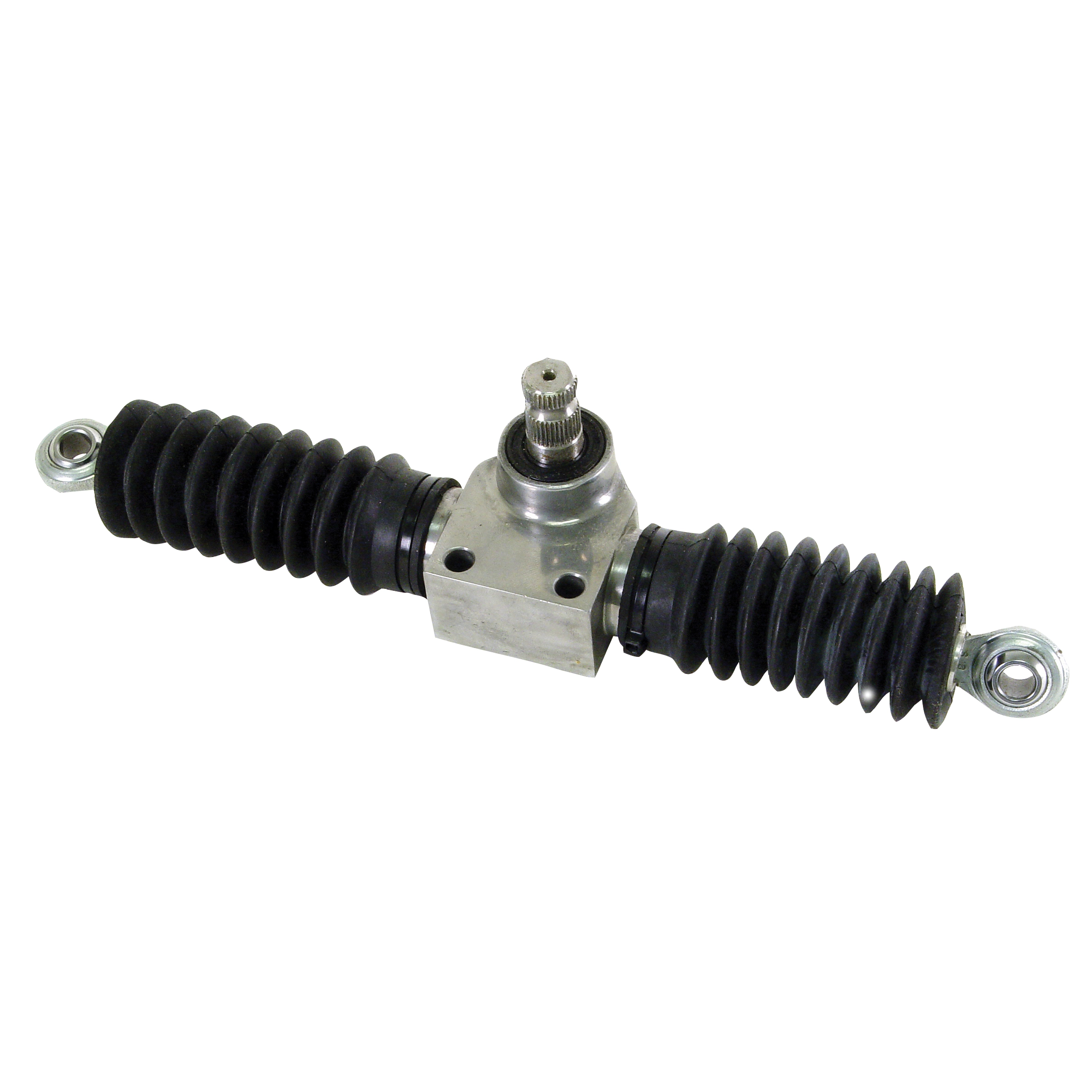

8.5 Inch Rack Pinion, Billet Body

Product Overview: The Ultimate Steering Upgrade for Off-Road Precision

When it comes to mastering the dunes or navigating technical wooded trails, your steering system is the most critical link between your intent and the vehicle''s reaction. The Latest Rage 8.5-Inch Billet Body Rack and Pinion represents the pinnacle of steering technology for the air-cooled community and off-road enthusiasts alike. Unlike traditional cast iron steering boxes that are prone to "slop" and internal wear over decades of use, this "Thin Line" billet unit is CNC-machined from high-grade aluminum to provide a lightweight yet incredibly rigid housing. This rigidity ensures that every degree of input at the steering wheel translates directly to the spindles, eliminating the vague center-feel common in aging Volkswagens and custom sand rails. By utilizing a compact 8.5-inch footprint, this rack allows for maximum clearance in tight front-end configurations while maintaining the structural integrity required to handle the high-torque loads of oversized off-road tires.

The "Thin Line" design is specifically engineered for builders who demand a clean, professional aesthetic without sacrificing performance. The billet body is not just for looks; it acts as a heat sink for the internal components and provides a superior mounting surface that resists flexing under extreme stress. This rack is designed to work with 5/16-inch Heim joints, allowing for a wide range of custom tie-rod configurations and steering geometries. Whether you are building a lightweight sand rail from a bare Berrien frame or converting a Baja Bug to a more responsive steering setup, this rack and pinion provides the mechanical advantage and durability needed to survive the harshest environments. It is the gold standard for those who believe that steering should be precise, predictable, and bulletproof.

Vehicle Fitment and Compatibility

This 8.5-inch billet rack and pinion is a universal-style component designed primarily for custom air-cooled VW-based chassis and off-road vehicles. While it is not a "bolt-on" for a stock Beetle beam, it is the primary choice for the following applications:

• Sand Rails & Dune Buggies: Perfect for Chenowth, Berrien, and custom tube-chassis rails.
• Baja Bugs: Ideal for vehicles converted to custom front ends or long-travel beam setups.
• Manx-Style Fiberglass Buggies: A popular upgrade for builders moving away from the standard VW steering box.
• Custom Off-Road Projects: Suitable for any lightweight vehicle requiring a compact, high-strength steering solution.
• Woods Buggies: Durable enough to withstand the constant impacts of tight, technical trail riding.

Technical Specifications

• Body Material: High-strength CNC-machined 6061-T6 Billet Aluminum.
• Overall Length: 8.5 Inches (Thin Line design).
• Output Connection: Designed for 5/16-inch Heim joints (Rod Ends).
• Internal Construction: Precision-ground steel rack gear and pinion gear for smooth operation.
• Housing Type: Compact "Thin Line" profile for maximum clearance.
• Finish: Machined billet aluminum for superior corrosion resistance and aesthetics.
• Mounting: Standard two-bolt mounting pattern for off-road steering brackets.
• Weight: Approximately 2.25 lbs, significantly lighter than cast-iron alternatives.

Pro Tips from the Appletree Specialist

1. Master the Geometry to Eliminate Bump Steer

When installing an 8.5-inch rack and pinion, the vertical placement of the rack is just as important as the horizontal centering. You want your tie rods to be as close to parallel with your trailing arms as possible at ride height. If the rack is mounted too high or too low, you will experience "bump steer," where the vehicle darts left or right on its own as the suspension cycles through its travel. Always cycle your suspension from full droop to full compression without the shocks installed to verify that the tires stay straight throughout the entire range of motion. Small adjustments in rack height can make a massive difference in high-speed stability.

2. Proper Heim Joint Maintenance and Selection

This rack is designed to use 5/16-inch Heim joints, which provide a much tighter feel than traditional automotive tie-rod ends. However, because Heim joints are exposed to the elements, they require regular inspection. We recommend using high-quality chromoly rod ends with PTFE liners to ensure longevity. Before every desert season or major trail ride, check for any radial play in the Heims. Even a tiny amount of wear at the rod end can translate into a "wandering" sensation at the steering wheel. If you are running in extremely muddy or sandy conditions, consider using rubber "boots" or seals over the Heims to keep debris out of the spherical bearing.

3. Steering Shaft Alignment and U-Joint Phasing

Because these racks are often used in custom builds, the angle of the steering shaft can be quite steep. Always use high-quality needle-bearing U-joints to connect your steering column to the rack. If you are using two U-joints in your steering shaft, it is absolutely critical that they are "in phase" (the yokes are aligned in the same plane). If they are out of phase, you will feel a noticeable "binding" or "lumpiness" as you turn the wheel. Additionally, ensure that no single U-joint exceeds a 30-degree angle; if your geometry requires a sharper turn, you must use a three-joint system with a support bearing to prevent the steering from locking up under load.
