3 Hole Gauge Panel, Chrome for 2-1/16

OVERVIEW

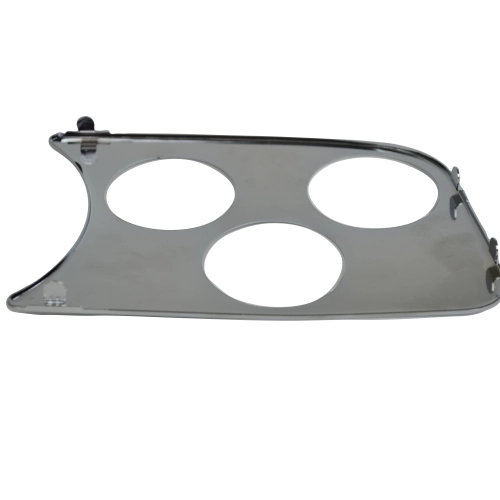

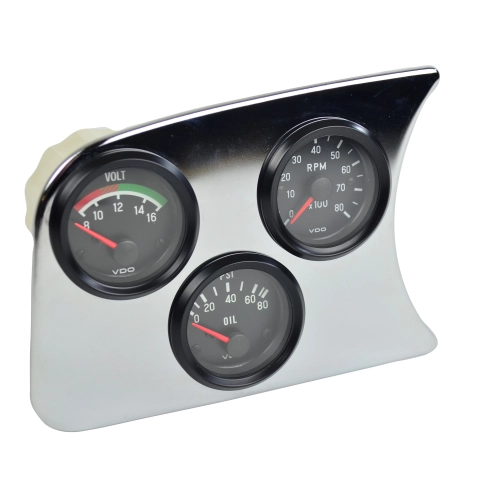

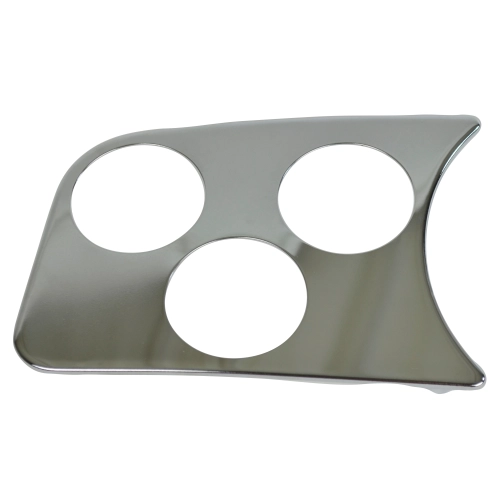

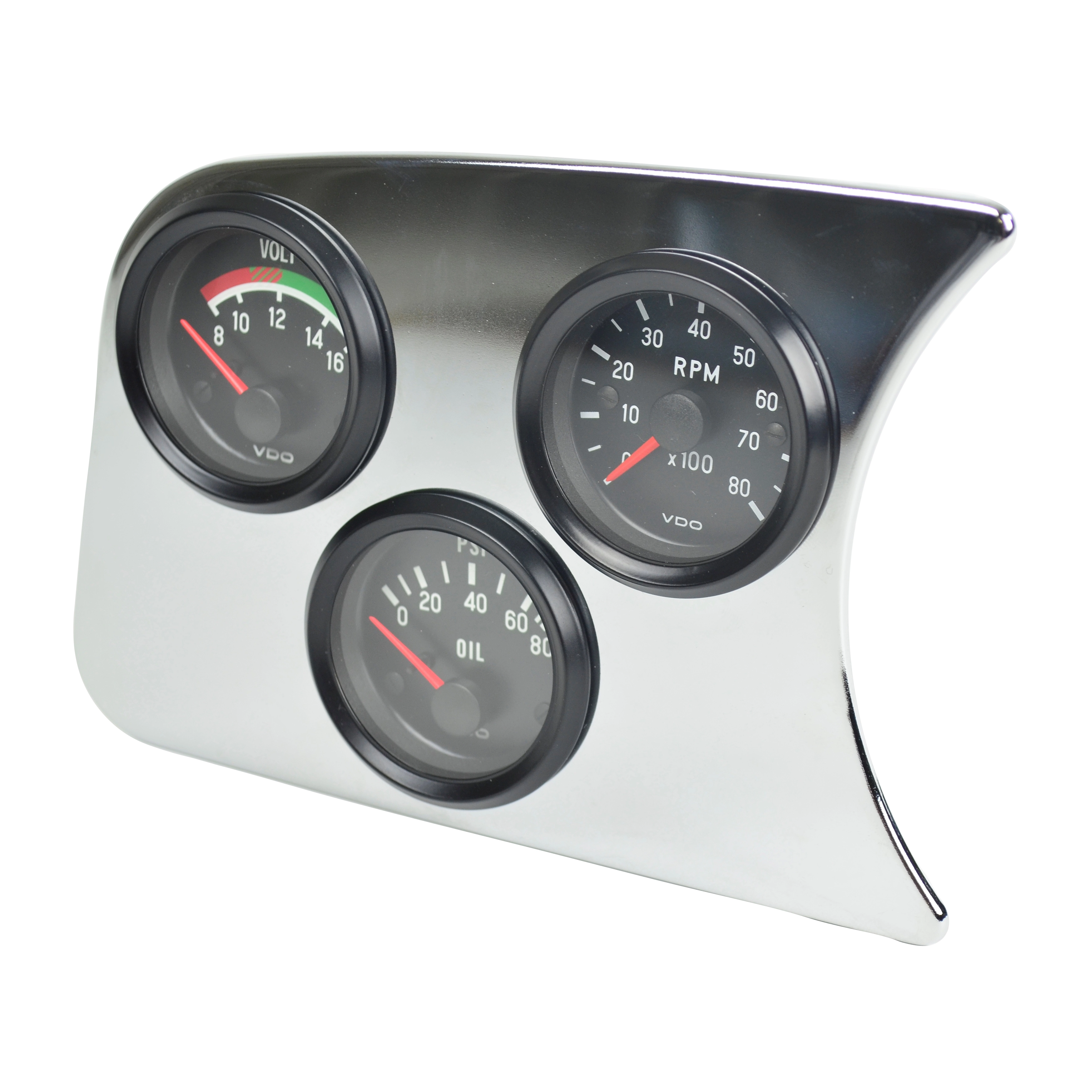

Monitoring your air-cooled engine''s vital signs is not just a luxury; it is a necessity for any serious Volkswagen enthusiast. The EMPI 3 Hole Gauge Panel provides a sleek, professional solution for mounting essential instrumentation without hacking up your original dashboard. Crafted from high-quality steel and finished in a brilliant, mirror-like chrome, this panel is designed to house three 2-1/16 inch (52mm) gauges. Whether you are keeping an eye on oil temperature, oil pressure, or battery voltage, this mount offers a classic look that complements the vintage aesthetic of your Beetle, Ghia, or Bus while providing the structural integrity needed to withstand the vibrations of a high-performance flat-four engine.

This triple gauge console is engineered for versatility and ease of installation. It features a universal under-dash mounting design that allows you to position your gauges exactly where you need them for optimal visibility. The chrome plating is not only for show; it provides a durable layer of protection against corrosion, ensuring your cockpit remains looking sharp for years to come. By grouping your gauges together in this sturdy steel housing, you eliminate the cluttered look of individual pods and create a centralized command center for your VW''s electrical and mechanical systems. It is the perfect upgrade for street cruisers, weekend show cars, and rugged off-roaders who demand both style and functionality from their interior accessories.

FITMENT

This universal 3-hole gauge panel is designed to fit a wide range of air-cooled Volkswagen models and custom applications, including but not limited to:

• Volkswagen Type 1: Standard Beetle, Super Beetle, and Baja Bug (All Years)
• Volkswagen Type 2: Bus, Transporter, Kombi, and Microbus (1950-1979)
• Volkswagen Type 3: Fastback, Squareback, and Notchback (All Years)
• Volkswagen Karmann Ghia: Coupe and Convertible (All Years)
• Volkswagen Type 181: The Thing (All Years)
• Custom Applications: Dune Buggies, Sand Rails, Manx-style bodies, and Kit Cars
• Compatibility: Accommodates all standard 2-1/16 inch (52mm) gauges from VDO, Autometer, Stewart Warner, and EMPI

SPECS

• Brand: EMPI
• Part Number: 14-1002-0
• Material: Heavy-duty stamped steel construction
• Finish: High-luster triple chrome plating
• Hole Diameter: 2-1/16 inches (52mm)
• Number of Holes: 3
• Mounting Style: Under-dash flange or surface mount
• Width: Approximately 7-1/2 inches
• Height: Approximately 3 inches
• Compatibility: Designed specifically for VDO-style 2-1/16 inch tachometers and gauges

PRO TIPS

Tip 1: Ensure Proper Grounding for Accurate Readings

When installing gauges into a chrome-plated steel panel, it is critical to remember that chrome and paint can act as insulators. Many gauges, especially older VDO units, rely on the housing itself to complete the electrical ground circuit. To ensure your needles don''t jump or provide erratic readings, we recommend running a dedicated ground wire from the mounting bracket of each gauge to a clean, unpainted spot on the vehicle''s chassis. Simply relying on the panel''s mounting screws to provide a ground through the dashboard is often insufficient in vintage Volkswagens and can lead to "ghost" readings when your headlights or wipers are turned on.

Tip 2: Prioritize Your Gauge Selection

If you are wondering which three gauges are most critical for an air-cooled engine, the "Big Three" are typically Oil Pressure, Oil Temperature, and Voltmeter (or Cylinder Head Temperature). Since VW engines do not have a water-based cooling system, the oil is your engine''s lifeblood and its primary cooling agent. Monitoring oil temperature allows you to know when to back off the throttle on a hot day, while oil pressure gives you an immediate warning of mechanical issues. A voltmeter is highly recommended for classic cars to monitor the health of your generator or alternator charging system, especially if you have upgraded to high-output audio or lighting.

Tip 3: Optimize Wire Management and Safety

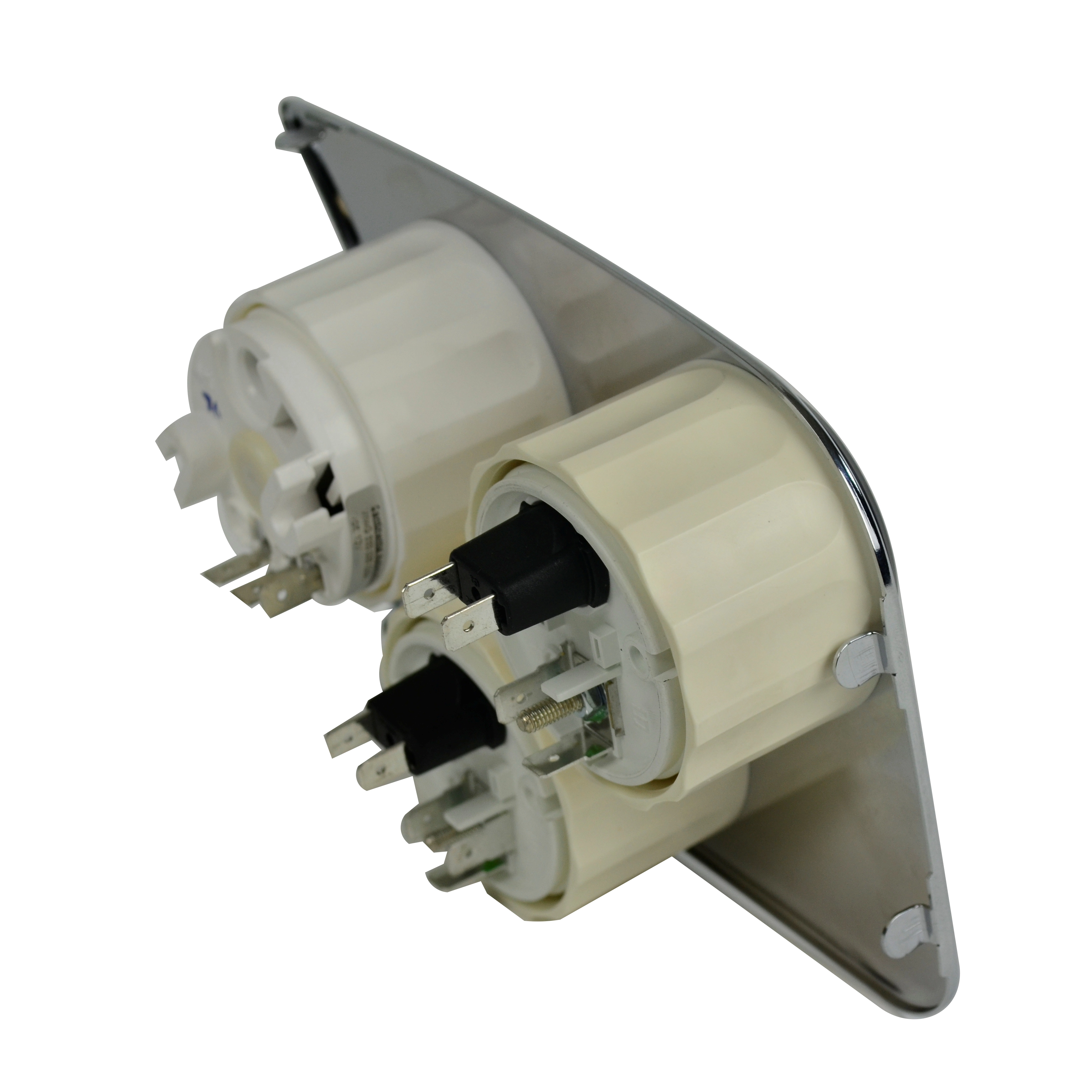

Before final installation, use plastic wire loom or heat shrink tubing to bundle the wires coming from the back of the three gauges. This not only makes for a much cleaner look under your dash but also prevents wires from getting snagged on your feet or the pedal assembly. Make sure to use a grommet if you are passing wires through the firewall to the engine bay to prevent the sharp metal edges from chafing through the insulation. Additionally, always install an inline fuse on the 12V power lead feeding the gauge lights and the gauges themselves; this protects your vintage wiring harness from a potential short circuit behind the panel.
