2-5/8 Vacuum Liquid Filled

OVERVIEW

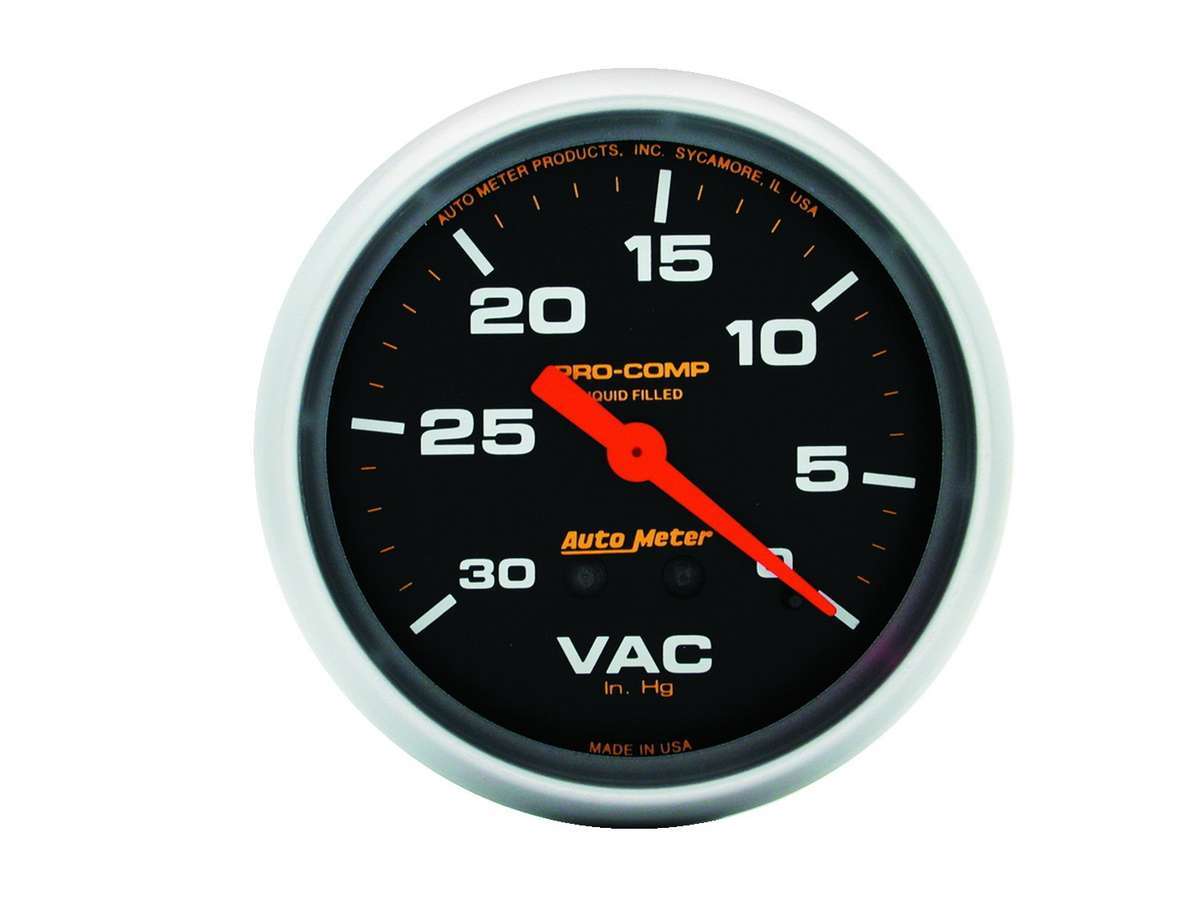

Precision is the heartbeat of any high-performance air-cooled Volkswagen, and nothing provides a clearer window into your engine''s internal health than the AutoMeter Pro-Comp 2-5/8 Inch Liquid Filled Vacuum Gauge (ATM5484). Designed for the serious enthusiast and the professional racer alike, this mechanical gauge offers an instantaneous look at your intake manifold pressure, allowing you to fine-tune your dual-carburetor setups, detect vacuum leaks before they lead to lean-out conditions, and optimize your ignition timing for maximum efficiency. Whether you are cruising the coast in a vintage Karmann Ghia or launching off a dune in a high-horsepower sand rail, having a reliable vacuum reading is essential for protecting your investment and ensuring your Type 1, Type 2, or Type 4 engine is operating at its peak volumetric efficiency. At Appletree Auto, we know that air-cooled engines face unique vibration challenges, and this Pro-Comp series gauge is engineered to handle them with ease.

The standout feature of the ATM5484 is its specialized liquid-filled design, which is a game-changer for the high-vibration environment of a VW flat-four engine. The internal glycerin filling dampens the movement of the needle, eliminating the "needle bounce" often seen in standard mechanical gauges when idling or under heavy load. This results in a rock-steady reading and significantly extends the life of the gauge by lubricating the internal brass movements and protecting them from the harsh harmonics of a performance exhaust or high-lift camshaft. Wrapped in a rugged silver bezel with a high-contrast black face, this 2-5/8 inch gauge is larger than standard 2-1/16 inch units, providing superior visibility when mounted in a custom dash or overhead console. When you choose AutoMeter, you are choosing a legacy of American-made racing heritage that has been the industry standard for decades, ensuring that your Volkswagen''s cockpit looks as professional as it performs.

FITMENT

This universal 2-5/8 inch gauge is designed for custom installation across the entire spectrum of air-cooled and water-cooled Volkswagen vehicles, including but not limited to:

• Volkswagen Beetle: 1950-1979 (Standard and Super Beetle)
• Volkswagen Karmann Ghia: 1955-1974
• Volkswagen Bus / Type 2: 1950-1979 (Split Window and Bay Window)
• Volkswagen Type 3: 1961-1973 (Squareback, Fastback, Notchback)
• Volkswagen Thing / Type 181: 1973-1974
• Custom Applications: Dune Buggies, Sand Rails, Manx-style bodies, and Baja Bugs
• Engine Types: Compatible with all carbureted or fuel-injected engines (requires vacuum source)

SPECS

The AutoMeter ATM5484 is built to withstand the rigors of off-road and street performance with the following technical specifications:

• Gauge Type: Mechanical Vacuum
• Gauge Series: Pro-Comp Liquid Filled
• Gauge Size: 2-5/8 Inches (66.7mm)
• Measurement Range: 0-30 In. Hg (Inches of Mercury)
• Filling Material: Liquid Glycerin (Vibration Dampening)
• Face Color: Black with White Graphics
• Bezel Style: Silver Stainless Steel
• Illumination: Incandescent (Bulb and Socket Assembly Included)
• Included Hardware: 6 feet of Nylon Tubing and 1/4 inch NPT T-fitting
• Fitting Requirements: 1/8 inch NPT male fitting on the back of the gauge

PRO TIPS

1. Selecting the Optimal Vacuum Source

To get the most accurate reading for engine tuning, always tap your vacuum line into a "manifold vacuum" source rather than a "ported vacuum" source. Manifold vacuum is located below the carburetor throttle plates and provides a strong signal at idle, which is critical for diagnosing valve issues or timing problems. If you are running dual Weber or Dellorto carburetors, use a T-fitting to link the vacuum ports of both manifolds to get a balanced average reading. Ensure all connections are secure with small zip ties or hose clamps to prevent "false" lean readings caused by tiny air leaks at the fitting junctions.

2. Diagnosing Engine Health via Needle Movement

A vacuum gauge is more than just a display; it''s a diagnostic tool. A steady reading between 17 and 21 In. Hg at idle generally indicates a healthy, well-timed engine. If you notice the needle vibrating rapidly, it could indicate worn valve guides or a loose intake manifold. If the needle drops significantly when you snap the throttle open and fails to return quickly, your exhaust might be restricted. Learning to "read" the liquid-dampened needle of your AutoMeter gauge can save you thousands of dollars in repairs by catching internal engine wear before it leads to a catastrophic failure on the road or trail.

3. Protecting the Nylon Vacuum Line

The ATM5484 kit includes 6 feet of nylon tubing, which is excellent for most installs, but it must be routed with care in an air-cooled VW. Because the engine is in the rear and the dash is in the front, the line must travel through the center tunnel or along the chassis. Never route the nylon line near the exhaust headers or heater boxes, as the heat will melt the plastic and cause an immediate vacuum leak. We recommend sleeving the nylon line in a protective rubber hose or upgrading to a braided stainless steel line if you are running a high-heat turbo setup. Also, ensure there are no sharp kinks in the line, as this will "lag" the gauge response and give you inaccurate data during rapid acceleration.
