2-1/16 Oil Temp Gauge, Cockpit Series, 120-300 Degrees

OVERVIEW

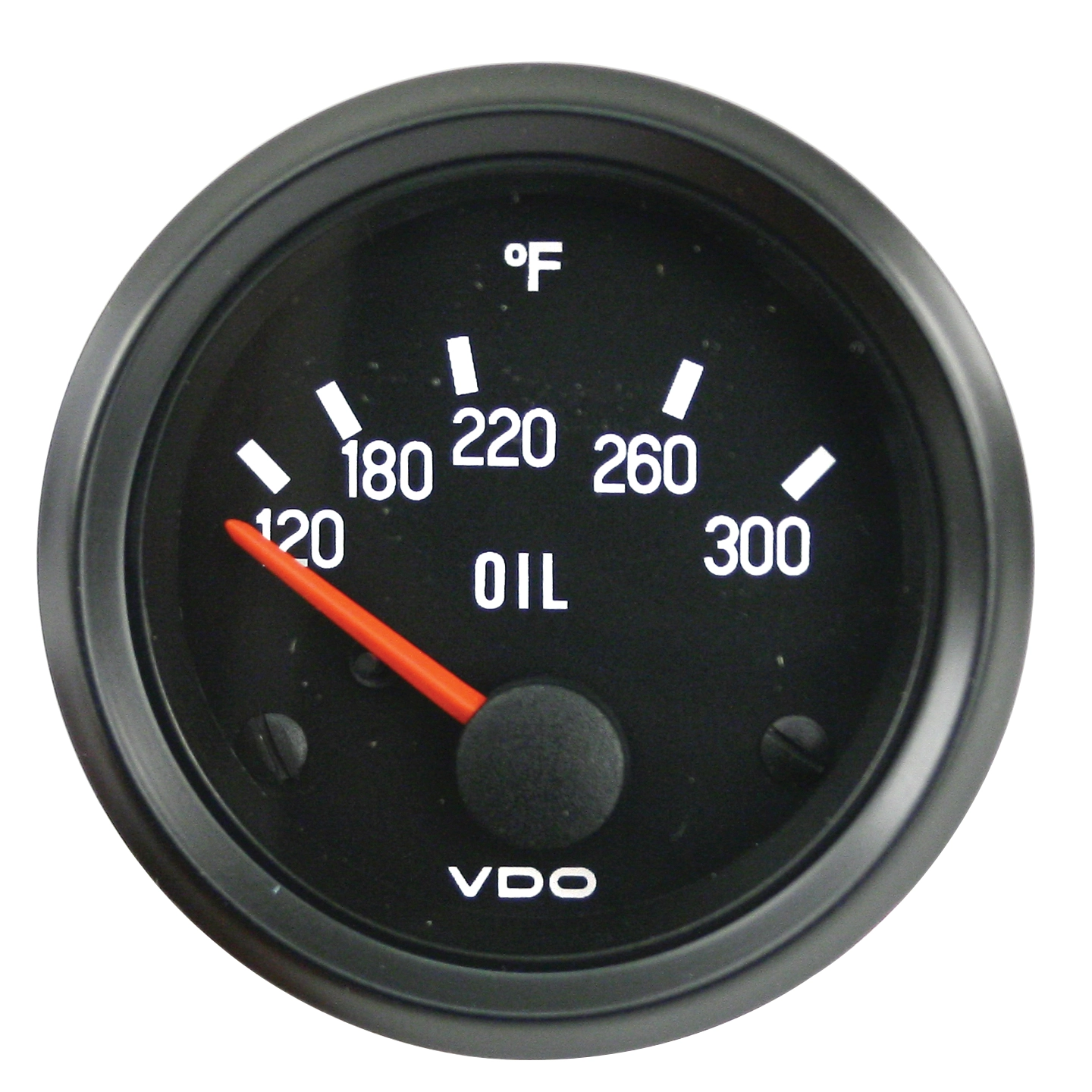

In the world of air-cooled Volkswagens, your oil temperature is the single most important metric for engine longevity. Because these engines lack a liquid cooling system, the oil carries a massive burden of heat dissipation. The VDO Cockpit Series 120-300 Degree Oil Temperature Gauge is the industry gold standard for monitoring this vital sign. Featuring the iconic flat black face, crisp white numerals, and a high-contrast red pointer, this gauge provides at-a-glance readability even in the high-vibration environment of a built Type 1 or Type 4 engine. Whether you are cruising the interstate in a Westfalia or carving dunes in a Manx, knowing exactly when your oil reaches its thermal limit allows you to adjust your driving style before expensive internal damage occurs.

VDO has been the original equipment manufacturer for Volkswagen for decades, and the Cockpit Series maintains that factory-correct aesthetic while offering modern precision. This 2-1/16 inch (52mm) gauge is designed for a seamless install into standard dash cutouts or auxiliary pods. It utilizes a traditional analog sweep that enthusiasts prefer for its "real-time" feedback compared to laggy digital displays. When paired with the correct VDO sending unit, this gauge provides a highly accurate bridge between your engine''s internal health and your dashboard. Don''t leave your expensive engine build to chance; equip your cockpit with the reliability that only a genuine VDO instrument can provide.

FITMENT

This universal 52mm gauge is designed to fit a wide variety of air-cooled and water-cooled applications, including:

• Volkswagen Beetle: 1946 through 1977 (Standard and Super Beetle).
• Volkswagen Bus / Transporter: Type 2 Split Window, Bay Window, and Vanagon models.
• Volkswagen Karmann Ghia: All years and models.
• Volkswagen Type 3: Squareback, Fastback, and Notchback.
• Volkswagen Thing (Type 181): All military and civilian models.
• Custom Applications: Sand Rails, Dune Buggies, Meyers Manx, and Baja Bugs.
• Porsche: Early 356 and 912 models utilizing 12V electrical systems.

SPECS

• Brand: VDO Instruments.
• Series: Cockpit Series.
• Diameter: 2-1/16 inches (52mm).
• Temperature Range: 120 Degrees to 300 Degrees Fahrenheit.
• Face Color: Flat Black.
• Bezel Color: Black.
• Pointer Color: High-Visibility Red.
• Input Type: Analog Electric (Requires VDO Sending Unit).
• Voltage: 12 Volts (Compatible with 12V converted vintage VWs).
• Illumination: Incandescent bulb with optional color diffusers (Perimeter lit).
• Mounting Hardware: Included (U-bracket and nuts).
• Connection Type: Male spade terminals for easy wiring.

PRO TIPS

1. Matching the Sending Unit is Critical

For this gauge to read accurately, you MUST use a VDO 300-degree sending unit that matches the gauge''s resistance curve. Using a generic sender or a 250-degree sender will result in wildly inaccurate readings that could lead you to believe your engine is running cooler than it actually is. We recommend the V3-2305-5 for a simple drain plug replacement or the V3-2306-4 for installation in the oil pressure relief gallery on VW cases. Always use a small amount of thread sealant, but ensure the sender can still "ground" to the engine block through the threads, as VDO senders are typically single-pole and rely on the engine for a ground path.

2. Proper Grounding Prevents "Needle Jump"

One of the most common tech calls we get involves needles that jump when the headlights are turned on. This is almost always caused by a poor ground. Ensure your gauge is grounded to a clean, paint-free surface on the chassis. For the most accurate readings in a fiberglass buggy or a vintage VW with a painted dash, run a dedicated ground wire from the gauge directly to the engine block or the main battery ground. This eliminates electrical "noise" and ensures the resistance signal from the sender isn''t compromised by old, high-resistance factory wiring.

3. Understanding Your Temperature Limits

As a master specialist, I tell my customers that "normal" is relative, but "danger" is absolute. In an air-cooled VW, your target cruising oil temperature should be between 180 and 210 degrees Fahrenheit. If you see the needle creeping toward 230 degrees, it is time to back off the throttle. If you hit 250 degrees, you should pull over immediately and let the engine idle to circulate air or shut it down to cool. Consistent operation above 230 degrees will rapidly break down conventional motor oil and lead to "dropped" valve seats or warped heads. Monitoring this gauge is the best insurance policy you can buy for your Volkswagen.
