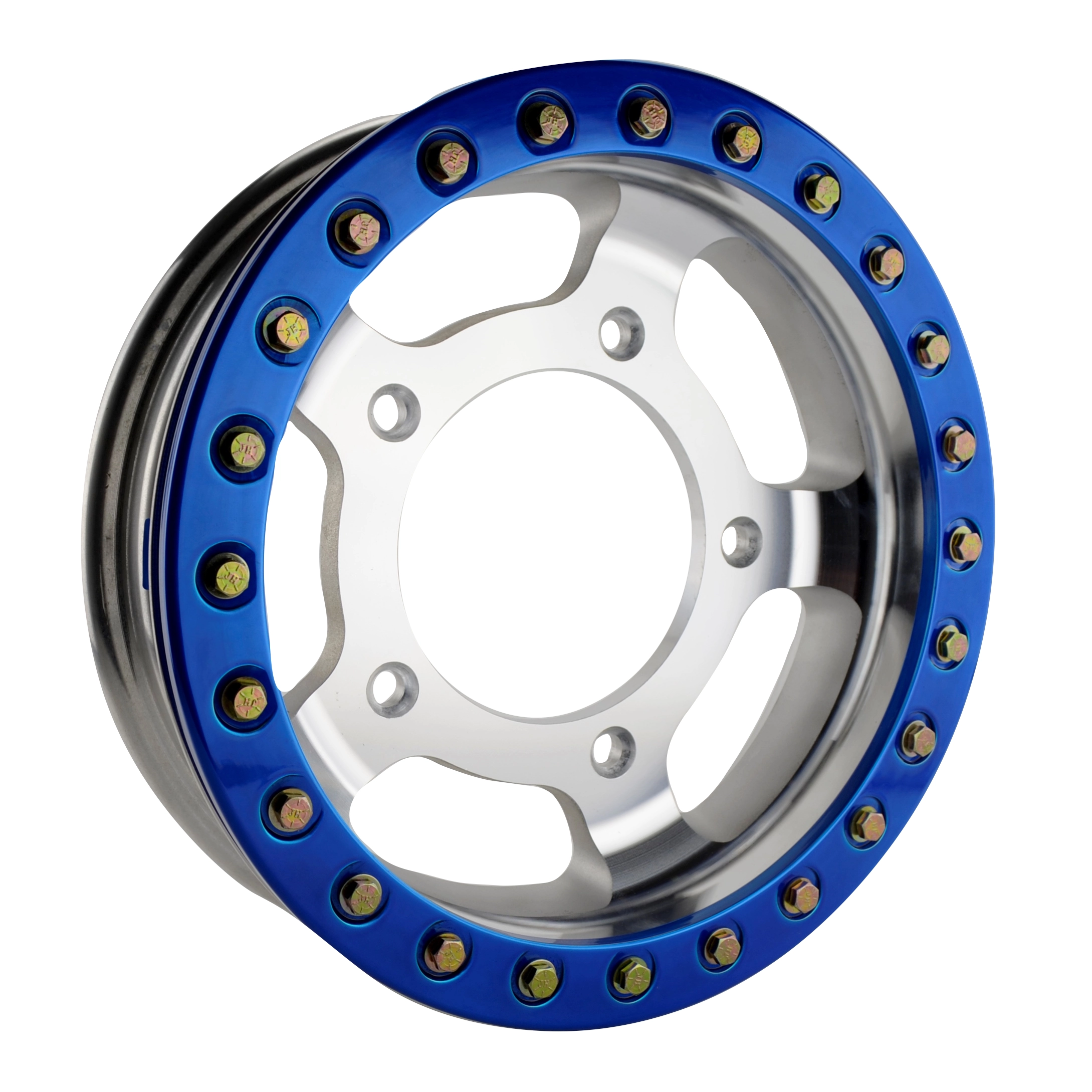

15 X 4 Forged Beadlock Rim, 5 On 205mm, Blue Beadlock

OVERVIEW

When you''re carving through the dunes or tackling a technical desert wash, the last thing you want to worry about is blowing a tire bead under low-pressure conditions. The EMPI Race-Trim 15 x 4 Forged Beadlock Rim is engineered specifically for the air-cooled enthusiast who demands both rugged durability and a high-end aesthetic. Featuring a classic 5 on 205mm bolt pattern, often referred to as the ''Wide-5,'' this wheel is a direct nod to the heritage of early Volkswagens while incorporating modern off-road technology. The wheel body is constructed from high-quality pressure-cast aluminum with a precision-machined finish, providing a lightweight yet incredibly strong foundation for your Baja Bug, Manx-style buggy, or dedicated sand rail. The striking blue anodized beadlock ring doesn''t just add a pop of custom color to your build; it serves the critical function of clamping the tire bead securely to the rim, allowing you to drop your PSI for maximum flotation and traction without the risk of a de-bead.

This 4-inch wide rim is the ultimate choice for the front end of your off-road machine, offering the perfect profile for ''skinny'' off-road tires that slice through soft sand and provide precise steering input. As a master air-cooled specialist, I can tell you that the 1-3/4 inch backspacing is ideal for maintaining a balanced track width and ensuring clearance for your suspension components during full travel. Every wheel comes complete with the necessary Grade-8 hardware to secure the blue forged ring, ensuring that your setup is race-ready right out of the box. Whether you''re building a period-correct vintage racer or a modern long-travel desert car, this Race-Trim beadlock wheel delivers the professional-grade performance and iconic styling that Appletree Automotive customers have relied on for decades. Don''t settle for standard wheels when you can have the security and aggressive look of a genuine forged beadlock system.

FITMENT

• Volkswagen Beetle: 1950 through 1965 (Standard Wide-5 Models)
• Volkswagen Bus/Transporter: 1950 through 1967
• Volkswagen Karmann Ghia: 1956 through 1966
• Volkswagen Type 181 Thing: (With Wide-5 hub conversions)
• Custom Applications: Meyer''s Manx, Sand Rails, Chenowth Buggies, and Baja Bugs utilizing 5 on 205mm hubs

SPECS

• Wheel Diameter: 15 Inches
• Wheel Width: 4 Inches
• Bolt Pattern: 5 on 205mm (Wide-5)
• Backspacing: 1.75 Inches (1-3/4")
• Material: High-Strength Pressure Cast Aluminum Body
• Beadlock Ring: Forged Aluminum with Blue Anodized Finish
• Lug Seat: Ball Seat (Requires standard VW style ball seat lug nuts)
• Hardware: Included Zinc-Plated Beadlock Bolts
• Finish: Machined Aluminum Face and Barrel
• Weight: Approximately 19.25 lbs

PRO TIPS

Tip 1: Mastering the Beadlock Torque Sequence

Installing a beadlock ring is not like bolting on a standard wheel; it requires patience and precision to ensure an airtight seal. Always start by hand-threading all bolts to avoid cross-threading. You must use a star or criss-cross pattern, tightening each bolt only a few turns at a time to ensure the ring pulls down evenly against the tire bead. Never use an impact wrench for the final torque. Instead, use a calibrated torque wrench to reach the manufacturer''s recommended specification (typically between 10-14 foot-pounds, but always verify). We also highly recommend using a small dab of anti-seize on the threads to prevent galling, especially since these wheels are often exposed to moisture and sand.

Tip 2: Selecting the Right Front Tire

Since this is a 4-inch wide rim, it is specifically designed for front-end use in off-road environments. For the best performance in the sand, pair this rim with a 15-inch ribbed sand tire or a lightweight ''implement'' style tire. These ''skinnies'' allow the front of the vehicle to stay on top of the sand rather than digging in, which significantly reduces understeer when you''re trying to whip around a dune. If you are running a Baja Bug on dirt, a 165R15 or a specific 27-inch tall off-road front runner provides the best balance of clearance and steering response without putting excessive strain on your steering box or tie rod ends.

Tip 3: Post-Ride Maintenance and Inspection

The blue anodized finish on your beadlock rings is durable, but it can be affected by harsh chemicals or salt. After a weekend at the dunes or in the mud, wash your wheels with a pH-neutral soap and water. Avoid acidic wheel cleaners which can dull the anodizing and the machined aluminum finish. More importantly, always re-check the torque on your beadlock bolts after the first 50 miles or after a heavy day of off-roading. The compression of the tire bead can settle over time, and maintaining consistent tension on those bolts is the only way to ensure your tires stay seated and your air pressure remains constant throughout your next adventure.
