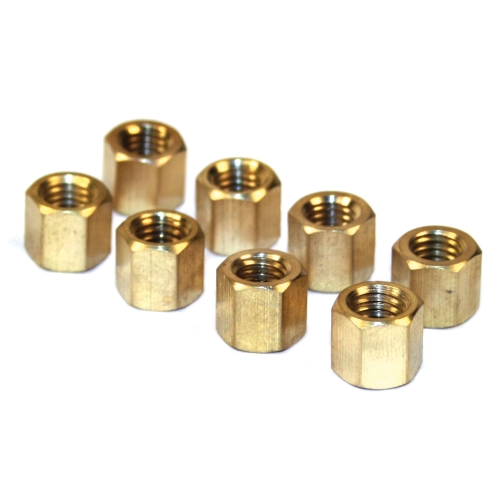

Exhaust Nut Set, Clearanced, Brass

OVERVIEW

If you have ever struggled to fit a standard 13mm socket or wrench between a high-performance exhaust primary tube and the cylinder head stud, you know exactly why these EMPI clearanced brass nuts are a staple in every professional VW engine builder''s toolbox. Standard exhaust nuts often provide zero clearance for larger 1-1/2 inch or 1-5/8 inch header pipes, leading to rounded fasteners, scratched ceramic coatings, and hours of frustration. These specialized nuts solve that clearance dilemma by utilizing a reduced 11mm hex head while maintaining the standard 8mm x 1.25 thread pitch. This allows you to slide a thin-wall socket or a box-end wrench into those tight radiuses with ease, ensuring a proper seal without the headache of "fudging" the fitment with a ground-down tool.

Beyond the clearance benefits, the material choice here is critical for the harsh environment of an air-cooled Volkswagen exhaust system. Unlike zinc-plated steel nuts that tend to "rust-weld" themselves to the exhaust studs after a few heat cycles, these high-quality brass nuts offer superior thermal properties. Brass expands and contracts at a rate that resists seizing, making future maintenance or exhaust swaps significantly easier. Whether you are finishing a show-quality Beetle restoration or plumbing a high-horsepower sand rail, these nuts provide the reliability and professional finish your build deserves. They are also an excellent choice for intake manifold applications, especially on dual-carburetor setups where the manifold runners sit extremely close to the mounting studs.

FITMENT

These clearanced brass nuts are designed for all air-cooled Volkswagen engines utilizing standard 8mm exhaust or intake studs. This includes, but is not limited to, the following models:

• Volkswagen Beetle: 1950 through 1979 (Standard and Super Beetle).
• Volkswagen Karmann Ghia: 1955 through 1974.
• Volkswagen Bus / Type 2: 1950 through 1971 (1200cc, 1500cc, and 1600cc engines).
• Volkswagen Type 3 (Squareback, Fastback, Notchback): 1961 through 1973.
• Volkswagen Thing: 1973 through 1974.
• Custom Applications: Dune Buggies, Sand Rails, Trikes, and Baja Bugs using Type 1, 2, or 3 upright engines.

SPECS

Precision-engineered to meet the rigorous demands of high-heat automotive applications, these nuts feature the following technical specifications:

• Thread Diameter: 8mm.
• Thread Pitch: 1.25 (Standard Coarse).
• Wrench Size: 11mm (Reduced from standard 13mm for maximum clearance).
• Material: Solid Brass for anti-seize properties and corrosion resistance.
• Quantity: 8 Pieces (Full set for one engine).
• Manufacturer: EMPI.
• Part Number: 2505-20.
• Application: Exhaust Headers, J-Tubes, Stock Mufflers, and Intake Manifolds.

PRO TIPS

Tip 1: Use the Correct Tooling for Brass. Because brass is a softer metal than steel, it is imperative that you use a high-quality 6-point 11mm box-end wrench or a 6-point socket during installation. Avoid using 12-point wrenches or adjustable "Crescent" style wrenches, as these are much more likely to round off the corners of the nut if the stud threads are dirty or if you are applying high torque. A 6-point tool provides maximum surface contact and ensures a secure tighten every time.

Tip 2: Don''t Skip the Anti-Seize. While the brass material itself is naturally resistant to seizing on steel studs, the extreme heat cycles of a VW exhaust system can still cause "galling" over several years. We highly recommend applying a small dab of copper-based high-temp anti-seize to the stud threads before threading these nuts on. This creates a dual-layer of protection that ensures you can remove your header or heat exchangers five years from now without snapping a stud off in the cylinder head.

Tip 3: Torque in Stages for a Leak-Free Seal. When installing an exhaust header, never tighten one nut all the way down before starting the others. Tighten the nuts in a "cross" pattern in three distinct stages (e.g., 8 ft-lbs, then 12 ft-lbs, then a final check at 14-18 ft-lbs). This ensures the exhaust flange compresses the gasket evenly. Because these are 11mm heads, it is easy to over-torque them with a large 3/8 drive ratchet; use a smaller 1/4 inch drive or a dedicated torque wrench to stay within the factory 14-18 ft-lb spec for 8mm studs.
