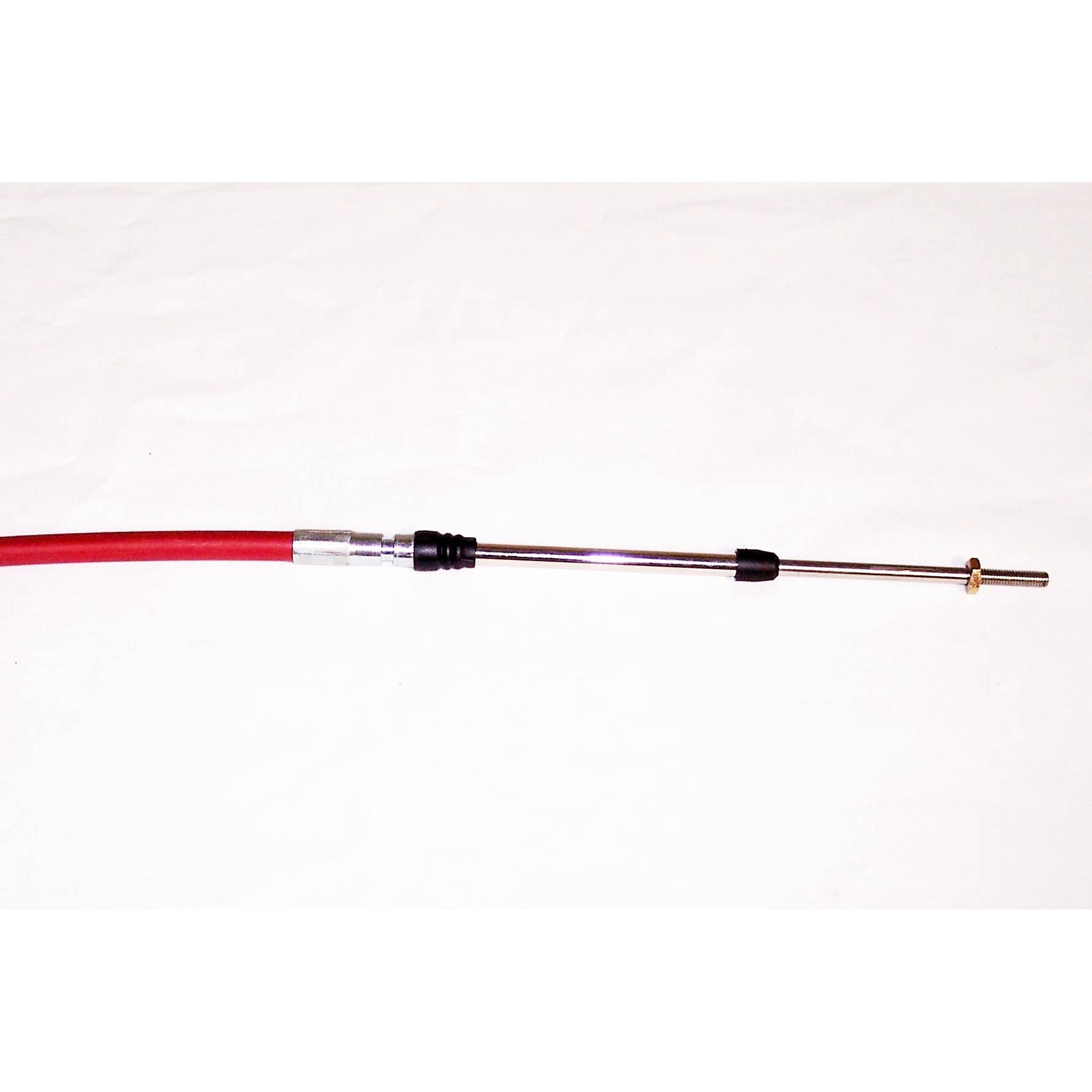

Push Pull Throttle Cable, Standard Sleeve, 7 Ft Overall

High-Performance Control for Your Custom Air-Cooled Project

When it comes to off-road reliability and precise throttle response, the EMPI Push-Pull Throttle Cable is the gold standard for enthusiasts who demand more than a stock setup can provide. This 7-foot standard sleeve cable, often referred to in the industry as a Morse-style cable, is engineered to eliminate the "spongy" feel associated with traditional braided throttle wires. By utilizing a rigid yet flexible outer conduit and a solid inner core, this cable provides a positive, direct connection between your foot and the carburetor. Whether you are navigating a technical rock section or pinned wide open on a lake bed, the 810-7 ensures that every millimeter of pedal movement translates into immediate engine response. It is the ultimate upgrade for those who have moved beyond the limitations of factory Bowden tubes and want a failsafe system that won''t snap or bind under pressure.

Built to withstand the harsh environments that air-cooled Volkswagens and custom sand rails frequently inhabit, this cable features a heavy-duty standard sleeve that protects the inner workings from sand, silt, and moisture. The 7-foot length is a popular choice for mid-engine sand rails and short-wheelbase buggies, providing enough reach to clear the chassis while maintaining a clean routing path. The "810 series" designation signifies a standard bend radius, offering a robust construction that holds its shape while providing three inches of smooth, linear travel. Unlike cheaper universal alternatives, this EMPI-backed cable uses high-quality 10-32 threaded ends, allowing for easy integration with high-end heim joints or standard clevis ends. When you are miles into the dunes, you don''t want to worry about your throttle linkage; you want the peace of mind that comes with a professional-grade push-pull system.

Vehicle Fitment and Applications

While this is a universal high-performance component, it is most commonly utilized in the following air-cooled and custom applications:

• Custom Dune Buggies: Perfect for Manx-style bodies and tube chassis builds.
• Sand Rails: Ideal for mid-engine or rear-engine configurations requiring 7 feet of reach.
• Baja Bugs: Used when converting to a floor-mounted pedal assembly or custom carburetor linkage.
• Volkswagen Trikes: Provides a durable link for long-reach throttle requirements.
• Street Rods & Kit Cars: Compatible with any application requiring a 10-32 threaded interface.
• Racing Applications: Suitable for off-road racing where debris protection is mandatory.

Technical Specifications

• Brand: EMPI
• Part Number: 810-7
• Overall Length: 7 Feet (84 inches)
• Inner Core Travel: 3 Inches
• Thread Size: 10-32 (Both ends)
• Sleeve Style: Standard 810 Series Conduit
• End Type: Clip-style mounting
• Material: High-tensile steel inner wire with reinforced outer casing
• Compatibility: Works with all standard 10-32 heim joints and throttle clevises

Pro Tips from the Appletree Garage

Pro Tip 1: Respect the Radius. While the 810 series is incredibly durable, it is vital to avoid sharp "kinks" or extremely tight loops during installation. The standard sleeve is designed for gradual curves. If you force the cable into a tight 90-degree turn, you will increase internal friction, which leads to a heavy pedal feel and premature wear on the inner core. Always route the cable in wide, sweeping arcs to ensure the smoothest possible operation and the longest lifespan for your linkage.

Pro Tip 2: Use Heim Joints for Articulation. To get the absolute best performance out of your 7-foot push-pull cable, we highly recommend using 10-32 threaded heim joints (rod ends) at both the pedal and the carburetor. These joints allow the cable to pivot freely as the linkage moves through its arc, preventing "side-loading" on the cable core. Side-loading is the leading cause of cable failure, as it forces the inner wire to rub against the edge of the sleeve. A heim joint ensures the force is always applied in a straight line.

Pro Tip 3: Seal and Lubricate. Even though these cables are designed for off-road use, a little preventative maintenance goes a long way. Before final installation, apply a small amount of dry PTFE lubricant to the exposed inner wire. Unlike grease, dry lube won''t attract sand and grit which can act like sandpaper inside the sleeve. Additionally, ensure your mounting clips are tight; if the outer sleeve is allowed to move at the mounting point, you lose "effective travel," which can prevent you from reaching wide-open throttle or a consistent idle.
