Disc Brake Kit, 4 On 130mm, Ball Joint, Bolt On

OVERVIEW

Upgrading your classic Volkswagen''s stopping power has never been more straightforward or more necessary than with the EMPI Front Disc Brake Conversion Kit. Designed specifically for 1968 and later ball joint front ends, this kit eliminates the frequent maintenance and inconsistent performance of aging drum brakes. By utilizing a clever bolt-on bracket system, this kit allows you to transition to modern disc technology without the labor-intensive process of replacing your spindles. This means you can maintain your vehicle''s original geometry while gaining the heat dissipation and fade resistance that only high-quality rotors and calipers can provide. Whether you are navigating heavy modern traffic or carving through canyon roads, the increased confidence provided by a firm, responsive brake pedal is the ultimate safety improvement for any air-cooled enthusiast.

Precision-engineered by EMPI, a name synonymous with VW performance for decades, this kit (Part # 22-2983-0) is built to handle the rigors of daily driving and weekend shows alike. The rotors feature the standard 4 on 130mm bolt pattern, allowing you to retain your stock late-model Beetle wheels or any popular aftermarket 4-lug options. The heavy-duty calipers are designed to provide consistent clamping force, significantly reducing stopping distances compared to traditional shoes and drums. Because this is a comprehensive bolt-on solution, it is the ideal choice for the home mechanic looking to modernize their Bug or Ghia without specialized machine shop tools. Experience the peace of mind that comes with knowing your Volkswagen has the stopping power to match its timeless style.

FITMENT

This kit is designed for Volkswagen models equipped with a Ball Joint front beam and the standard 4-lug (4x130mm) wheel pattern. Please note that this kit is intended for Standard Beetles and is not compatible with Super Beetle models.

• Volkswagen Type 1 [Beetle/Bug]: 1968 through 1977 (Standard models)
• Volkswagen Type 14 [Karmann Ghia]: 1968 through 1974
• Custom Applications: Any Dune Buggy, Sand Rail, or Kit Car utilizing a 1968-later VW Ball Joint Front Beam with drum spindles.

SPECS

Detailed technical specifications for the EMPI 22-2983-0 Disc Brake Kit:

• Bolt Pattern: 4 On 130mm (Late VW 4-Lug)
• Front Beam Compatibility: Ball Joint Only
• Thread Size: 14mm x 1.5 (Standard VW Lug Thread)
• Rotor Style: Solid, Non-Vented High-Carbon Cast Iron
• Caliper Type: Single-Piston Floating Design (Ghia-style)
• Bracket Material: High-Strength Heat-Treated Steel
• Installation Style: Bolt-on (No spindle swap required)
• Weight: Approximately 46.75 lbs

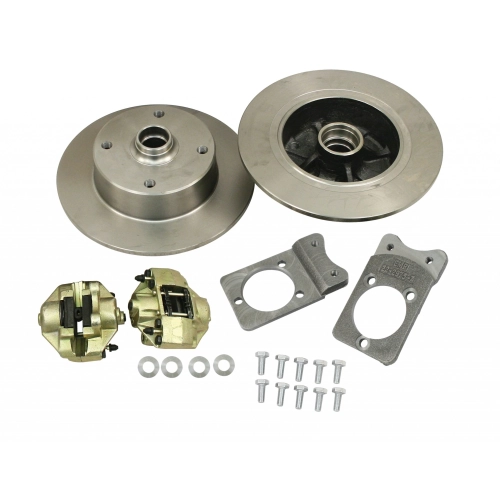

• Included Hardware: Caliper mounting brackets, rotors, calipers, brake pads, and necessary mounting bolts.

PRO TIPS

1. Don''t Forget Your Bearings and Seals

A common oversight when purchasing this kit is forgetting that it does not include the inner and outer wheel bearings or the grease seals. Since you are already tearing down the front end, it is the perfect time to install brand-new, high-quality bearings. We highly recommend using a premium bearing grease and ensuring the races are seated perfectly flat within the new rotors. Never reuse old bearings in a new rotor, as any existing wear patterns or contaminants can lead to premature failure and potentially dangerous driving conditions.

2. Verify Your Master Cylinder Compatibility

When converting from drum brakes to disc brakes, you must ensure your master cylinder is up to the task. Original drum-brake master cylinders often contain a residual pressure valve designed to keep a small amount of tension on the drum shoes. If this valve remains in place when using disc brakes, it can cause the calipers to "drag," leading to excessive heat, warped rotors, and accelerated pad wear. For the best results, we recommend installing a disc-brake-specific master cylinder or a dual-circuit unit that has been verified for disc applications to ensure a smooth and complete release of the pads.

3. Proper Brake Bleeding and Bedding

To achieve that rock-solid pedal feel, you must perform a thorough air bleed of the entire hydraulic system, starting from the wheel furthest from the master cylinder (typically the passenger rear) and working your way forward. Once the system is bled, it is critical to "bed-in" your new pads and rotors. This involves a series of controlled stops from moderate speeds to evenly transfer a layer of friction material from the pads to the rotor surface. Skipping this step can lead to "brake judder" or uneven stopping power. Always check your brake lines for any signs of cracking or aging during the install and replace them with stainless steel braided lines for the ultimate upgrade in pedal response.
