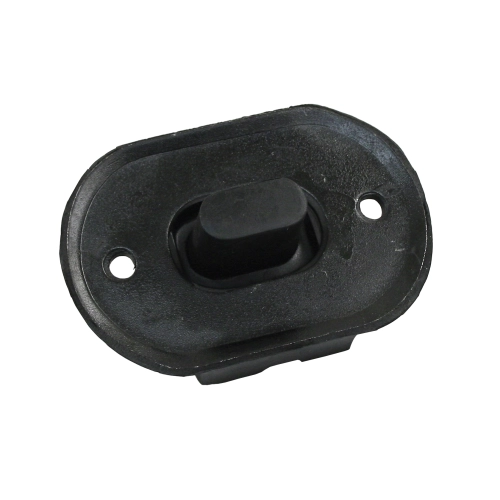

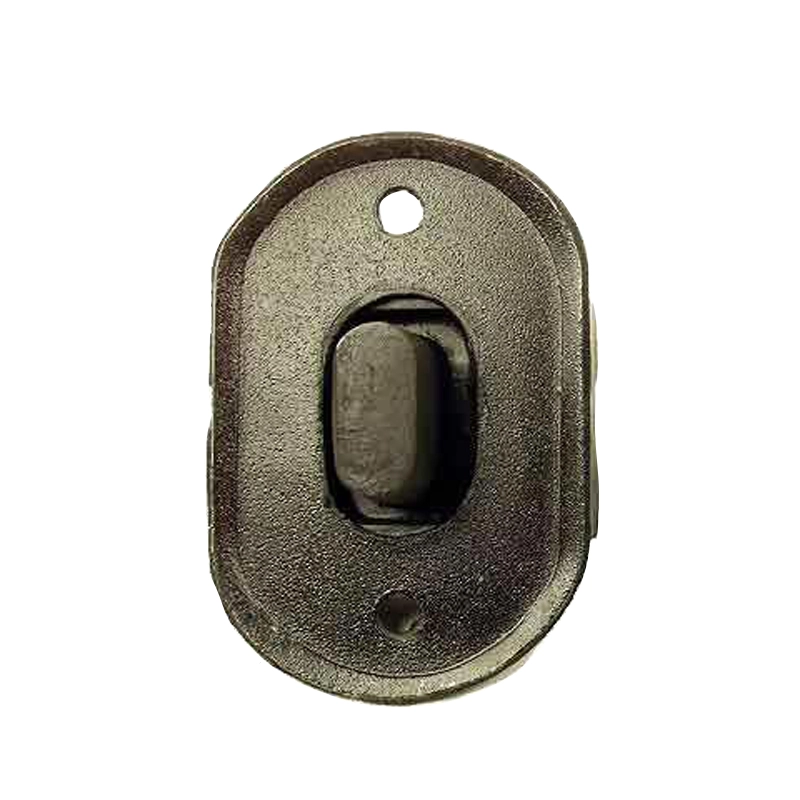

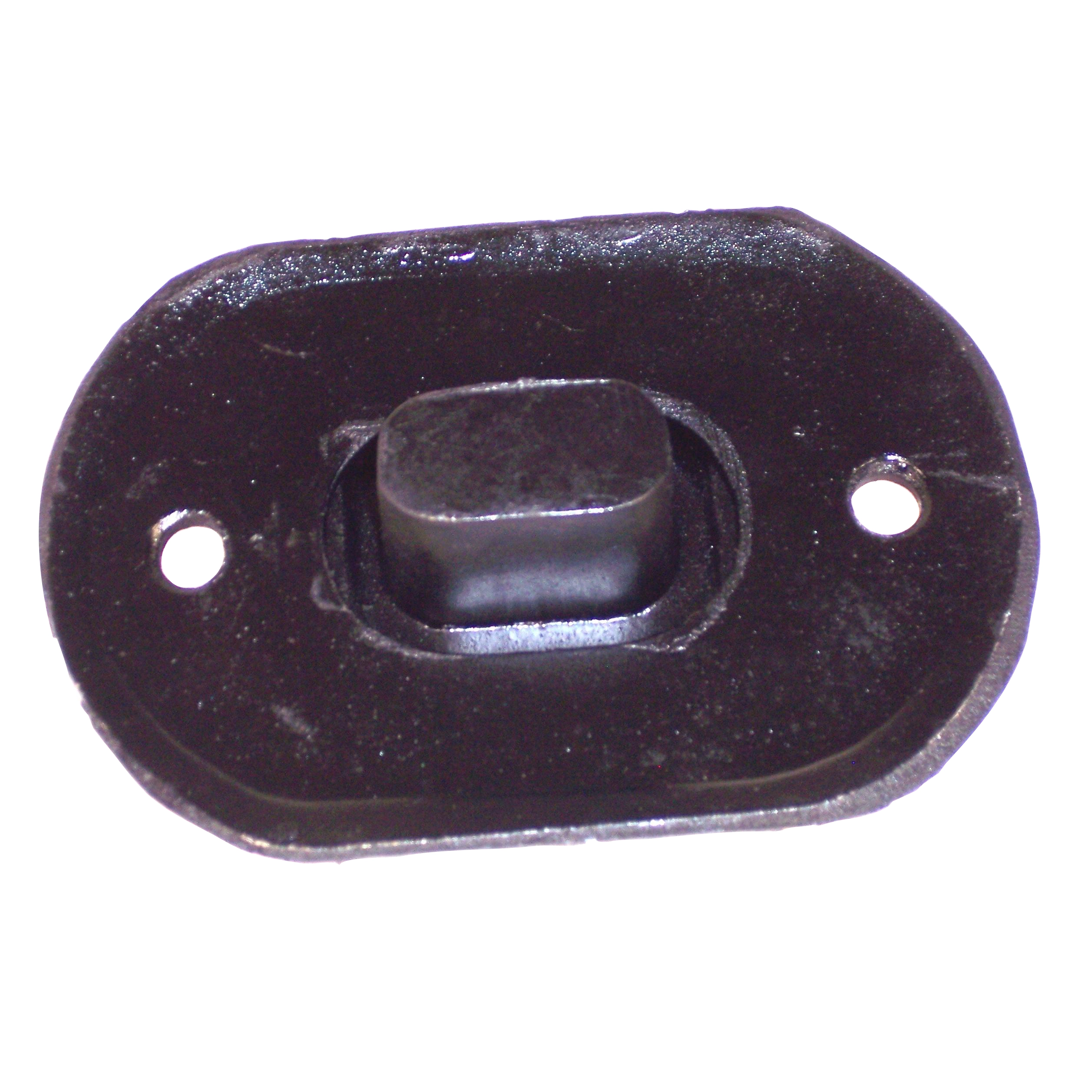

Front Transmission Mount, Fits Beetle 61-65

Product Overview

When it comes to the structural integrity of your air-cooled drivetrain, the front transmission mount is the unsung hero that keeps your gearbox and engine properly aligned. This EMPI Front Transmission Mount, specifically engineered for the 1961 to 1965 Volkswagen Beetle, provides the essential bridge between your chassis and the transmission nose cone. Over decades of service, original rubber mounts succumb to dry rot, heat cycles, and the inevitable exposure to gear oil and road grime. A failed mount doesn''t just cause annoying vibrations; it leads to excessive drivetrain movement, which can result in the car "popping out of gear," premature wear on your shift rod bushings, and even stress cracks on the nose cone itself. By installing this high-quality, OEM-style replacement, you are restoring the factory-intended dampening that smooths out your ride and ensures precise gear engagement every time you hit the road.

This front mount is manufactured to meet or exceed original Volkswagen specifications, utilizing a robust rubber compound that is vulcanized to heavy-duty steel plates for maximum durability. At Appletree Automotive, we understand that mid-sixties Beetles occupy a unique space in VW history, and using the correct 311-301-265A part number is critical for a "bolt-in" fit without the need for frustrating modifications. Whether you are performing a full body-off restoration or simply trying to eliminate that annoying "clunk" every time you let out the clutch, this mount offers the perfect balance of stiffness and vibration isolation. Don''t settle for a sloppy shifter or a vibrating floorboard when a fresh, reliable mount is this accessible. It is a fundamental component for maintaining the longevity of your transaxle and the overall comfort of your classic VW.

Vehicle Fitment and Compatibility

• Volkswagen Beetle (Sedan & Convertible): 1961, 1962, 1963, 1964, 1965
• Volkswagen Karmann Ghia: 1961, 1962, 1963, 1964, 1965
• Volkswagen Type 3 (Squareback, Fastback, Notchback): 1962, 1963, 1964, 1965

Technical Specifications

• Part Number: 311-301-265A
• Material: High-grade vulcanized natural rubber bonded to reinforced steel plates.
• Mounting Location: Front of transmission (Nose Cone to Chassis).
• Style: OEM replacement (Standard duty).
• Weight: 1.26 lbs.
• Hardware Requirements: Uses standard VW-size nose cone mounting bolts.
• Finish: Corrosion-resistant coating on all exposed metal surfaces.

Pro Tips from the Appletree Workshop

1. Inspect for Oil Saturation and Leaks

Before installing your new mount, thoroughly clean the transmission nose cone area and check for gear oil leaks at the shift rod seal. Rubber is naturally susceptible to rapid degradation when exposed to petroleum products. If your old mount was "mushy" or swollen, it was likely caused by a leaking seal. Replacing the mount without fixing the leak is only a temporary fix; ensure your shift rod seal and nose cone gasket are tight to protect your new investment from premature failure. A dry mount is a long-lasting mount.

2. Ensure Neutral Drivetrain Alignment

When installing this mount, do not fully torque the bolts
