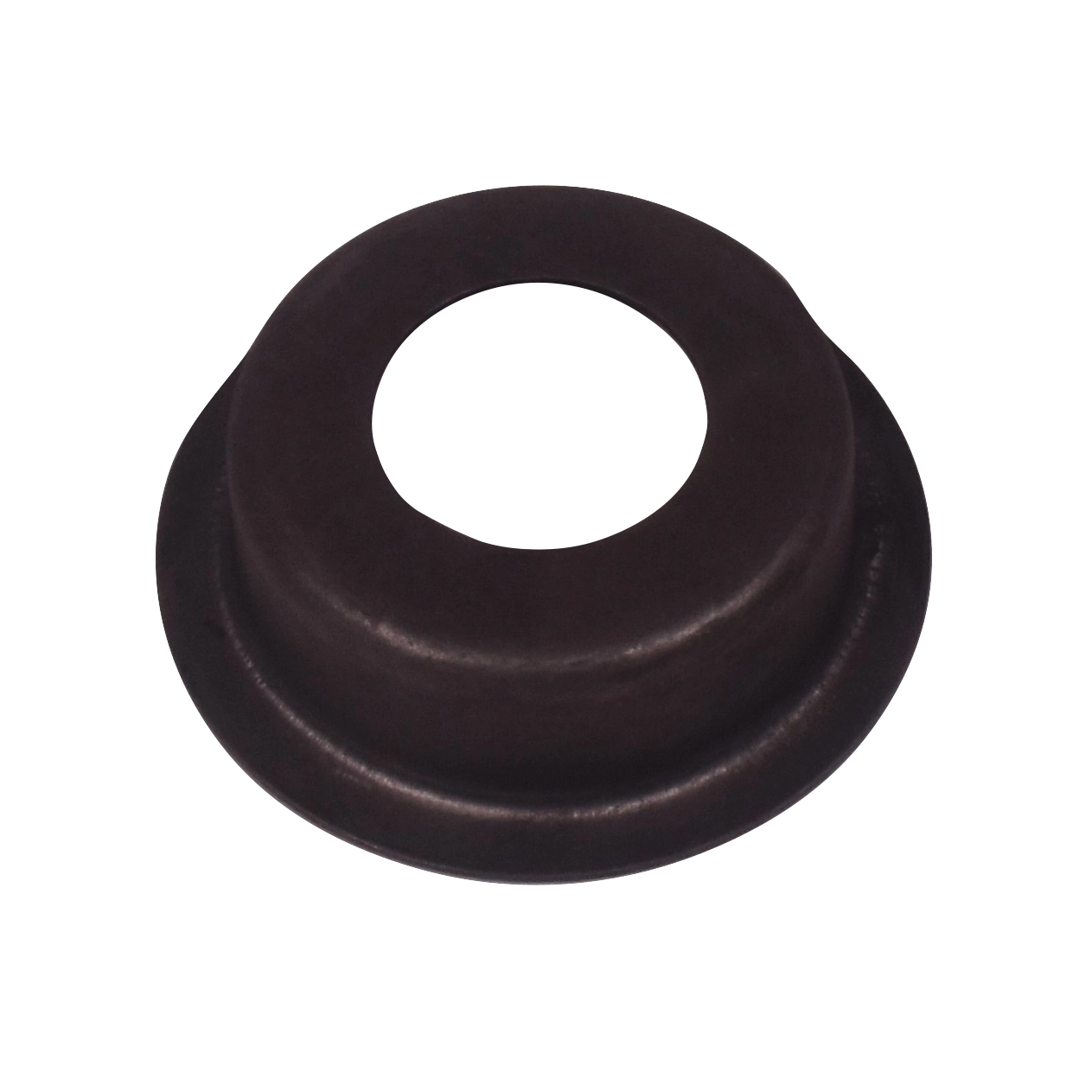

Throw Out Arm Dust Shield, for Beetle & Bus 68-75

OVERVIEW

The clutch system in your air-cooled Volkswagen is a masterpiece of mechanical simplicity, but it relies heavily on the integrity of small, often overlooked components like the Latest Rage Throw Out Arm Dust Shield. This heavy-duty rubber boot serves as the primary line of defense for your transmission''s internal clutch release mechanism. Located where the operating shaft exits the bellhousing, this shield prevents road grime, moisture, and abrasive dust from migrating into the critical bushing and bearing surfaces. In the harsh environment of an engine bay or the underside of a Baja Bug, keeping your clutch components clean is the difference between a smooth, effortless pedal feel and a stiff, grinding engagement that eventually leads to catastrophic failure of the throw-out shaft bushings.

Crafted to meet or exceed original equipment specifications, this dust shield is designed specifically for the late-model 1968 through 1975 Beetle and Bus configurations. Over decades of service, the original factory rubber often becomes brittle, cracks, or disappears entirely, leaving your transmission internals vulnerable to the elements. Installing a fresh Latest Rage shield ensures that your clutch cable pull remains linear and consistent by maintaining the lubrication integrity of the shaft. Whether you are performing a full transmission rebuild or simply doing routine maintenance during an engine pull, replacing this inexpensive seal is a non-negotiable step for any serious VW enthusiast who demands long-term reliability from their Type 1 or Type 2 drivetrain.

FITMENT

• VW Beetle (Standard & Super): 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975
• VW Bus (Type 2): 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975
• VW Karmann Ghia: 1968, 1969, 1970, 1971, 1972, 1973, 1974
• VW Thing (Type 181): 1973, 1974

SPECS

• Part Number: AC302010
• Brand: Latest Rage
• Material: High-density pliable automotive-grade rubber
• Application: Clutch Throw-Out / Operating Shaft Exit Point
• Inner Diameter: Precision molded for 1968-75 shaft diameters
• Resistance: Oil, grease, and ozone resistant for outdoor durability
• Color: Classic Black

PRO TIPS

1. Use a Silicone-Based Lubricant for Installation

When sliding the new dust shield over the throw-out arm, avoid using petroleum-based greases which can cause some rubbers to swell or degrade over time. Instead, apply a very light coating of silicone spray or a tiny amount of dish soap to the inner lip of the shield. This allows the rubber to slide over the shoulder of the arm without tearing or over-stretching. A properly seated shield should sit flush against the transmission housing without any gaps that could allow water to seep in during a car wash or off-road excursion.

2. Inspect Your Bushings While the Shield is Off

The moment you have the old shield removed is the perfect time to perform a "wiggle test" on your throw-out arm. Grab the arm and check for any lateral or vertical play. If the shaft moves excessively within the transmission housing, your internal bushings are likely worn out. A new dust shield cannot compensate for worn bushings; in fact, an off-center shaft will quickly tear a new shield. If you detect movement, consider replacing the bushings and the shaft itself before finalizing the installation of your new Latest Rage dust shield.

3. Verify Spring Tension and Clearance

After installing the shield and reconnecting your clutch cable and return spring, cycle the clutch pedal by hand or have an assistant depress it while you watch the shield from underneath. Ensure that the return spring or the cable clevis isn''t pinching the rubber folds of the dust shield. If the shield gets caught in the spring coils, it will tear within the first few miles of driving. Adjust the orientation of the shield so the "accordion" folds expand and contract freely without interference from the surrounding clutch linkage hardware.
