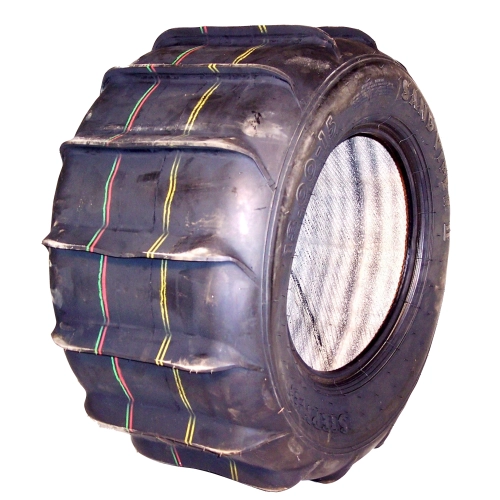

Sandviper Paddle Tire, 29 Talll , 13-1/2 Wide

OVERVIEW

When it comes to conquering the dunes, traction is the name of the game, and the Latest Rage Sandviper Paddle Tire is engineered to deliver maximum hook-up without bogging down your engine. This 29-inch tall tire represents the perfect "sweet spot" for air-cooled Volkswagen enthusiasts and sand rail builders who need a significant footprint but don''t want the rotating mass of a massive 33-inch monster. Designed specifically for smaller displacement engines, such as the classic 1600cc dual port up to mid-range 2100cc strokers, this tire allows your powerplant to stay high in the RPM range where it makes the most power. The aggressive paddle design is spaced to provide a self-cleaning action that prevents sand loading, ensuring that every rotation results in forward momentum rather than digging a hole to China.

The Sandviper features a robust construction that balances weight and durability, a critical factor for mini-buggies and lightweight sand rails where unsprung weight can drastically affect suspension performance. With a 13-1/2 inch width, these tires provide incredible flotation, allowing your vehicle to "plane" across the top of soft, silty sand rather than sinking in. This flotation is essential for keeping your momentum up during steep dune climbs or when navigating tight bowls. Whether you are building a classic Chenowth, a Berrien chassis, or a custom tube-frame rail, the Sandviper offers the professional-grade performance required for the harsh environments of Glamis, Pismo, or Silver Lake. Don''t let inferior rubber limit your weekend; upgrade to a tire that was designed from the ground up for the unique demands of the sand.

FITMENT

• Sand Rails: Ideal for lightweight 2-seat and 4-seat tube chassis configurations.
• Dune Buggies: Perfect for fiberglass body buggies like the Myers Manx or Berrien styles.
• Baja Beetles: Fits modified VW Beetles with widened fenders and 15-inch off-road wheels.
• Mini Buggies: Excellent for high-horsepower UTV-based custom builds or eco-tec powered rails.
• Vintage Off-Road: Fits classic 1960s and 1970s era sand dragsters and play cars.

TECHNICAL SPECIFICATIONS

• Overall Height: 29 Inches (inflated).
• Section Width: 13-1/2 Inches.
• Rim Diameter: 15 Inches.
• Recommended Rim Width: 10 Inches to 12 Inches for optimal profile.
• Tread Style: Full-width sand paddles with "Sandviper" V-profile design.
• Weight: Approximately 44 lbs.
• Construction: High-strength rubber compound designed for UV resistance and sand abrasion.
• Part Number: SV1500P.

PRO TIPS FROM THE SHOP

Tip 1: Dialing in Your Air Pressure

To get the most out of your Sandviper tires, air pressure is your most valuable tuning tool. For maximum flotation in soft, powdery sand, we recommend starting between 8 and 10 PSI. This allows the sidewall to flex, creating a larger "contact patch" or footprint. However, if you are running in wetter, heavier sand, you might increase this to 12 PSI to prevent the tire from "rolling" on the rim during high-speed cornering. Always use a low-pressure tire gauge for accuracy, as standard gas station gauges are often unreliable at these low levels. Never run these tires on hard-packed dirt or asphalt, as it will cause premature wear to the paddles and can lead to structural failure.

Tip 2: Matching Rim Width to Performance

While these tires can fit a range of rims, we strongly recommend a 12-inch wide wheel for the best performance profile. Using a 12-inch rim flattens the tread face, ensuring that every paddle makes full contact with the sand across its entire width. If you use a narrower 10-inch rim, the tire will "crown" in the center, which reduces the effective surface area of the paddles and causes the center of the tire to wear faster. A wider rim also provides better lateral stability, which is crucial when you are side-hilling or carving through a bowl at high speeds. Always ensure your wheels are "bead-lock" style if you plan on running extremely low pressures under high horsepower loads.

Tip 3: Protecting Your Drivetrain

Paddle tires provide a massive amount of "bite," which puts significantly more stress on your transaxle and CV joints than a standard knobby tire. If you are running a stock VW swing axle or IRS transmission, be mindful of "shock loading" the drivetrain. Avoid high-RPM clutch dumps on starts, as the Sandviper''s 13-1/2 inch width won''t spin as easily as a dirt tireit will hook up and transfer all that force directly to your spider gears and axles. We recommend pairing these tires with heavy-duty chromoly axles and high-quality CV joints (like the 930 or 934 series) to ensure your day at the dunes doesn''t end with a broken transmission. Remember, the tire is designed to push the car, but your drivetrain has to be ready to handle the traction!
