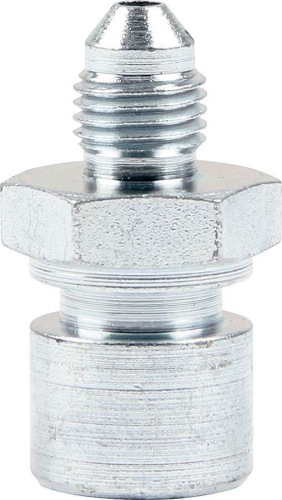

Brake Line Adapters -3 to 3/16 Inverted Flare 2pk ALL50100

OVERVIEW

When you are engineering a high-performance braking system for an air-cooled VW, dune buggy, or custom sand rail, the transition between your rigid hard lines and your flexible braided stainless hoses is a critical junction that demands absolute precision. These Allstar Performance ALL50100 brake line adapters provide the professional-grade solution for connecting standard 3/16-inch inverted flare hard lines to -3 AN braided lines. Unlike flimsy universal fittings that can vibrate loose or leak under the high-pressure demands of a panic stop, these steel adapters feature a robust bulkhead design. This allows you to hard-mount the connection point directly to your chassis or a specialized mounting tab, ensuring that your brake plumbing remains stationary even during extreme suspension travel or high-vibration off-road racing. By securing the junction to the frame, you eliminate the risk of line fatigue and provide a clean, organized appearance that reflects the quality of your build.

Construction and durability are paramount when it comes to hydraulic systems, and these Allstar adapters are built to exceed industry standards. Manufactured from high-strength steel with a corrosion-resistant finish, they are designed to withstand the harsh environments that VW enthusiasts frequently encounter, from salty coastal roads to the abrasive sands of the Glamis dunes. The bulkhead portion is designed to fit perfectly into a 5/8-inch hole, providing a snug fit that, when paired with a standard retainer clip, creates a permanent anchor point for your braking system. This 2-pack is the ideal choice for builders performing disc brake conversions or installing cutting brakes, where moving from the metric-influenced stock plumbing to the more versatile AN standard is often a necessity. Trusting your stopping power to anything less than these heavy-duty steel adapters simply isn''t an option for a master builder who values safety and performance above all else.

FITMENT

These adapters are universal in nature but are most commonly utilized in custom air-cooled VW applications where the braking system has been upgraded or modified. They are compatible with the following vehicles when using 3/16-inch inverted flare hard lines and -3 AN flex hoses:

• VW Beetle (Type 1): All years and models utilizing custom hard lines or domestic-style master cylinder conversions.
• VW Karmann Ghia: 1956 through 1974 models during performance brake upgrades.
• VW Bus (Type 2): 1950 through 1979, specifically useful for custom lowered or narrowed beam setups.
• VW Type 3 (Squareback, Fastback, Notchback): All years for custom hydraulic routing.
• VW Thing (Type 181): Perfect for ruggedized off-road brake plumbing.
• Dune Buggies & Sand Rails: All custom chassis (Meyers Manx, Berrien, etc.) requiring bulkhead pass-throughs.
• Baja Bugs: Essential for long-travel front ends and custom rear trailing arm setups.

SPECS

• Material: High-Strength Carbon Steel for maximum pressure resistance.
• Finish: Zinc-plated for superior corrosion and rust protection.
• Adapter Side A: -3 AN Male (Standard 37-degree flare).
• Adapter Side B: 3/16-Inch Inverted Flare Female (3/8-24 internal thread).
• Fitting Style: Bulkhead mount for secure chassis attachment.
• Mounting Hole Diameter: Requires a 5/8-inch (0.625") hole for installation.
• Quantity: Pack of 2 adapters.
• Application: High-pressure hydraulic brake systems and clutch lines.

PRO TIPS

1. Secure the Bulkhead Properly

To get the most out of these bulkhead adapters, never let them hang freely in mid-air. You should always mount them through a dedicated steel mounting tab welded or bolted to the chassis. Use a standard 5/8-inch brake line "C" clip or a specialized bulkhead nut to lock the fitting into place. This prevents the weight of the braided hose from pulling on the inverted flare hard line, which is the leading cause of cracked flares and slow hydraulic leaks in custom VW builds.

2. Verify Your Thread Pitch

While many aftermarket VW master cylinders and line kits use the 3/16-inch (3/8-24) inverted flare standard, original German Varga or ATE components often use 10mm x 1.0 metric threads. Before installation, ensure your hard line nuts thread smoothly into the female end of the adapter by hand. If you feel resistance, do not force it; you may be trying to mix metric and SAE threads, which will strip the adapter and compromise your braking system safety.

3. Use a Flare Nut Wrench for Final Torque

When tightening your 3/16-inch hard line into these adapters, always use a dedicated flare nut wrench (also known as a line wrench). Because these adapters are made of steel, they can handle significant torque, but the nuts on your brake lines are often made of softer materials. A standard open-end wrench can easily round off the hex, making future maintenance a nightmare. Ensure the inverted flare is seated perfectly centered before applying final torque to achieve a drip-free seal every time.
