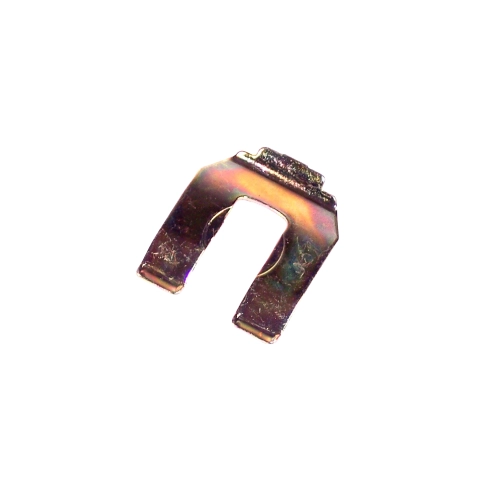

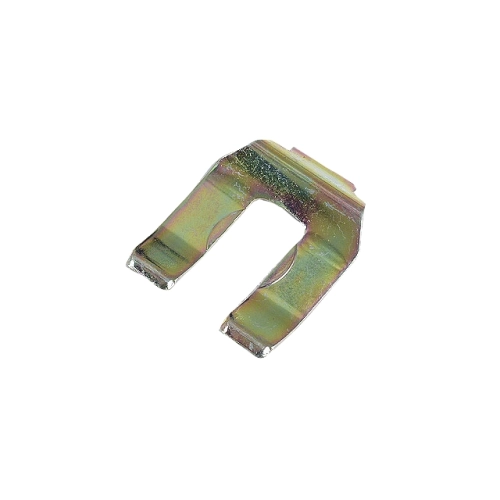

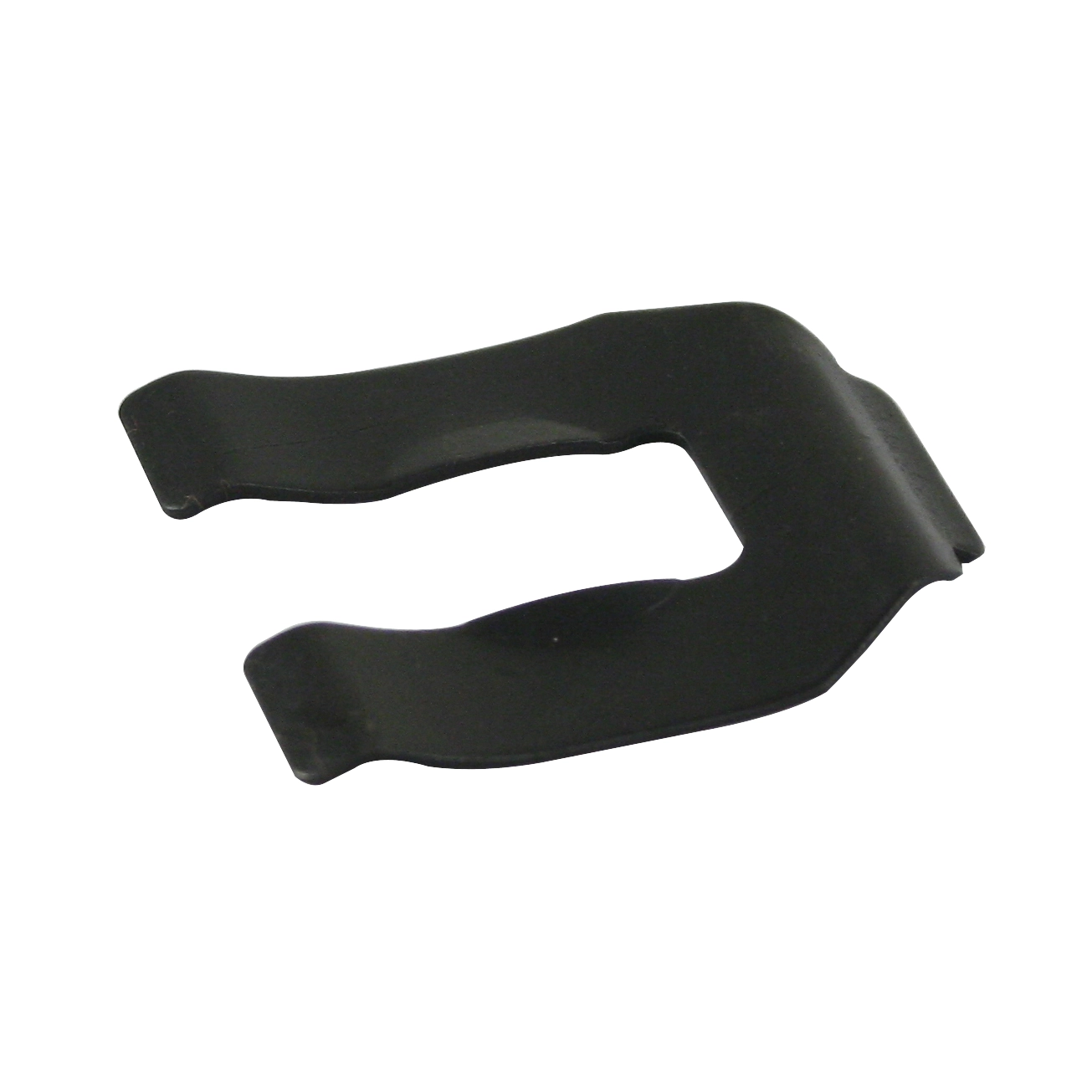

Brake Hose Bracket Clip, for All Aircooled VW 50-79, Sold Ea

OVERVIEW

When it comes to the safety and reliability of your vintage Volkswagen, it is often the smallest components that carry the heaviest responsibility. The Brake Hose Bracket Clip, part number 113-611-715A, is a critical hardware piece designed to lock your flexible brake hoses firmly into the mounting brackets located on the floor pan or suspension components. Over time, original clips become rusted, brittle, or simply disappear during a restoration project. Leaving these clips out or using compromised hardware is a recipe for disaster; without them, your brake lines are free to vibrate and rub against the sharp edges of the mounting brackets. This constant friction can lead to premature wear, thinning of the hose wall, and eventually, a catastrophic brake fluid leak that could leave you without stopping power when you need it most.

At Appletree Automotive, we understand that a proper brake overhaul involves more than just new shoes and master cylinders. This high-quality steel clip is manufactured to precise OEM specifications to ensure a tight, snap-fit connection that holds your rubber or braided stainless steel lines in a fixed position. Whether you are building a show-quality Karmann Ghia, a rugged off-road Dune Buggy, or maintaining a daily-driver Super Beetle, these clips provide the security necessary to handle the rigors of the road. Most air-cooled VW models require four of these clips to complete a full vehicle settwo for the front and two for the rearensuring that every transition from hard line to soft hose is properly supported and isolated from engine and road vibrations.

FITMENT

• VW Beetle (Standard): 1950 through 1977
• VW Super Beetle: 1971 through 1979
• VW Karmann Ghia: 1956 through 1974
• VW Bus (Type 2 / Transporter): 1950 through 1979
• VW Type 3 (Squareback, Fastback, Notchback): 1961 through 1973
• VW Thing (Type 181): 1973 through 1974
• Dune Buggies and Sand Rails: All models utilizing standard VW pan or suspension brackets

SPECS

• Part Number: 113-611-715A
• Material: Heavy-duty stamped spring steel
• Finish: Zinc-plated for superior corrosion and rust resistance
• Application: Secures brake hose to chassis or trailing arm brackets
• Quantity Required: Typically 4 per vehicle (Sold Individually)
• Compatibility: Works with stock rubber hoses and aftermarket braided stainless steel lines
• Weight: 0.1 lbs

PRO TIPS

Proper Tension and Installation

When installing these clips, it is important to ensure they are fully seated into the groove of the brake hose fitting. We recommend using a pair of wide-jaw pliers or a small hammer and a flathead screwdriver to gently tap the clip into place until it clicks firmly against the bracket. If the clip feels loose, check your bracket for bending or debris. A loose clip allows the hose to rotate and vibrate, which defeats the purpose of the hardware. Never reuse a clip that has been bent out of shape or lost its spring tension, as it won''t provide the clamping force necessary to keep the line stationary during suspension travel.

Preventing Future Corrosion

Because these clips are located in areas highly exposed to road salt, moisture, and grime, they are prone to "freezing" onto the bracket over several years. To make future maintenance easier, apply a very thin film of anti-seize or synthetic brake grease to the flat surface of the clip before sliding it into the bracket. This doesn''t affect the holding power but creates a moisture barrier that prevents the steel clip from rusting to the steel bracket. This is especially helpful for those living in coastal areas or regions where roads are salted in the winter.

Safety Inspection During Brake Bleeding

Every time you have your wheels off for a brake adjustment or fluid flush, take a moment to inspect these clips. Vibration from off-roading in a woods buggy or driving on rough city streets can occasionally cause a poorly seated clip to back out. Ensure the clip is still centered and that there are no signs of "polishing" on the brake hosea shiny spot on the hose is a clear indicator that the line is rubbing against the bracket. If you see any movement, replace the clip immediately. It is a two-dollar part that protects a multi-thousand-dollar investment and, more importantly, your safety.
