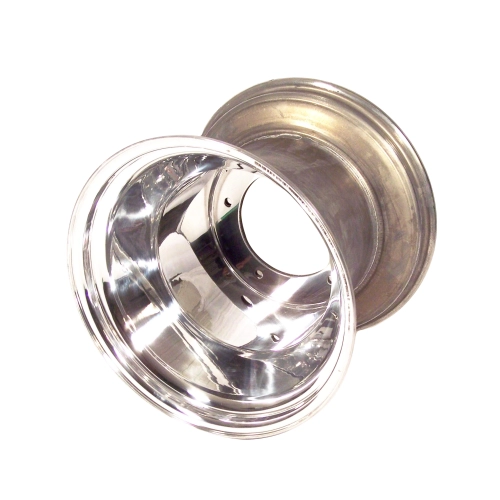

15 X 10 Aluminum Rim, 5 On 205mm, 2 Backspacing

OVERVIEW

When it comes to conquering the dunes or dominating the off-road trails, every pound of unsprung weight you can shed translates directly into better suspension response and faster acceleration. The Douglas Technologies 15 X 10 Aluminum Rim is engineered specifically for the air-cooled enthusiast who demands the ultimate balance of lightweight performance and rugged durability. Constructed from high-grade .190 wall thickness aluminum, these wheels are roughly half the weight of traditional steel rims. This significant reduction in mass allows your shocks to work more efficiently, keeping your tires planted on the terrain rather than bouncing over it. Whether you are building a high-horsepower sand rail or a classic woods buggy, these wheels provide the structural integrity needed to handle the stresses of off-road maneuvers while maintaining a show-quality polished finish that looks as good as it performs.

The 5 on 205mm bolt pattern, commonly known as the ''Wide 5,'' is the iconic standard for early Volkswagen platforms and custom off-road chassis. This specific model features a 2-inch backspacing, which creates a deep-dish look and a wider track width. By pushing the wheel further away from the vehicle center, you gain increased lateral stability and a more aggressive stance that is essential for high-speed sand carving. It is important to note that these rims are designed strictly for off-road use and are not D.O.T. approved for highway travel. Because the aluminum center is thicker than a standard steel wheel, these rims require a specific aluminum wheel stud kit for proper installation. When you choose Douglas Wheel (DWT), you are investing in a legacy of racing excellence that has been the backbone of the VW off-road community for decades.

FITMENT

• Volkswagen Beetle: 1946 through 1966 (Models equipped with original 5x205mm drums).
• Volkswagen Karmann Ghia: 1956 through 1966 (Models equipped with original 5x205mm drums).
• Volkswagen Type 2 Bus: 1950 through 1970 (Models equipped with original 5x205mm drums).
• Volkswagen Thing (Type 181): Models converted to Wide-5 bolt patterns.
• Dune Buggies: Meyers Manx, Berry Mini T, and other kit cars using VW Type 1 floor pans.
• Sand Rails & Chassis: Berrien, Chenowth, and custom tube chassis utilizing Wide-5 hubs or disc brake conversions.
• Off-Road Applications: Ideal for Baja Bugs with widened fenders and long-travel rear suspension setups.

SPECS

• Diameter: 15 Inches.
• Width: 10 Inches.
• Bolt Pattern: 5 on 205mm (Wide 5).

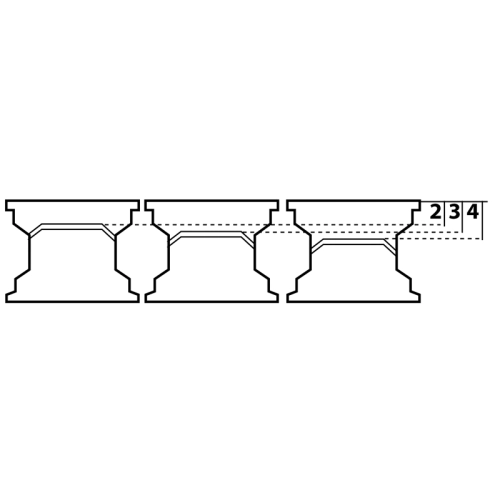

• Backspacing: 2 Inches (Minimum Offset).
• Material: .190 Wall Thickness Heat-Treated Aluminum.
• Finish: High-Luster Polished Aluminum.
• Weight: Approximately 11.05 lbs (Significantly lighter than steel equivalents).
• Construction: Rolled lip for added strength and bead retention.
• Safety Rating: Not D.O.T. Approved (Off-Road Use Only).
• Valve Stem: Standard size hole (Valve stem sold separately).

PRO TIPS

1. Always Use the Correct Stud Kit

One of the most common mistakes builders make is trying to use standard VW lug bolts or short studs with aluminum rims. Because the center flange of a Douglas .190 wheel is much thicker than a stamped steel wheel, you MUST use a dedicated aluminum wheel stud kit. These kits feature longer studs and specific nuts with the correct taper to ensure maximum thread engagement and clamping force. Using the wrong hardware can lead to the wheel loosening during operation, which can damage the lug holes or, worse, result in a wheel failure on the trail. Don''t risk your safetymatch these wheels with a high-quality 12mm or 14mm stud kit designed specifically for aluminum wheels.

2. Verify Clearance with 2-Inch Backspacing

The 2-inch backspacing on a 10-inch wide rim is designed to push the wheel outward, creating a wider footprint. Before mounting tires, do a dry fit on your rear hubs to check for clearance against your fenders and trailing arms. In many stock Beetle applications, a 10-inch wide wheel with this offset will stick out past the factory fender line, making it perfect for a Baja Bug or a buggy, but potentially problematic for a stock-bodied car without flared fenders. Also, ensure your brake lines and emergency brake cables are secured and won''t rub against the inner barrel of the wheel during suspension travel.

3. Maintain the Polished Luster

Since these wheels are made of high-quality raw aluminum, they don''t have a clear coat that can chip or yellow. However, exposure to salt, mud, and moisture can cause oxidation over time. To keep them looking brand new, we recommend applying a high-quality aluminum sealant or wax immediately after purchase. After a weekend in the sand or dirt, wash the wheels with mild soap and water, and use a dedicated aluminum polish to bring back the mirror finish. Regular maintenance not only keeps your ride looking sharp but also allows you to inspect the wheels for any nicks or gouges that might have occurred during hard off-road use.
