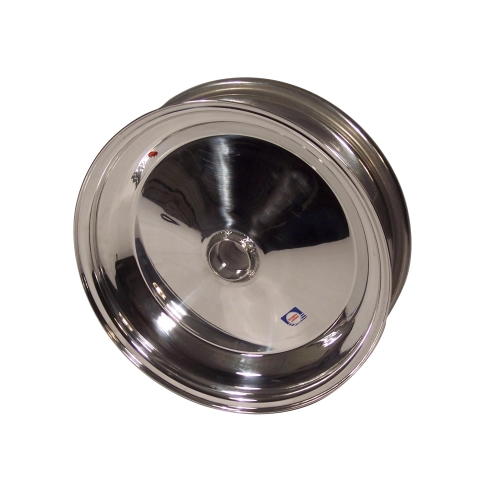

Spindle Mount Rim, Fits King Pin Spindle, 4 Inch Wide

OVERVIEW

When it comes to shaving every possible ounce of unsprung weight from the front end of your air-cooled Volkswagen or custom sand rail, nothing beats the precision-engineered spindle mount rim from Douglas Technologies. These 15x4 inch aluminum wheels are specifically designed for enthusiasts who demand maximum performance in off-road, sand, and drag racing environments. By mounting the wheel directly onto the spindle, you effectively eliminate the heavy wheel hub, brake drum, or rotor assembly. This massive reduction in rotating mass allows your suspension to react significantly faster to terrain changes, providing a competitive edge in sand drag racing and technical dune climbing where agility is everything. Crafted from high-grade aluminum with a .125-inch wall thickness, these wheels offer the ideal compromise between structural integrity and extreme weight savings, ensuring your VW-based project remains light on its feet and incredibly responsive.

Beyond the undeniable performance benefits, the Douglas Technologies spindle mount rim delivers a clean, professional aesthetic that defines the look of a serious high-performance machine. One of the most significant upgrades in this model is the integration of specialized sealed roller bearings. Unlike traditional tapered bearings that require messy grease packing and frequent pre-load adjustments, these sealed units are designed for ease of maintenance and superior longevity in harsh, sandy environments. They provide a smooth, low-friction roll that keeps your front end spinning freely without the constant need for teardowns. Whether you are building a show-quality dune buggy or a dedicated desert sand rail, these rims provide the technical superiority and polished finish that Appletree Auto customers have relied on for decades. Please remember that these are high-performance racing components designed for off-road use only and are not D.O.T. approved for street use.

FITMENT

This spindle mount rim is designed specifically for Volkswagen King Pin (Link Pin) style front ends. It will not fit later Ball Joint spindles. Common fitments include:

• VW Beetle: All models equipped with King Pin front ends (generally 1965 and earlier).
• VW Karmann Ghia: All models equipped with King Pin front ends (generally 1965 and earlier).
• Sand Rails & Dune Buggies: Any custom chassis utilizing a VW King Pin style front beam and spindles.
• Off-Road Frames: Compatible with Chenowth, Berrien, and Warrior frames using standard King Pin spindles.
• Custom Drag Racers: Lightweight front-end setups using the early VW King Pin spindle architecture.

SPECS

• Diameter: 15 Inches
• Width: 4 Inches
• Spindle Compatibility: VW King Pin (Link Pin)
• Material: High-Strength .125 Wall Aluminum
• Finish: Polished Aluminum
• Weight: Approximately 5.05 lbs
• Approval: Not D.O.T. Approved (Off-Road/Racing Use Only)
• Quantity: Sold Individually

PRO TIPS

1. Proper Spindle Preparation and Installation

Before installing your new Douglas Technologies spindle mount wheels, it is absolutely critical to inspect your King Pin spindles for any burrs, nicks, or old grease buildup. Since these wheels utilize sealed roller bearings, the fitment onto the spindle shaft should be snug but smooth. Use a fine-grit emery cloth to lightly polish the spindle surface if you encounter resistance. When tightening the spindle nut, remember that you aren''t seating a traditional tapered bearing. You want to ensure there is zero side-to-side play, but you must avoid over-torquing the nut, which can put unnecessary lateral pressure on the sealed bearing races. Always use a new cotter pin to lock the nut in place, as a loose spindle nut on a spindle-mount setup can lead to catastrophic wheel loss.

2. Tire Selection for Maximum Performance

The 4-inch width of these rims is optimized for "razor" or "ribbed" sand tires, which are the gold standard for directional control in the dunes. If you are using these for sand drag racing, pairing them with a lightweight 15-inch front runner tire will minimize rolling resistance and help you achieve faster ETs. However, because these rims are lightweight .125 wall aluminum, you should avoid "airing down" to extremely low pressures if you are running in rocky terrain. Maintaining a consistent tire pressure prevents the rim edges from taking direct impacts that could dent or deform the aluminum. For most sand applications, a pressure range of 8 to 12 PSI provides an excellent footprint while protecting the integrity of the wheel.

3. Maintenance and Safety Inspections

Because these wheels are designed for off-road and racing use, they should be part of your "pre-flight" inspection before every trip to the dunes or the track. Check the sealed bearings for any signs of grittiness or play by lifting the front end and spinning the wheel by hand. While the bearings are sealed, the fine dust found in desert environments can eventually penetrate even the best seals over several seasons. Additionally, because these wheels lack the mass of a traditional hub and drum, they don''t dissipate heat in the same way. If you have modified your setup to include spindle-mount brakes, ensure that the heat transfer isn''t affecting the bearing grease. Finally, always clean the polished surface with a non-abrasive aluminum cleaner to prevent oxidation and keep your ride looking its best.
