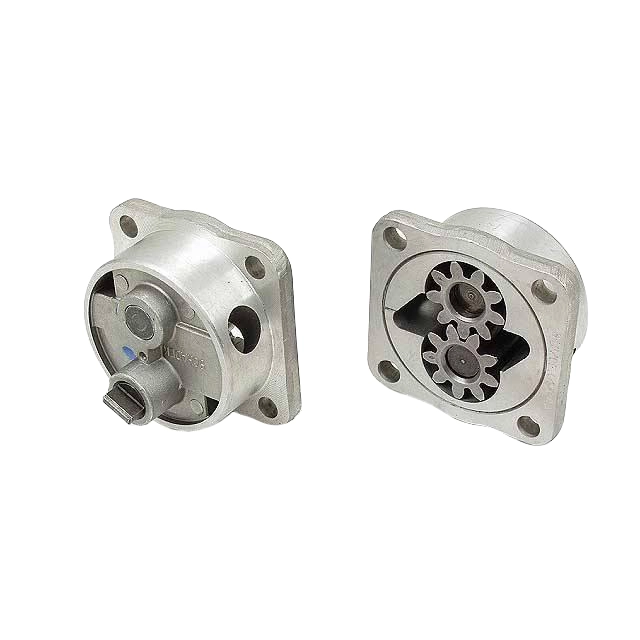

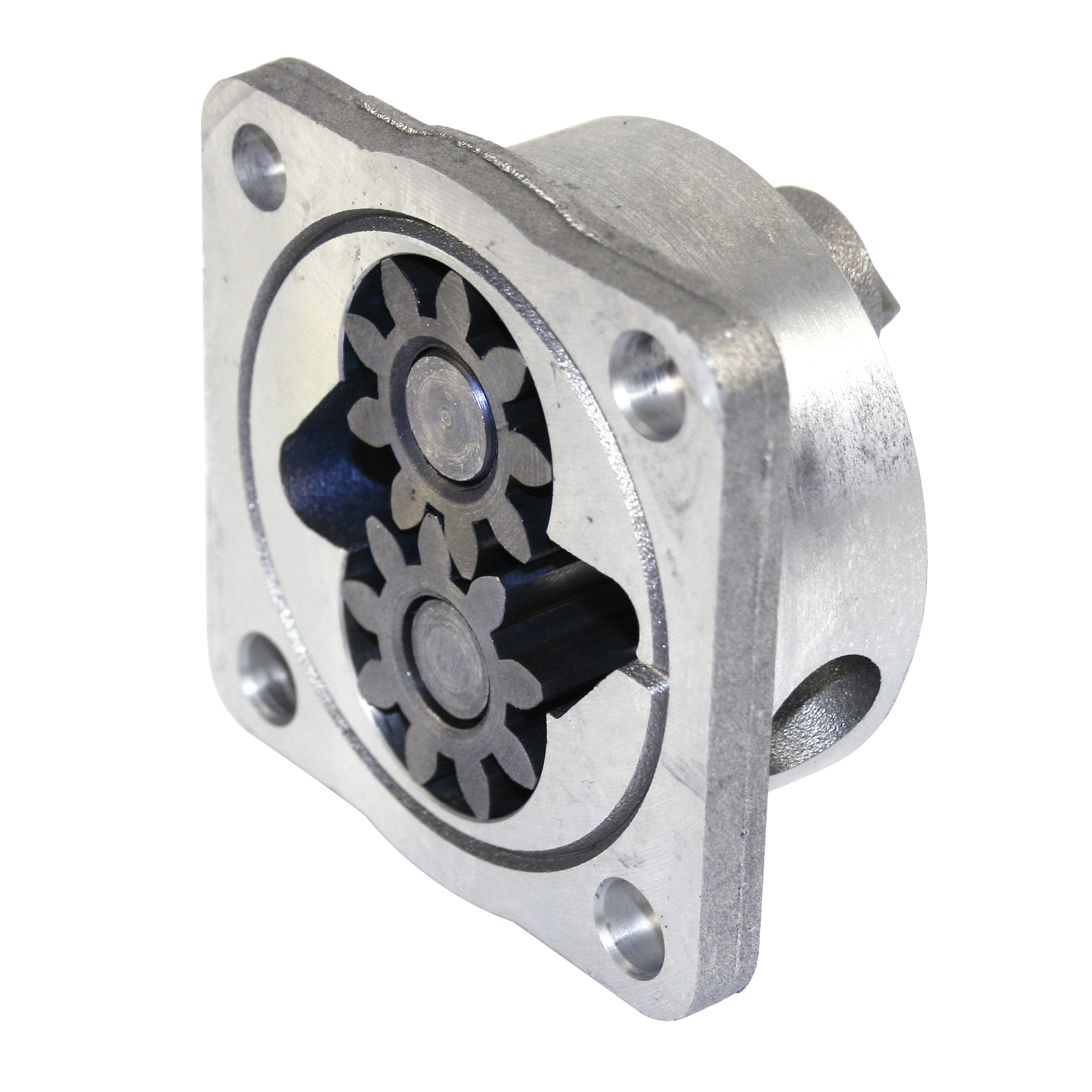

IAP 111-115-107AHD Oil Pump, 30mm Gears, 8mm Bolt for 56-70 Flat Cams

        Oil Pump, 30mm Gears, 8mm Bolt for 56-70 Flat Cams

        111-115-107AHD

        Oil Pump, 8mm Pump Studs, 111-115-107AHD fits late Type 1/2/3s with 1500-1600cc based engines. We feel 30mm pumps are over sized in most cases, a 26mm is more than big enough Too much pressure causes hot oil!
        Clearances are tight and they wear well. They also work with 3 AND 4 bolt cams! (we tell you how) We recommend 21 or 26mm for stock and mild engines with the T-1 based engine, and 30mm for T-1 and 3 race cars. WARNING: a 30mm pump in a Type 1 or Type 3 engine can blow out your oil cooler or cooler seals with 30, 40, or 20-50 weight oil when cold if you don't modify the pressure relief system! Many people are not aware that VW machines the oil pump bore (in the case) to about 2.7559-2.7570?, and the pump body should measure 2.7570? . This results in a perfect or SLIGHT interference fit, which is why you need a puller to get it out (if you don't need a puller, you have an undersized pump).

        These pumps provide much more pressure than inches stock inches unmodified pumps! With these tight tolerances, you MUST be careful you don't overwhelm the stock oil pressure relief system. These pumps can develop well over 200psi on with thick oil and cold weather!

        Engine: 1500-1600cc thru 1970
        Cam Type: Flat
        Gear Size: 26mm
        Not rated yet
        0
        IAP
        Regular Product
          • 17% off
          Market price:$35.96save $6.27
        • $29.69


        OR

        On Order from Supplier Expected by 06-13-2025

          • SKU
            111-115-107AHD
          • Weight
            0.75 lbs
          • Dimensions (L x W x H)
            3.5 x 3 x 3 in
          • Barcode
            756632181463
          • Manufacturer Part #
            111115107AHD
        • Availability
          Temporarily Out Of Stock
        • Manufacturer
          IAP
        Oil Pump, 8mm Pump Studs, 111-115-107AHD fits late Type 1/2/3s with 1500-1600cc based engines. We feel 30mm pumps are over sized in most cases, a 26mm is more than big enough Too much pressure causes hot oil!
        Clearances are tight and they wear well. They also work with 3 AND 4 bolt cams! (we tell you how) We recommend 21 or 26mm for stock and mild engines with the T-1 based engine, and 30mm for T-1 and 3 race cars. WARNING: a 30mm pump in a Type 1 or Type 3 engine can blow out your oil cooler or cooler seals with 30, 40, or 20-50 weight oil when cold if you don't modify the pressure relief system! Many people are not aware that VW machines the oil pump bore (in the case) to about 2.7559-2.7570?, and the pump body should measure 2.7570? . This results in a perfect or SLIGHT interference fit, which is why you need a puller to get it out (if you don't need a puller, you have an undersized pump).

        These pumps provide much more pressure than inches stock inches unmodified pumps! With these tight tolerances, you MUST be careful you don't overwhelm the stock oil pressure relief system. These pumps can develop well over 200psi on with thick oil and cold weather!

        Engine: 1500-1600cc thru 1970
        Cam Type: Flat
        Gear Size: 26mm
