Distributor Drive Pinion, for Type 1 VW Engines

Overview

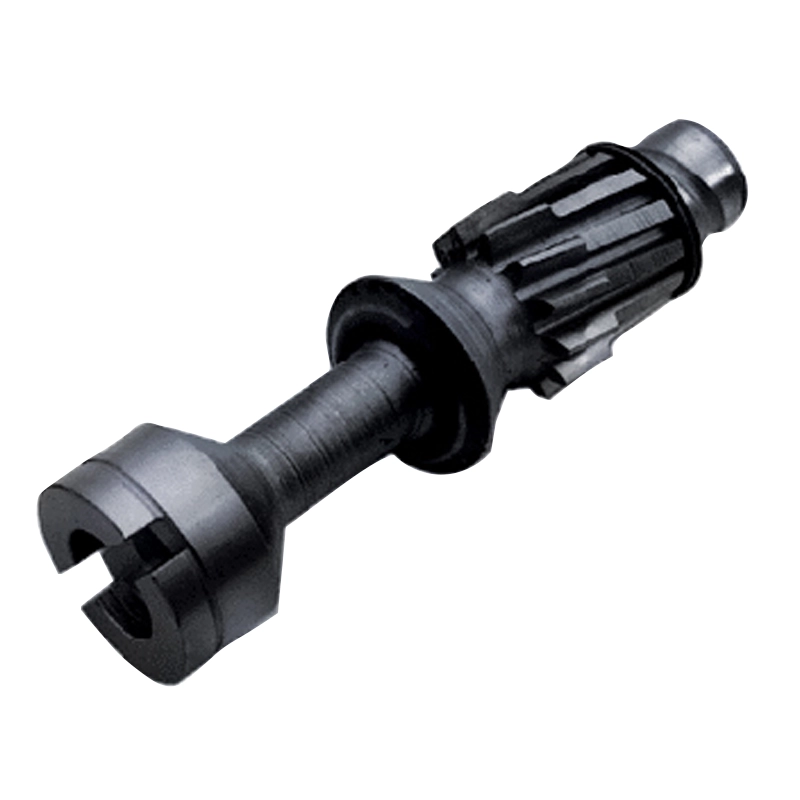

The distributor drive pinion is an unsung hero of the air-cooled Volkswagen engine, serving as the mechanical bridge between the rotation of the crankshaft and the precise delivery of spark. Meticulously engineered to mate with the brass timing gear located on the crankshaft, this pinion gear ensures that your ignition timing remains rock-steady even under high-RPM conditions. Over decades of service, the original drive gears can develop chipped teeth, galling, or excessive play, leading to erratic timing and a frustrating loss of engine efficiency. Replacing this critical component during a rebuild is essential for anyone looking to restore the factory-spec reliability and smoothness that defined the classic VW experience. It is the heart of the engine''s internal timing system, providing the mechanical interface for both the distributor and the mechanical fuel pump.

Beyond its primary role in ignition, this drive pinion is responsible for reciprocating the fuel pump pushrod, making it a dual-purpose component vital for both spark and fuel delivery. This IAP-sourced gear is manufactured to exacting 113-105-231B specifications, utilizing high-grade hardened steel to withstand the constant friction and heat of the engine case environment. It is designed to fit the standard 1200cc through 1600cc engine cases, ensuring a perfect mesh with the crankshaft gear. Whether you are building a stock 1600cc dual-port for a daily driver or a high-performance weekend warrior, this distributor drive pinion provides the precise engagement necessary to keep your Beetle, Ghia, or Bus running at its absolute peak performance without the worry of ignition "wander" caused by worn-out teeth.

Fitment

• VW Beetle: 1946 through 1977 (Sedan and Convertible)
• VW Super Beetle: 1971 through 1979
• VW Karmann Ghia: 1956 through 1974
• VW Bus / Transporter: 1950 through 1971 (Upright Type 1 Style Engines)
• VW Type 181 Thing: 1973 through 1974
• Engine Compatibility: 1200cc, 1300cc, 1500cc, and 1600cc (Single and Dual Port)
• Industrial Engines: Fits various Type 1 based industrial power units.

Technical Specifications

• OEM Part Number: 113-105-231B
• Material: High-Strength Hardened Steel Alloy
• Gear Interface: Precision Helical Cut for Brass Crankshaft Gear Mating
• Primary Function: Drives Distributor and Actuates Fuel Pump Pushrod
• Weight: Approximately 0.55 lbs
• Quantity: Sold Individually
• Installation Location: Internal Engine Case (Requires removal of Distributor)

Pro Tips from the Appletree Garage

1. Master the Offset Drive Slot Timing

When installing this drive pinion, the "offset" slot at the top is the most critical detail. This slot is intentionally off-center so the distributor can only be installed in one orientation. Before you drop the gear into the case, ensure the engine is set to Top Dead Center (TDC) for Cylinder Number 1. The smaller segment of the offset slot should face toward the pulley (the back of the car) and the slot itself should be roughly parallel to the engine crank centerline. If you drop it in a tooth off, you will find it impossible to time the engine correctly later, or your distributor wires will be pointing in the wrong directions. Always use a long bolt or a dedicated distributor drive extraction tool to lower it gently into place.

2. Don''t Forget the Critical Shim Washers

One of the most common mistakes during engine assembly is forgetting the two small shim washers that sit at the bottom of the distributor drive pinion bore. These washers prevent the hardened steel pinion from grinding directly against the magnesium or aluminum engine case. Without these washers, the drive gear will eventually "sink" into the case, causing improper mesh with the brass crankshaft gear and potentially sending metal shavings throughout your oiling system. Always inspect the bore for wear and ensure two fresh washers are coated in assembly lube and placed at the bottom before the pinion gear is installed.

3. Inspect the Brass Crankshaft Gear Simultaneously

The distributor drive pinion is only half of the equation. Because this steel pinion gear mates directly with the brass timing gear on the crankshaft, they wear together as a set. If you are replacing a damaged or heavily worn pinion gear, take the time to inspect the brass gear on the crank using a bright light through the distributor hole. If the brass teeth are sharp, "hooked," or pitted, a new steel pinion gear will be chewed up rapidly. In a perfect world, these components should be replaced together during a full teardown, but if you are doing an in-car swap, ensure the brass gear is still healthy enough to support the new pinion teeth.
