Distributor Drive Spring, for All Years Aircooled VW

Overview of the Air-Cooled VW Distributor Drive Spring

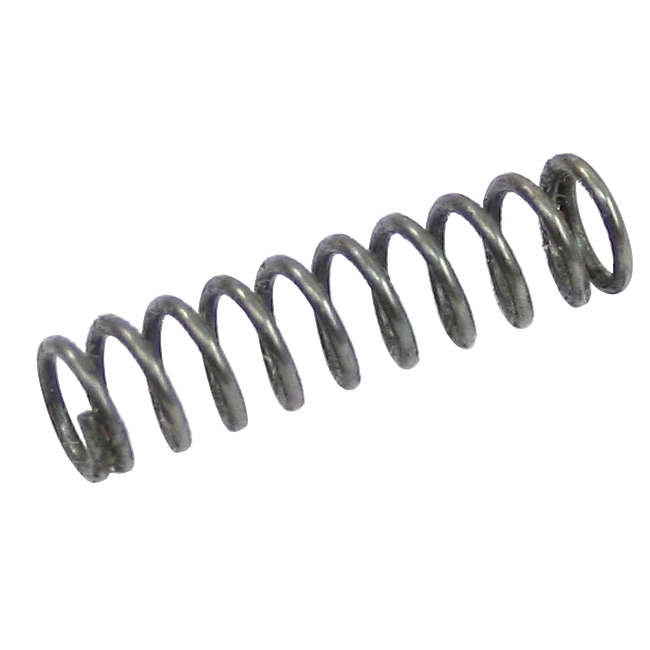

In the world of vintage Volkswagen maintenance, it is often the smallest, most unassuming components that hold the key to a smooth-running engine and precise ignition timing. The EMPI Distributor Drive Spring is a critical safety and performance component that is frequently overlooked during engine assemblies or distributor swaps. This small but mighty compression spring sits deep within the distributor drive pinion, exerting constant upward pressure against the distributor shaft. By maintaining this tension, the spring ensures that the distributor tang remains firmly seated within the drive gear slot, preventing the distributor from "dancing" or lifting during high-RPM operation. Without this vital piece of hardware, your ignition timing can become erratic as the distributor shaft fluctuates, leading to poor throttle response, mysterious misfires, and potential mechanical damage to the drive gear or the distributor housing itself.

Constructed to meet or exceed original equipment manufacturer standards, this EMPI distributor drive spring is a "must-have" for any serious engine build or tune-up. Whether you are running a bone-stock 1200cc Beetle or a high-performance 2276cc dual-carbureted monster, the physics of the drive pinion remains the same. The helical cut of the drive gears naturally wants to push the distributor upward as the engine rotates; this spring acts as the necessary counter-force to keep everything locked in place. When you are chasing down a mysterious "flat spot" in your acceleration or trying to stabilize a wandering timing mark on your crank pulley, don''t forget to check if this spring is missing or fatigued. It is a small investment that provides massive peace of mind, ensuring that your air-cooled VW stays on the road and out of the shop.

Vehicle Fitment and Compatibility

This distributor drive spring is designed for a universal fit across the entire range of air-cooled Volkswagen engines. If your engine utilizes a standard distributor drive pinion, this is the correct part for your application.

• Volkswagen Type 1: Beetle and Super Beetle (All Years 1946-1979)
• Volkswagen Type 1: Karmann Ghia (All Years 1956-1974)
• Volkswagen Type 2: Bus, Transporter, Kombi, and Microbus (All Years 1950-1979)
• Volkswagen Type 3: Fastback, Squareback, and Notchback (All Years 1961-1973)
• Volkswagen Type 4: 411 and 412 (All Years 1968-1974)
• Volkswagen Thing: (All Years 1973-1974)
• Custom Applications: Sand Rails, Dune Buggies, and Trikes utilizing VW Air-Cooled cases (1200cc, 1300cc, 1500cc, and 1600cc based engines).

Technical Specifications and Materials

Precision is paramount when dealing with internal engine components. This spring is manufactured to exacting tolerances to ensure it fits perfectly inside the drive pinion bore.

• Reference Part Number: 111-105-233 (111105233)
• Manufacturer: EMPI
• Material: High-tensile spring steel for maximum fatigue resistance.
• Finish: Corrosion-resistant coating to withstand the harsh environment of the engine crankcase.
• Installation Location: Placed inside the center of the distributor drive pinion gear, underneath the distributor shaft.
• Quantity: Sold individually (1 piece required per engine).
• Function: Provides axial tension to keep the distributor shaft engaged with the drive gear.

Pro Tips for Installation and Maintenance

Tip 1: The "Sticky" Installation Method

One of the biggest risks when installing a new distributor drive spring is accidentally dropping it into the engine case during a distributor swap. To prevent this "engine-pulling" nightmare, apply a small dab of thick assembly lube or heavy grease to the bottom of the spring before dropping it into the drive pinion. The grease acts as a temporary adhesive, keeping the spring centered and preventing it from falling over or bouncing out while you are trying to line up the distributor tang with the drive gear slot. Always use a flashlight to verify the spring is sitting upright before sliding the distributor into place.

Tip 2: Verify the Drive Gear Offset

Before you install the spring and the distributor, always double-check the orientation of your distributor drive pinion. On a standard VW engine at Top Dead Center (TDC) for cylinder number one, the slot in the drive pinion should be roughly parallel to the pulley face, with the smaller "half-moon" side facing toward the pulley. Because the spring provides upward pressure, it can sometimes make it difficult to feel if the distributor tang has fully seated in that offset slot. Once the distributor is in, give it a firm push down and a slight twist; you should feel it "lock" into the slot against the spring tension.

Tip 3: Check for "Ghost" Timing Issues

If you are experiencing inconsistent timing or a timing mark that seems to "jump" around when viewed with a strobe light, your drive spring might be missing or broken. Without the spring, the distributor shaft can move vertically as the engine speed changes, which alters the relationship between the drive gear and the distributor cam. This "axial float" creates timing fluctuations that cannot be tuned out with a screwdriver. If you haven''t looked down your distributor hole lately, pull the unit and verify that the spring is present and has enough tension to push back when compressed. Replacing a 50-year-old tired spring is one of the cheapest ways to stabilize your ignition curve.
