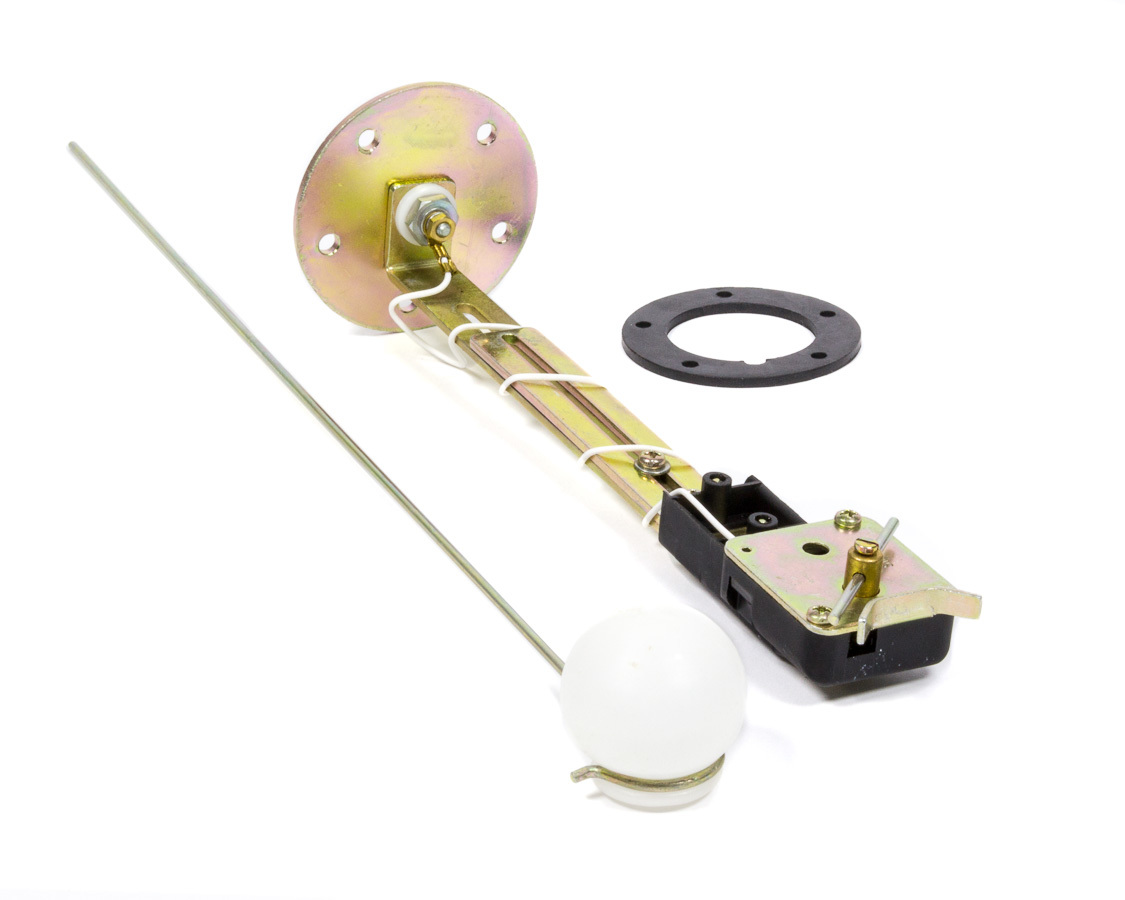

Fuel Tank Sender, Universal, 10-180 OHM

OVERVIEW

Precision fuel monitoring is the backbone of any reliable air-cooled build, and the VDO Universal Fuel Tank Sender is the industry standard for enthusiasts who demand accuracy. Whether you are finishing a ground-up restoration on a classic Beetle or plumbing a custom aluminum cell for a high-performance sand rail, this sender provides the dependable 10-180 ohm signal required by most aftermarket VDO gauges. Unlike cheap, generic alternatives that fluctuate wildly when the fuel sloshes, this VDO unit is engineered with high-quality components designed to provide a steady, linear reading from a bone-dry tank to a complete fill-up. It utilizes the standard SAE 5-bolt mounting pattern, making it a versatile choice for a massive variety of aftermarket and custom fuel tanks found in the VW community.

One of the standout features of this universal sender is its fully adjustable float arm, which allows you to tailor the unit to the specific depth of your fuel reservoir. This flexibility is crucial for custom applications like Manx-style buggies or Baja Bugs where tank dimensions often deviate from stock factory specifications. Constructed with corrosion-resistant materials, this unit is built to withstand the rigors of modern ethanol-blended fuels and the vibration-heavy environment of an air-cooled engine bay. When paired with the proper VDO gauge, you eliminate the "guessing game" at the gas pump, ensuring you spend more time on the dunes or the open road and less time walking with a gas can because your needle was lying to you.

FITMENT

• VW Beetle / Bug: All years (with custom or aftermarket tanks requiring 5-bolt senders).
• VW Karmann Ghia: All years (with 5-bolt flange tank conversions).
• VW Bus / Type 2: 1950-1979 (custom fuel cell applications).
• Dune Buggies & Sand Rails: Ideal for all fiberglass bodies using custom aluminum or poly tanks.
• VW Thing (Type 181): Custom fuel system upgrades.
• Meyers Manx: Fits standard aftermarket 5-bolt buggy tanks.
• Custom Fuel Cells: Any tank utilizing the standard SAE 5-bolt mounting flange.

SPECS

• Resistance Range: 10 Ohms (Empty) to 180 Ohms (Full).
• Mounting Pattern: Standard SAE 5-bolt flange.
• Adjustability: Float arm is adjustable for tank depths ranging from 6 inches to 23 inches.
• Voltage Compatibility: Compatible with 6V, 12V, and 24V electrical systems (Resistance based).
• Terminal Type: #10-32 stud terminal for secure wiring connections.
• Materials: Plated steel mounting plate with high-density foam float and stainless steel arm.
• Required Mounting Kit: Designed for use with P/N V2-2645-1 (Sold separately).
• Application: Compatible with VDO Cockpit, Series 1, and Heritage series fuel gauges.

PRO TIPS

Pro Tip 1: Measure Twice, Cut Once. When adjusting the float arm for your specific tank depth, it is vital to measure the internal height of the tank from the mounting flange to the bottom. We recommend setting the float arm so that it stops about 1/2 inch above the bottom of the tank. This provides a "reserve" reading on your gauge, ensuring that when the needle hits empty, you still have a small amount of fuel left to reach a station, rather than running completely dry just as the needle touches the red line.

Pro Tip 2: Ensure a Robust Ground. Most fuel gauge inaccuracies in air-cooled Volkswagens and fiberglass buggies stem from a poor ground connection. Since the sender works by varying resistance to the ground, any corrosion or loose contact at the mounting flange will cause the gauge to read incorrectly or jump around. If you are mounting this in a fiberglass buggy, you MUST run a dedicated ground wire from one of the five mounting bolts directly to the vehicle''s chassis or the negative battery terminal to ensure a clean signal.

Pro Tip 3: Check for Swing Clearance. Before final installation and tightening of the five mounting bolts, insert the sender into the tank and manually move the float arm through its full range of motion. It is very common in custom baffled tanks or narrow buggy tanks for the float to get hung up on an internal wall or a baffle. Ensure the arm has a clear, unobstructed path from top to bottom so you don''t end up with a gauge that gets "stuck" at a half-tank reading because the float is wedged against the side of the tank.
