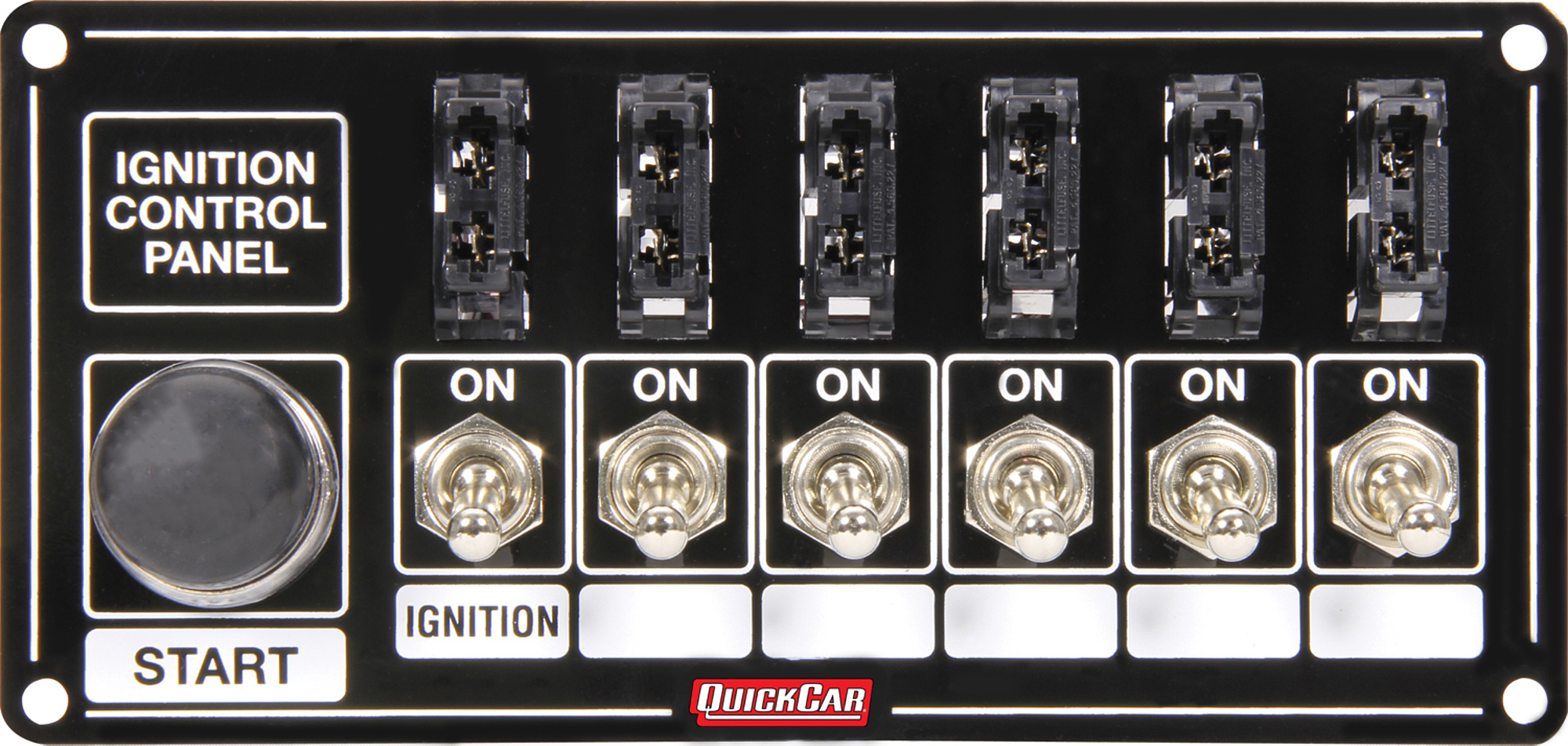

Black Plate, 6 Switches & 1 Button, Fused 50-863

OVERVIEW

When you''re tearing through the dunes or pushing your air-cooled beast to the limit on the track, the last thing you want to worry about is a messy, unreliable electrical system. The QuickCar Racing Products Black Plate Switch Panel is the ultimate solution for the serious VW enthusiast who demands professional-grade control and rugged durability. This isn''t just a panel; it''s a comprehensive command center designed to withstand the high-vibration environments of Baja Bugs, sand rails, and custom street machines. Featuring a sleek black finish, this panel provides a clean, racing-inspired aesthetic that looks right at home in any custom dashboard or center console.

Engineering excellence is at the heart of the QRP 50-863. This unit comes fully assembled and pre-wired, taking the guesswork and frustration out of complex electrical installations. It features one dedicated ignition toggle, a high-response momentary starter button, and five additional accessory switches to power everything from your electric fuel pump and cooling fans to high-intensity off-road lighting. Every single-pole toggle switch is paired with its own integrated fuse block located directly above the switch, ensuring that your critical circuits are protected and easy to service. The main power cables and starter wires are professionally crimped, soldered, and heat-shrunk, providing the kind of electrical integrity you won''t find in DIY setups.

FITMENT

This universal racing switch panel is ideal for custom electrical builds in the following air-cooled Volkswagen applications and off-road vehicles:

• Volkswagen Beetle (All Years): Perfect for custom Baja Bug dashes or gutted race interiors.
• Volkswagen Karmann Ghia: A great upgrade for modified street cars requiring additional accessory control.
• Dune Buggies & Sand Rails: Specifically designed for fiberglass bodies (Meyers Manx style) and tube chassis rails.
• Volkswagen Type 3 (Squareback, Fastback, Notchback): Ideal for performance builds using modern EFI or electric cooling systems.
• Volkswagen Bus / Type 2: Excellent for camper conversions needing centralized accessory switching.
• Custom Off-Road Vehicles: Fits any flat surface in a custom-built 12V DC electrical system.

SPECS

• Brand: QuickCar Racing Products
• Part Number: 50-863 (QRP50-863)
• Panel Material: High-grade aluminum with a durable black finish.
• Total Width: 6-7/8 Inches
• Total Height: 3-1/4 Inches
• Switch Configuration: 1 Ignition Switch, 1 Starter Button, 5 Accessory Switches.
• Fuse Style: Standard automotive blade-style fuse blocks (integrated).
• Wiring Integrity: All main leads are crimped, soldered, and heat-shrunk for maximum conductivity.
• Mounting: Four pre-punched mounting holes for easy installation.
• Connection Type: Rear spade connectors on fuse blocks for accessory output.

PRO TIPS

1. Master the Grounding in Fiberglass Bodies

If you are installing this QuickCar panel in a fiberglass dune buggy or a Manx-style body, remember that the body itself is not a ground. Unlike a steel Beetle chassis, you must run a dedicated, heavy-gauge ground wire from your battery or a central grounding block to the common ground side of your accessories and the panel indicators. Failing to provide a high-quality ground path is the number one cause of flickering lights and weak starter engagement in air-cooled VWs. We recommend using at least a 10-gauge wire for your main ground return to ensure zero voltage drop during high-load operations.

2. Map Your Circuit Amperage Carefully

The beauty of this fused panel is the individual protection for each circuit, but you must match your fuses to the load. For your ignition switch, a standard 15-20 amp fuse is usually sufficient for a stock-style coil and distributor setup. However, if you are running a high-output electric fuel pump or a large auxiliary cooling fan on one of the accessory switches, ensure you calculate the "in-rush" current. Always use a fuse that is slightly higher than the continuous draw but lower than the wire''s maximum capacity. Don''t forget to carry a small kit of spare blade fuses in your glove box or tool bag so a blown circuit doesn''t end your weekend early.

3. Stress-Relief Your Rear Connections

Off-roading creates immense vibration that can fatigue electrical terminals over time. When you connect your accessories to the spade connectors on the back of the fuse blocks, ensure you leave a small "service loop" of extra wire. This loop prevents the wire from being pulled tight against the terminal during chassis flex or hard landings. Additionally, using high-quality insulated female spade connectors and a dab of dielectric grease will prevent corrosion and ensure that your connections stay tight and conductive, even when subjected to the dust and moisture common in the VW off-road world.
