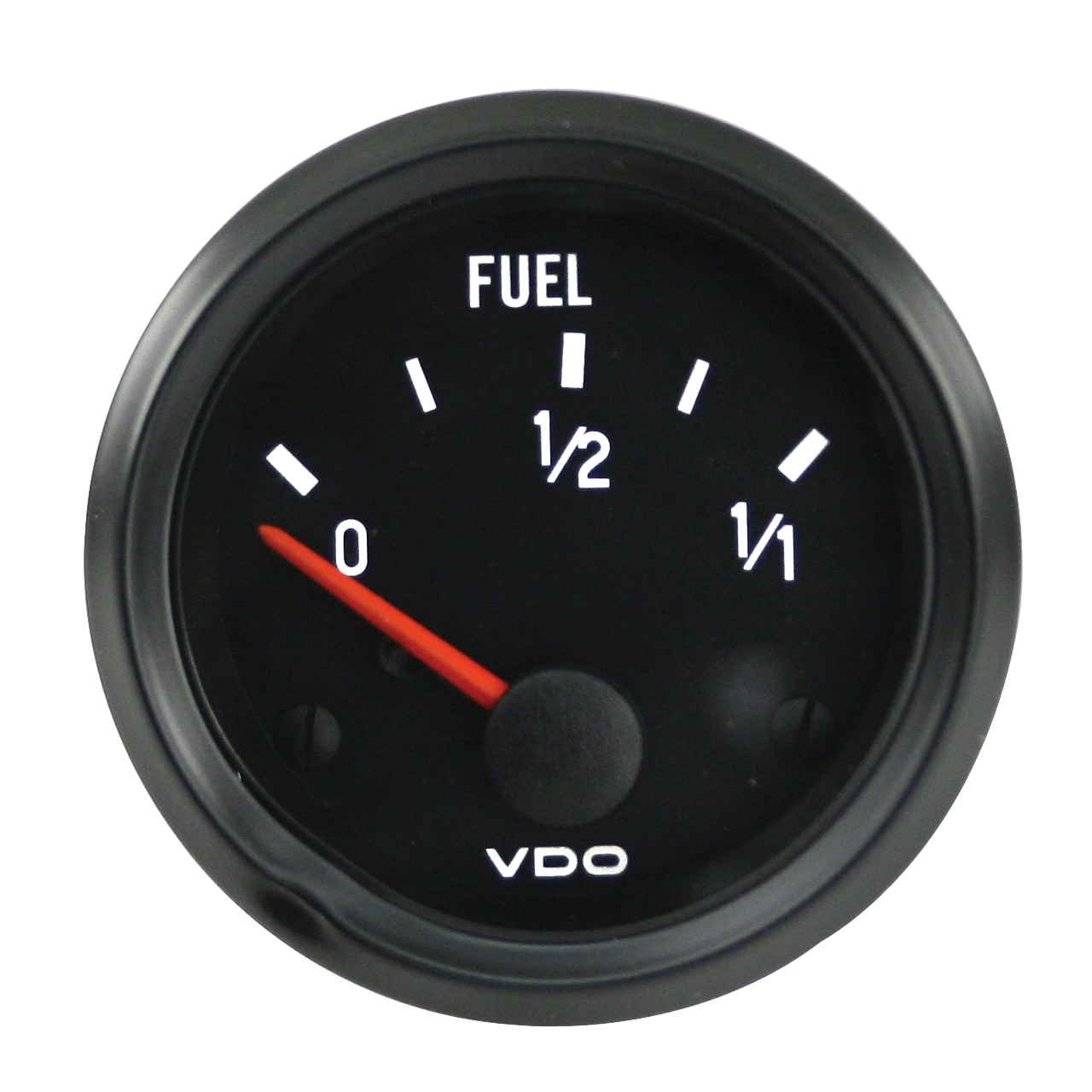

2-1/16 Fuel Gauge, Cockpit Series, 73-10 OHM

Product Overview

The VDO Cockpit Series is the legendary line of instrumentation that set the industry standard for clarity, reliability, and classic styling. For the air-cooled Volkswagen enthusiast, this 2-1/16 inch (52mm) fuel gauge is the definitive choice for keeping a precise eye on your fuel levels. Featuring a crisp, flat black face with high-contrast white numerals and a vibrant red pointer, this gauge eliminates guesswork and provides the "factory-plus" look that Appletree Auto customers demand. Whether you are restoring a vintage Beetle to its former glory or outfitting a custom sand rail for the dunes, the Cockpit Series offers an uncompromising level of quality that has made VDO the original equipment manufacturer for Volkswagen for decades.

Engineering excellence is at the heart of this fuel gauge, which utilizes a 73-10 Ohm resistance range. This specific ohm sweep is essential for compatibility with many aftermarket VDO sending units and specialized fuel cells. Unlike generic gauges that suffer from needle bounce or inaccurate readings as the tank nears empty, VDO''s air-core movement ensures a steady, dampened needle response even in the rough terrain of a Baja Bug or the vibrations of a high-performance Type 1 engine. When you install a VDO gauge, you aren''t just adding a part to your dashboard; you are installing peace of mind, ensuring that when the needle hits the reserve mark, you know exactly how much "go-juice" you have left before the engine starts to sputter.

Vehicle and Model Fitment

This universal 52mm gauge is designed to fit standard gauge pods and dashboard cutouts across a wide variety of air-cooled platforms, provided they are matched with a 73-10 Ohm sending unit:

• Volkswagen Beetle: 1950-1979 (Standard and Super Beetle)
• Volkswagen Karmann Ghia: 1955-1974
• Volkswagen Bus / Transporter: 1950-1979 (Type 2, Kombi, Microbus)
• Volkswagen Type 3: 1961-1973 (Squareback, Fastback, Notchback)
• Volkswagen Thing: 1973-1974 (Type 181)
• Custom Applications: Meyers Manx, Dune Buggies, Sand Rails, and Baja Bugs
• Note: Requires a matching 73-10 Ohm sending unit (such as VDO part number V2-2101-2) for accurate operation.

Technical Specifications

• Gauge Series: VDO Cockpit
• Diameter: 2-1/16 inches (52mm)
• Resistance Range: 73 Ohms (Empty) to 10 Ohms (Full)
• Face Color: Flat Black
• Numeral Color: White
• Pointer Color: Fire Red
• Bezel Finish: Black
• Lens: Clear Glass (Non-glare)
• Illumination: Incandescent (Replaceable bulb included)
• Voltage: 12 Volt (Can be used in 6V systems with a voltage dropper)
• Mounting Hardware: Included VDO Spin-lok or U-bracket

Specialist Pro Tips for Installation

Tip 1: Verify Your Ohm Range Before Installation

The most common mistake we see at Appletree Auto is "mismatching" the gauge to the sending unit. This specific VDO gauge operates on a 73-10 Ohm scale (73 ohms when the tank is empty and 10 ohms when it is full). If you attempt to use this with a standard 0-90 ohm sender or a 10-180 ohm VDO sender, your readings will be completely backwards or inaccurate. Always check the resistance of your fuel sender with a multimeter before finalizing your dash layout to ensure it matches the 73-10 requirement of this Cockpit Series unit.

Tip 2: The Importance of a Dedicated Ground Wire

In the world of air-cooled Volkswagens, poor grounding is the primary cause of "flickering" or "lazy" needles. While the gauge body might touch the metal dash, we highly recommend running a dedicated ground wire from the "GND" terminal on the back of the gauge directly to a clean, unpainted spot on the chassis or a central ground bus. This is especially critical in fiberglass dune buggies where the body does not act as a ground. A solid ground ensures that the resistance signal from the tank is clean and that your internal gauge illumination stays bright and consistent.

Tip 3: Protect Your Wiring with a Voltage Stabilizer

Vintage VW charging systems can sometimes have voltage spikes, especially if you are still running an older style generator and external regulator. To maximize the lifespan of your VDO precision movement, ensure your wiring is tidy and fused. If you notice your needle moving significantly when you turn on your headlights or wipers, it is a sign of a voltage drop in your main power feed. Tapping into a clean, ignition-switched power source (Terminal 15 on the ignition switch) will provide the most stable power for accurate fuel level monitoring throughout your journey.
