Push Rod Tube, Spring Loaded, Each

EMPI Spring Loaded Quick-Change Push Rod Tube

Product Overview

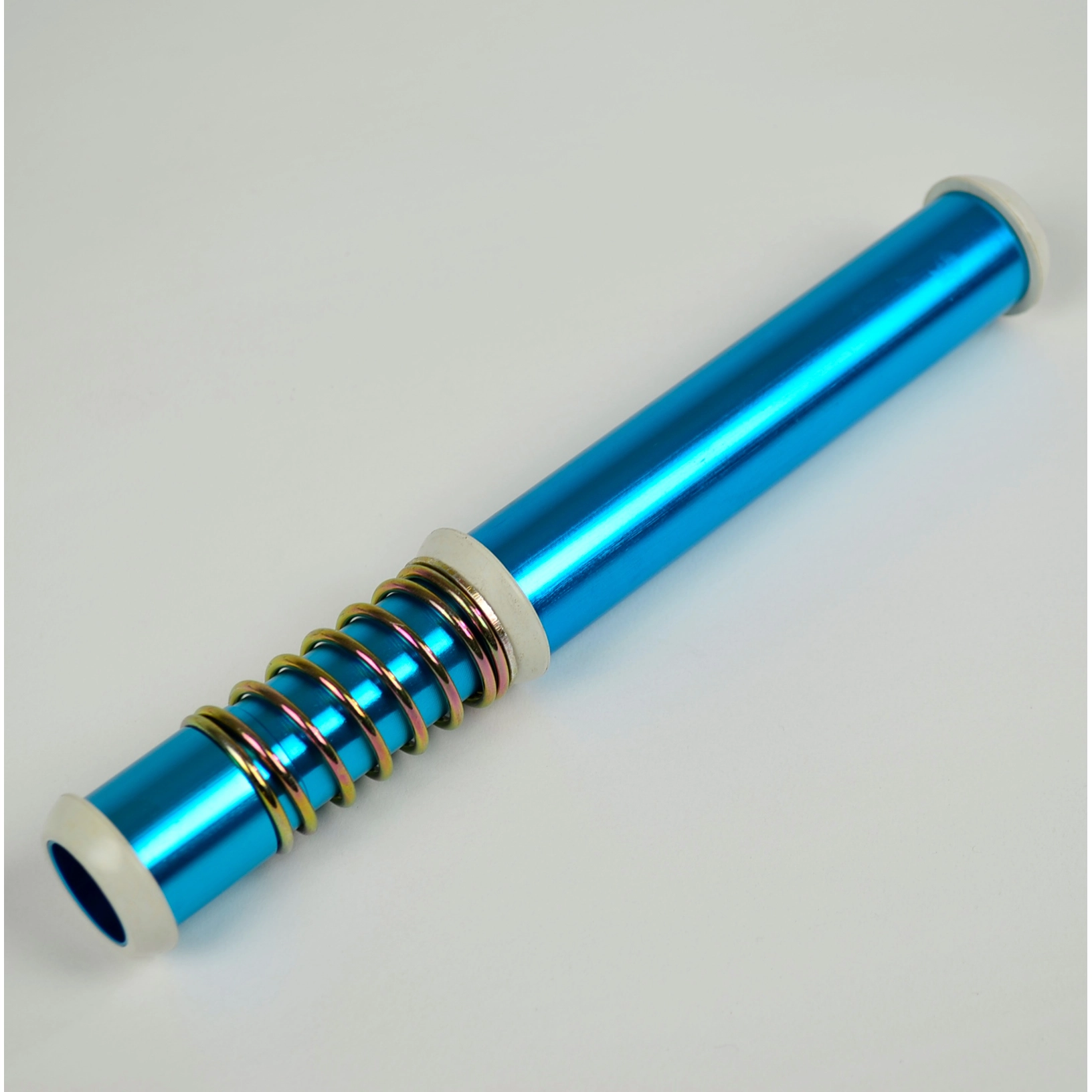

The EMPI 4036 spring-loaded push rod tube is the ultimate solution for repairing leaking tubes without the need to remove your cylinder heads. Manufactured from high-quality aluminum and anodized for long-lasting durability, this "quick-change" tube uses a heavy-duty internal spring to maintain constant pressure against the seals. This design eliminates the need for traditional jam nuts, providing a reliable, leak-free seal even as the engine expands and contracts during heat cycles. Each tube comes complete with the necessary seals for installation.

Vehicle Fitment

This spring-loaded push rod tube is designed for universal fitment on VW Aircooled engines. It is compatible with:

• VW Type 1 (Beetle, Karmann Ghia, Thing) 1200cc - 1600cc
• VW Type 2 (Bus, Transporter) 1200cc - 1600cc
• VW Type 3 (Squareback, Fastback, Notchback) 1500cc - 1600cc
• Dune Buggies, Sand Rails, and Trikes utilizing VW Aircooled powerplants

Pro Tech Tips

Tip 1: Clean the Seating Surfaces. Before installing your new spring-loaded tube, use a lint-free rag and a bit of degreaser to clean the bores in both the engine case and the cylinder head. Any residual grit or old rubber bits can prevent the new seals from seating properly, leading to immediate leaks.

Tip 2: Correct Spring Orientation. For the best results and proper oil drainage, always install the push rod tube with the wider, spring-loaded end facing the engine case. This ensures that the spring tension is applied correctly against the main oil gallery side of the engine.

Tip 3: Lubricate Your Seals. Never install the rubber seals dry. Apply a very light coating of fresh engine oil or a dedicated assembly lubricant to the seals before compressing the tube. This allows the seals to slide into position without binding or tearing, ensuring a perfect airtight and oil-tight fit.
