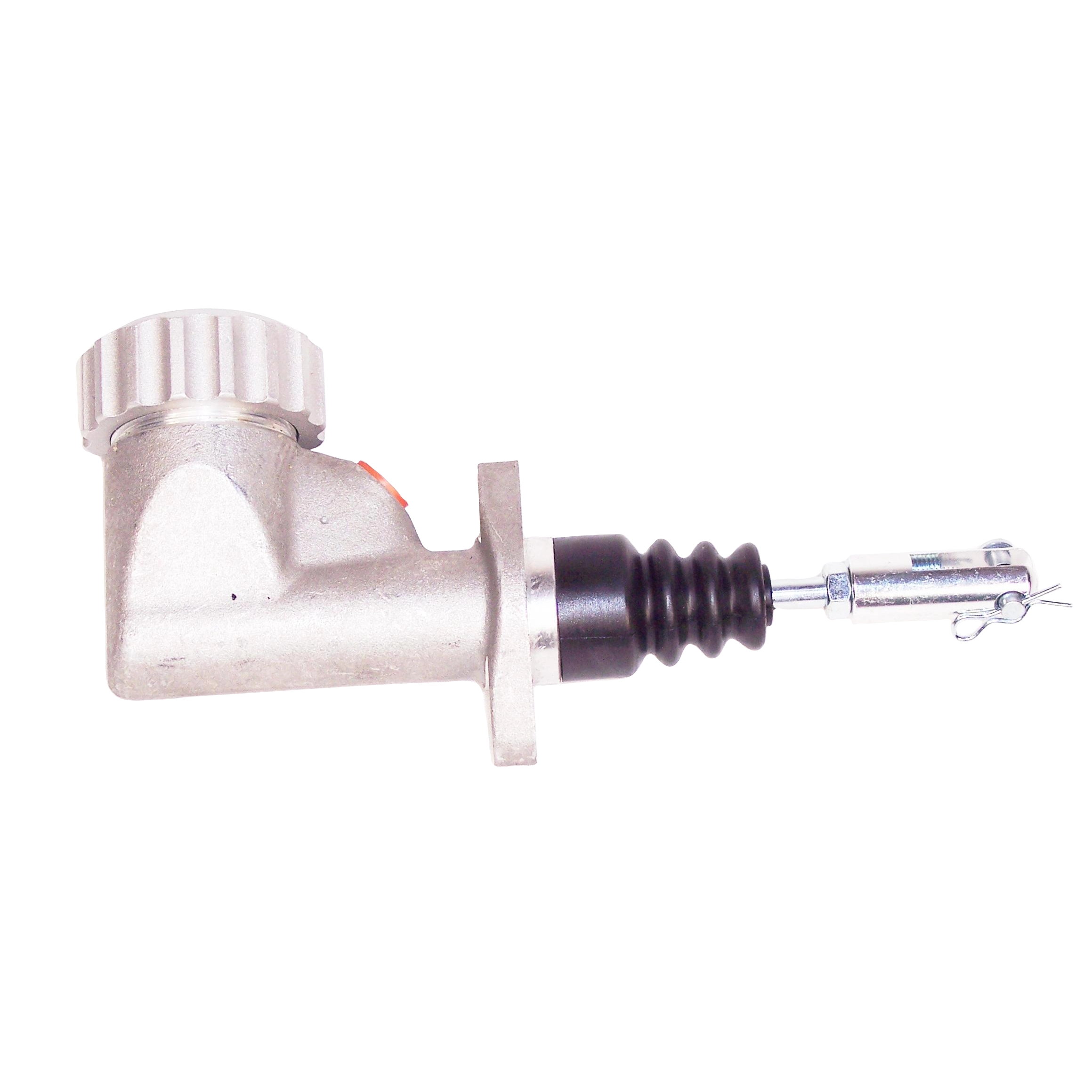

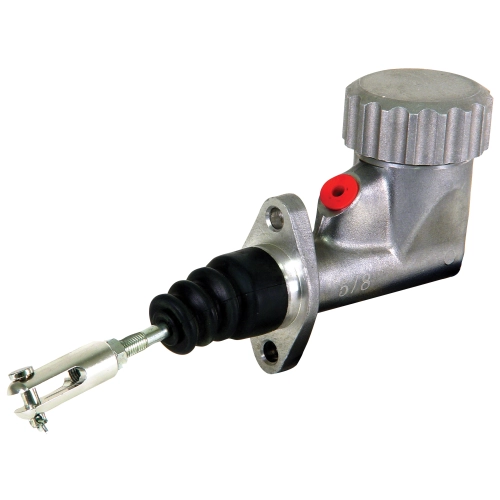

5/8 Bore Round Master Cylinder for 2 Wheel Brakes

OVERVIEW

When you''re building a high-performance sand rail, dune buggy, or a custom air-cooled street machine, your braking system is the last place you should cut corners. The Latest Rage 5/8 Bore Round Master Cylinder is engineered specifically for enthusiasts who demand precision and reliability in two-wheel braking configurations. This round-style master cylinder is a direct high-quality replacement for industry-standard pedal assemblies from CNC, Neal, and Latest Rage. The 5/8-inch bore size is the "goldilocks" choice for many off-roaders; it provides a softer pedal feel with higher mechanical advantage compared to larger bores, making it significantly easier to lock up the wheels or modulate braking pressure during technical descents or high-speed maneuvers on the dunes. Whether you''re refreshing an old build or starting a new chassis from scratch, this master cylinder delivers the consistent hydraulic pressure required to keep your lightweight VW-based rig under control.

Construction and versatility are at the heart of this master cylinder''s design. Featuring a sleek, space-saving round reservoir, it fits into tight pedal boxes where square reservoirs might encounter clearance issues. The unit is designed with a 1/8-inch NPT outlet, allowing for a wide range of plumbing options, though it does require the correct adapter fitting to mate with your specific brake lines. Because it utilizes a vertical 12-to-6 mounting orientation with a standard 2-1/4 inch center-to-center bolt pattern, it integrates seamlessly into most aftermarket VW pedal clusters. This isn''t just a generic part; it''s a purpose-built component designed to withstand the vibration, dust, and heat of the off-road environment while maintaining a leak-free seal and responsive stroke. If you are running a rear-only brake setup or a custom steering brake system, this 5/8 bore unit is the professional''s choice for maximum stopping power with minimal leg effort.

FITMENT

• Custom Dune Buggies: All years and models using CNC or Latest Rage pedal assemblies.
• Sand Rails: Universal fitment for tubular chassis rigs with 2-wheel braking setups.
• VW Beetle (Custom): Modified Type 1 chassis utilizing aftermarket floor-mount or hang-mount pedal clusters.
• Manx-Style Buggies: Perfect for fiberglass kit cars where space in the nose is limited.
• Trikes and Custom Builds: Any lightweight vehicle requiring a high-pressure master cylinder for two-wheel hydraulic brakes.
• Compatibility: Direct replacement for CNC, Neal, and Latest Rage brand pedal assemblies.

SPECS

• Bore Diameter: 5/8 Inch (0.625").
• Reservoir Style: Round, integrated fluid reservoir.
• Outlet Port Thread: 1/8 Inch NPT (National Pipe Thread).
• Mounting Hole Spacing: 2-1/4 Inches on center.
• Mounting Orientation: Vertical (12 o''clock and 6 o''clock bolt pattern).
• Total Length: 8-3/4 Inches.
• Reservoir Length: 4 Inches.
• Unit Height: 3-1/2 Inches.
• Material: High-strength alloy housing with durable internal seals.
• Weight: Approximately 1.6 lbs.

PRO TIPS

Pro Tip 1: Always Bench Bleed Before Installation. Because of the compact design and the internal piston travel of a 5/8 bore cylinder, air bubbles can easily become trapped in the end of the bore. Before you bolt this to your pedal assembly, mount it in a vise, fill the reservoir, and use a screwdriver or pushrod to cycle the piston until no bubbles appear in the fluid. This ensures you start with a rock-solid pedal and prevents the frustration of "spongy" brakes that are nearly impossible to bleed once the lines are connected.

Pro Tip 2: Use the Correct NPT-to-Line Adapter. This master cylinder uses a 1/8-inch NPT outlet, which is a tapered pipe thread. It is NOT compatible with standard inverted flare brake lines without an adapter. You must determine if your vehicle uses 3/16 SAE lines or Metric 10mm lines. When installing your NPT adapter, use a small amount of thread sealant or Teflon tape on the pipe threads onlynever on the flare sideand be careful not to over-tighten, as NPT threads can crack the aluminum body if forced too deep.

Pro Tip 3: Understand Bore Size vs. Pedal Pressure. Choosing a 5/8 bore over a 3/4 bore is a deliberate performance choice. The 5/8 bore creates higher hydraulic pressure with less physical effort from your leg, but it moves a smaller volume of fluid per stroke. This is ideal for 2-wheel brake setups using standard VW wheel cylinders or small calipers. If you find your pedal travel is too long, ensure your brake shoes are adjusted tight to the drums; if the pedal is too hard to push, the 5/8 bore is the solution to your problem.
