Shift Rod Coupling Kit, Late

Product Overview

If you have ever felt like you are stirring a pot of soup instead of shifting gears in your classic Volkswagen, the culprit is almost certainly a worn-out shift rod coupler. This Late Model Shift Rod Coupling Kit is a precision-engineered solution designed to restore that crisp, factory-fresh shifting feel to your vintage air-cooled ride. Located at the rear of the shift rod just before it enters the transmission nose cone, this coupler is the critical link between your hand and the gear selector. Over decades of use, the original rubber bushings degrade, oil-soak, and eventually disintegrate, leading to excessive play, missed shifts, and a generally disconnected driving experience. By replacing your tired hardware with this robust kit, you effectively eliminate the mechanical "slop" that plagues so many aging Beetles and Buses.

Our kit is manufactured to meet or exceed original equipment specifications, ensuring a perfect fit and long-lasting durability. It features a heavy-duty steel cage and high-quality internal bushings that provide the necessary dampening to prevent vibration transfer while maintaining the rigid connection required for precise gear engagement. Whether you are performing a full pan-off restoration or just trying to make your daily driver more enjoyable, this kit is one of the most cost-effective upgrades you can perform. Don''t settle for vague gear selection that risks grinding your synchros; install a fresh coupling kit and rediscover the joy of a tight, responsive four-speed gearbox. This is the standard "late" style design that replaced the earlier "square" style, offering a more refined connection for 1960s and 1970s era Volkswagens.

Vehicle Fitment

This "Late Style" shift rod coupler is designed for a wide range of air-cooled Volkswagens. Please verify your specific year and model below:

• Volkswagen Type 1 Beetle: 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977.
• Volkswagen Super Beetle: 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979.
• Volkswagen Karmann Ghia: 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974.
• Volkswagen Type 2 Bus (Bay Window): 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979.
• Volkswagen Type 3 (Fastback, Squareback, Notchback): 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973.
• Volkswagen Thing (Type 181): 1973, 1974.

Technical Specifications

• OEM Part Number Reference: 311-798-119 / 311798119.
• Material: High-tensile stamped steel cage with zinc plating for corrosion resistance.
• Bushing Material: High-density synthetic elastomer designed to resist oil and grease degradation.

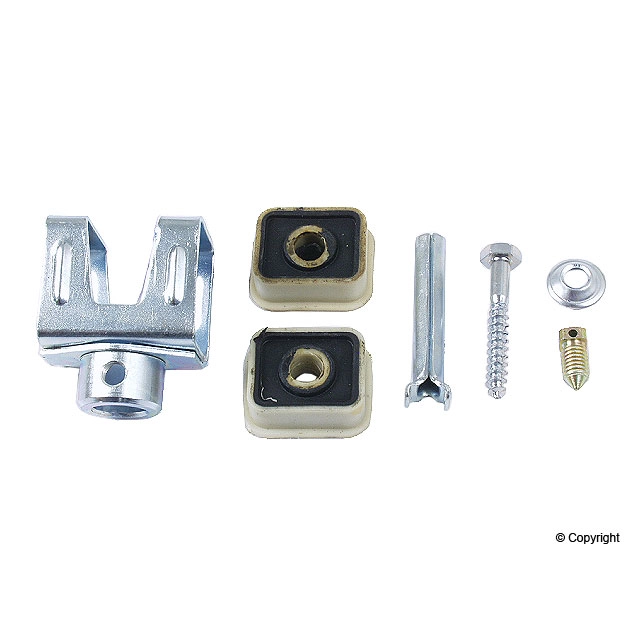

• Hardware Included: Includes the coupler assembly, square center block, and necessary attachment hardware.
• Installation Location: Rear of the main shift rod, connecting to the transmission selector (hockey stick).
• Design Type: Late-style cage and pin design (replaces the early 111-series round style).
• Weight: Approximately 0.42 lbs.

Expert Pro Tips

Check Your Rear Inspection Plate

On Beetle and Ghia models, you can access this coupler through the small inspection plate located under the rear seat on the center tunnel. Before you start the job, make sure you have a clean workspace and a magnetic pickup tool handy. It is incredibly common for the small set screw or the safety wire to drop into the tunnel during removal. If you lose that screw inside the frame head or tunnel, it can be a nightmare to retrieve. Placing a small rag inside the tunnel cavity behind the coupler before loosening anything acts as a safety net to catch any falling hardware.

Safety Wire is Non-Negotiable

The set screw that holds the coupler to the shift rod is a critical point of failure if not secured correctly. When installing this kit, you must ensure that the set screw is fully seated into the dimple on the shift rod. Once tightened, always use a piece of safety wire (usually included or available at any hardware store) to wrap through the head of the bolt and around the coupler cage. The vibration of the air-cooled engine and the constant movement of the shifter can cause an un-wired bolt to back out over time, which will leave you stranded in whatever gear you were in at the moment it fell out.

Inspect the Front Bushing Simultaneously

While you are addressing the rear coupler, it is the perfect time to inspect the front shift rod bushing located just behind the shifter base. If your rear coupler was shot, there is a 90 percent chance the front bushing is also crumbling. Replacing the rear coupler will fix the "side-to-side" slop, but a bad front bushing causes "clunking" and vertical movement in the shifter handle. For the ultimate "new car" shifting experience, we highly recommend replacing the front bushing and the shifter base plate gasket at the same time you install this late-style rear coupling kit.
