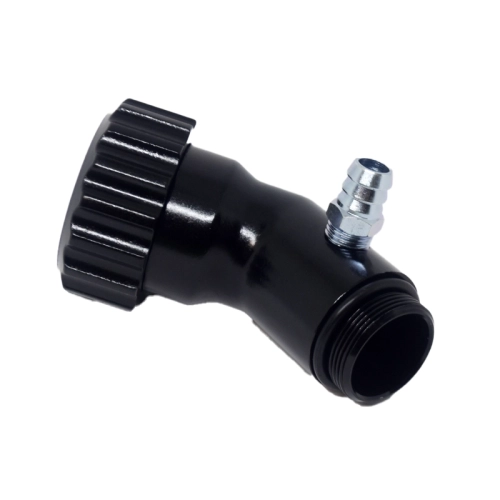

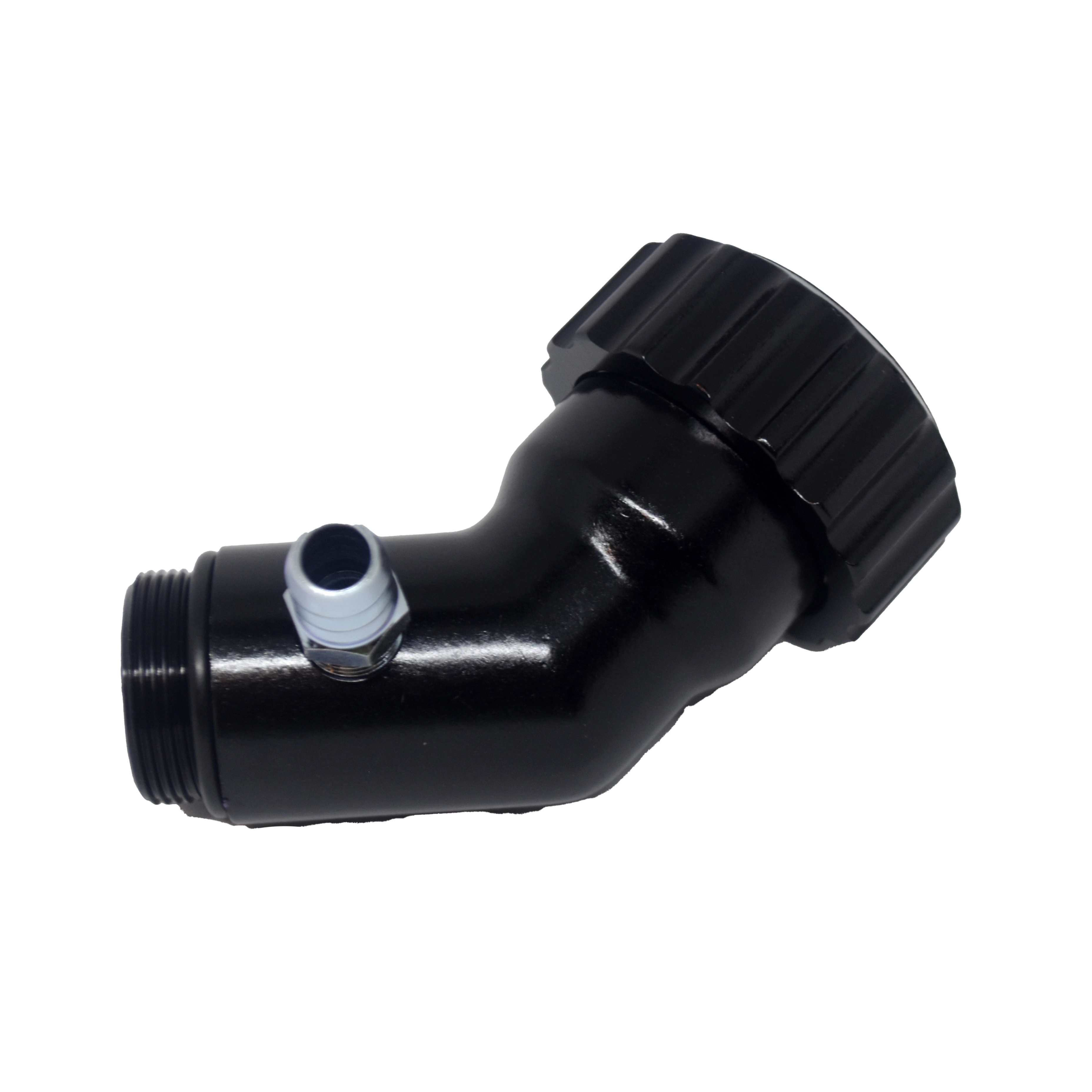

Angled Oil Filler Extension, With Grooved Cap, Black

OVERVIEW

If you have ever struggled to pour oil into a stock air-cooled engine without making a mess of your fan shroud, the Latest Rage Angled Oil Filler Extension is the professional-grade solution you have been looking for. Engineered specifically for the Type 1 and Type 2 upright engines, this extension repositions the oil fill point to a much more accessible angle, clearing the carburetor and intake manifold with ease. No more using flimsy funnels or risking oil spills on your pristine engine bay. This isn''t just a utility upgrade; it is a high-performance component machined from 6061 T-6 billet aluminum, ensuring that it can withstand the high vibration and thermal cycles common in air-cooled Volkswagen environments. The sleek black anodized finish provides a modern, custom look that complements both show cars and rugged off-road builds, offering a significant aesthetic upgrade over the stamped steel factory units.

Beyond its ergonomic benefits, this angled oil filler is designed to integrate seamlessly with your crankcase ventilation system. It features a precision-tapped 1/4 inch NPT port that comes equipped with a 1/2 inch barbed breather hose fitting, allowing you to easily route internal engine pressure to a breather box or air cleaner. The included billet aluminum cap is heavily grooved, providing an exceptional grip even when your hands are oily or you are wearing gloves during a quick trackside maintenance session. The internal threading is cut to exacting tolerances to ensure a snug fit on your generator or alternator stand, preventing the common leaks associated with inferior cast replicas. Whether you are building a high-revving street Beetle or a sand-shredding dune buggy, this black anodized filler extension is an essential piece of hardware for any owner who values both form and function in their engine compartment.

FITMENT

• Volkswagen Type 1 Beetle: 1950 through 1979 (All Upright Engines)
• Volkswagen Type 2 Bus: 1950 through 1971 (Upright Style Engines)
• Volkswagen Karmann Ghia: 1956 through 1974
• Volkswagen Thing (Type 181): 1973 through 1974
• Dune Buggies & Sand Rails: All models utilizing a VW Type 1 engine case
• Custom Trikes: Using standard Volkswagen upright generator or alternator stands

SPECS

• Material: High-Strength 6061 T-6 Billet Aluminum
• Finish: Durable Black Anodized Coating
• Configuration: Angled Neck for Improved Clearance
• Cap Style: Thread-on Billet Aluminum with Knurled/Grooved Grip
• Vent Port: 1/4 inch NPT Threaded Hole
• Breather Fitting: 1/2 inch Barbed Brass or Aluminum Fitting (Included)
• Mounting: Direct Thread-in for Standard VW Oil Filler Stands
• Weight: Approximately 0.65 lbs

PRO TIPS

1. Ensure a Vacuum-Tight Seal at the Stand

When installing your new angled oil filler, it is critical to ensure the base is seated perfectly against the generator or alternator stand. While the threads are precision-cut, we highly recommend using a small amount of high-temp thread sealant or a fresh gasket at the base to prevent oil mist from seeping out under high crankcase pressure. Before threading it in, clean the internal threads of your stand thoroughly with a degreaser to remove old oil and grit. Don''t over-torque the unit; because it is billet aluminum, it only needs to be snug enough to resist vibration. A hand-tight turn followed by a slight nudge with a padded wrench is usually sufficient to keep it secure for thousands of miles.

2. Optimize Your Breather Routing

The 1/2 inch barbed fitting included with this kit is a vital component for engine longevity. For high-performance or large-displacement engines, do not simply block this port off. We recommend routing a high-quality reinforced hose from this fitting directly to an external oil breather box. This allows the engine to breathe more freely, reducing the risk of blowing out your main seals or pushing oil past the valve guide seals. If you are running a stock setup, make sure the hose is routed to the factory air cleaner to maintain a closed-loop system, which helps keep the engine oil cleaner by utilizing the engine''s natural vacuum to pull out moisture and contaminants.

3. Protecting the Anodized Finish

To keep the black anodized finish looking like new, avoid using harsh caustic degreasers or abrasive cleaning pads on the filler body. When cleaning your engine bay, stick to mild soap and water or specialized detailers designed for anodized aluminum. If you find the cap is getting difficult to turn over time, apply a very light film of clean engine oil or a tiny dab of anti-seize to the cap threads. This will ensure that the grooved cap always spins off smoothly during oil changes, preventing you from having to use pliers which could mar the beautiful black finish. Remember to always check the tightness of the cap after the first few heat cycles of the engine to ensure everything has settled correctly.
