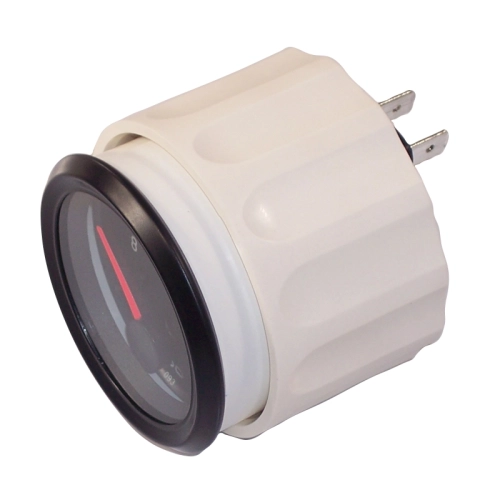

2-1/16 Voltmeter Gauge, Cockpit Series 8-16 V

OVERVIEW

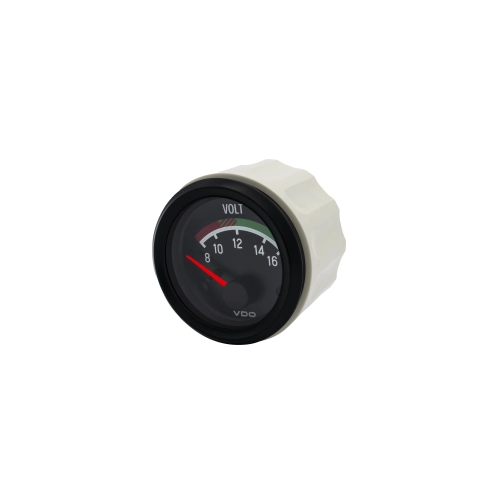

When it comes to monitoring the vital signs of your air-cooled engine, the VDO Cockpit Series Voltmeter stands as the industry benchmark for reliability and classic aesthetics. For decades, VDO has been the original equipment manufacturer for Volkswagen, and the Cockpit Series continues that legacy by offering a timeless design that integrates seamlessly into any vintage dashboard. This 2-1/16 inch (52mm) gauge features a signature flat black face, crisp white numerals, and a high-contrast red pointer, ensuring that you can monitor your electrical system''s health at a quick glance, whether you are cruising at noon or driving through the night. In an air-cooled VW, where the charging system is often the weakest link, having a dedicated voltmeter is not just an upgradeit''s an essential insurance policy against being stranded with a dead battery.

Monitoring your voltage is critical for diagnosing the health of your alternator or generator before a total failure occurs. While a simple warning light tells you when things have already gone wrong, this 8-16 volt gauge allows you to see the real-time performance of your regulator and battery. You will be able to spot slipping fan belts, failing brushes, or a dying battery well in advance. Designed with uncompromising German-engineered quality, this electric gauge is built to withstand the vibrations and heat soak common in high-performance Beetle, Bus, and Dune Buggy applications. It provides a precise, dampened movement that eliminates needle bounce, giving you a steady and accurate readout of your vehicle''s electrical potential. When you choose VDO from Appletree Auto, you are choosing the same level of excellence that has defined the Volkswagen enthusiast community for over half a century.

FITMENT

This VDO Cockpit Series Voltmeter is a universal 52mm gauge designed for 12-volt electrical systems. It is the preferred choice for the following air-cooled and water-cooled applications:

• Volkswagen Beetle: 1967-1977 (Standard and Super Beetle)
• Volkswagen Karmann Ghia: 1967-1974
• Volkswagen Bus / Transporter: 1967-1979 (Type 2 Bay Window and early Vanagon)
• Volkswagen Type 3: 1967-1973 (Squareback, Fastback, Notchback)
• Volkswagen Thing: 1973-1974 (Type 181)
• Custom Applications: Ideal for Dune Buggies, Sand Rails, Baja Bugs, and Manx-style kit cars.
• Note: Suitable for any vehicle converted to a 12V electrical system.

SPECS

Every VDO gauge is manufactured to exacting standards to ensure long-term durability in harsh automotive environments. The technical specifications for the V3-3204-1 include:

• Product Series: VDO Cockpit Series
• Diameter: 2-1/16 inches (52mm)
• Voltage Range: 8 to 16 Volts
• Face Color: Flat Black
• Bezel Finish: Black
• Pointer Color: Fire Red
• Numerical Color: Vivid White
• Lighting: Incandescent (Light kit included)

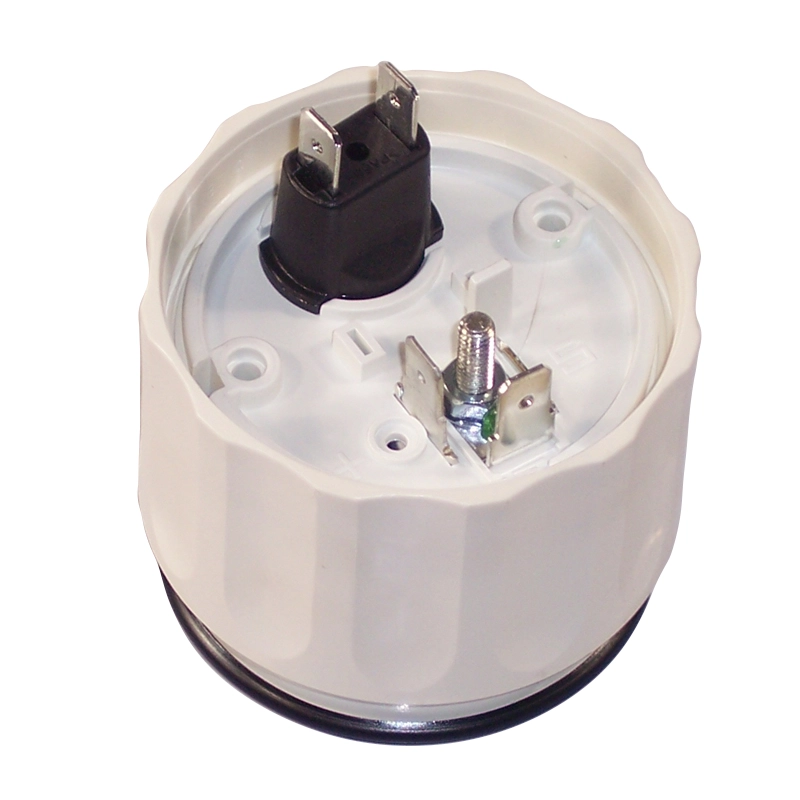

• Mounting Hardware: Included VDO Spin-lok or U-bracket system
• Input Type: Electrical (Connects directly to ignition-switched power)
• Lens: Clear Glass (Scratch-resistant)

PRO TIPS

1. Proper Power Sourcing for Accuracy

To get the most accurate reading of your battery''s true state of charge, you should avoid "daisy-chaining" the power wire of this voltmeter with too many other high-draw accessories. For the most precise measurement, connect the positive terminal of the gauge to a clean, ignition-switched 12V source. If you wire it directly to the battery, the gauge will stay on and eventually drain your battery. However, if you wire it to a heavily loaded circuit (like the wiper motor or heater fan), you may see a "false low" reading due to voltage drop within that specific circuit. Always use a dedicated fused line for your instrument cluster to ensure the needle reflects what the battery is actually doing.

2. Grounding is Everything

In the world of air-cooled Volkswagens, 90% of electrical issues and "twitchy" gauges are caused by poor grounding. Since many VWs have painted dashboards or fiberglass bodies (in the case of buggies), getting a solid ground for your VDO Voltmeter is paramount. We highly recommend running a dedicated ground wire from the gauge back to a central ground terminal block or directly to the chassis, rather than relying on the gauge bracket touching the dash. A clean ground ensures the internal resistance of the gauge remains consistent, providing a rock-steady needle even when your headlights or turn signals are active.

3. Understanding Your Readings

Knowing how to read your voltmeter is just as important as installing it. On a healthy 12V air-cooled system, you should see approximately 12.6 volts when the engine is off. Once the engine is running and the generator or alternator kicks in, the needle should climb to somewhere between 13.5 and 14.5 volts. If you notice the needle dipping below 12.5 volts while driving, your charging system is likely failing to keep up with the load. Conversely, if the needle spikes above 15 volts, your voltage regulator is likely stuck, which can "boil" your battery and blow out your light bulbs. Keeping an eye on these specific ranges will help you catch an alternator failure before it leaves you stranded on the shoulder of the highway.
