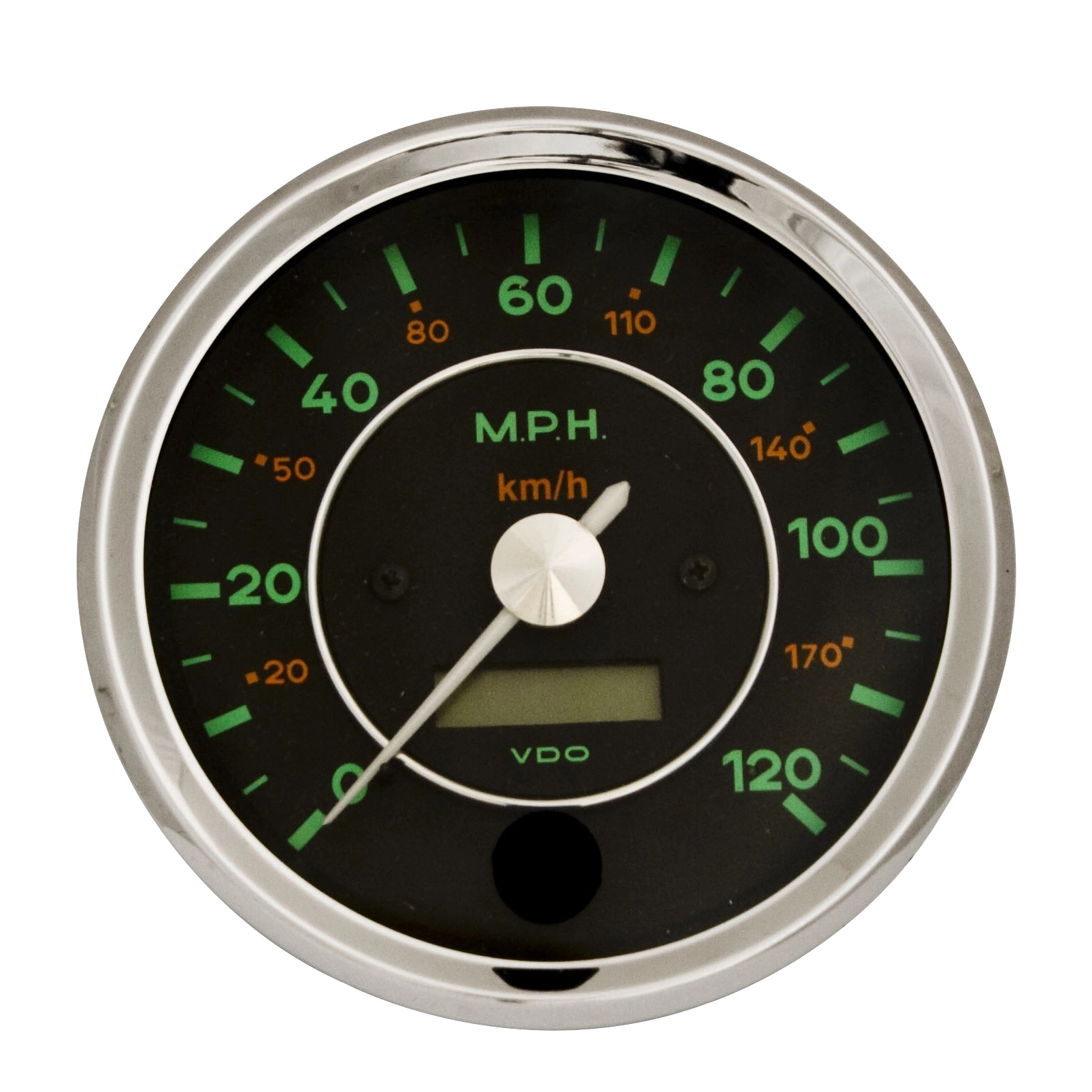

4 Speedometer, 120 MPH, 356 Seeries VDO

OVERVIEW

Elevate your air-cooled interior with the timeless elegance of the VDO 356 Series 120 MPH Speedometer. Designed to capture the iconic aesthetic of the legendary Porsche 356, this four-inch gauge is the definitive choice for enthusiasts seeking a period-correct appearance without sacrificing modern precision. Whether you are finishing a high-end Speedster replica, restoring a vintage Karmann Ghia, or custom-building a classic Beetle, this speedometer provides the perfect bridge between mid-century styling and contemporary reliability. The face features the signature green and white markings that defined an era of automotive excellence, ensuring that your dashboard reflects the heritage of the air-cooled world while providing a clear, accurate reading of your ground speed up to 120 MPH.

Engineered by VDO, the original equipment manufacturer for Volkswagen and Porsche for decades, this 356 Series speedometer is built to withstand the rigors of the road while maintaining its sophisticated look. The gauge is face-lit for superior nighttime visibility, utilizing a 12-volt system that integrates seamlessly with your existing wiring harness. Its large 4-inch (100mm) diameter makes it a bold centerpiece for any custom dashboard layout, offering a commanding presence that smaller, modern gauges simply cannot match. When you install this VDO unit, you are not just adding a tool to measure speed; you are installing a piece of automotive history that has been refined for today''s demanding drivers. At Appletree Automotive, we understand that every detail matters in a build, and this speedometer delivers the quality and soul your project deserves.

FITMENT

This 4-inch VDO speedometer is a universal-fit component designed for custom applications, but it is most commonly utilized in the following air-cooled vehicles and replicas:

• Porsche 356 Replicas: Perfect for Speedster, Convertible D, and Coupe replicas from manufacturers like Beck, Intermeccanica, and Vintage Speedsters.
• Volkswagen Beetle (Type 1): Ideal for custom dashboards or modified "Cal-Look" interiors requiring a 100mm gauge opening.
• Volkswagen Karmann Ghia: Fits beautifully in custom dash panels where the owner desires a vintage Porsche aesthetic.
• Volkswagen Bus (Type 2): A popular choice for custom Split Window or Bay Window bus builds with upgraded dash pods.
• Dune Buggies & Sand Rails: Compatible with any fiberglass or metal dash designed for standard 4-inch automotive gauges.
• Custom Hot Rods: Any 12V vehicle utilizing a standard mechanical speedometer cable drive.

SPECS

• Brand: VDO Instruments
• Series: 356 Replica Series
• Part Number: V5-1984-6
• Diameter: 4 Inches (100mm)
• Speed Range: 0 to 120 MPH
• Voltage: 12 Volts
• Illumination: Incandescent Face-Lit (Green/White vintage style)
• Input Type: Mechanical (Threaded for standard VW-style speedometer cables)
• Bezel Finish: Classic Black
• Face Color: Black with period-correct Green and White graphics
• Mounting Hardware: Included U-bracket and nuts

PRO TIPS

1. Proper Speedometer Cable Routing is Critical

When installing your new VDO 120 MPH speedometer, the path of the speedometer cable is the single most important factor for accuracy and longevity. Ensure that the cable has a smooth, sweeping radius as it exits the back of the gauge and passes through the trunk or bulkhead. Sharp kinks or tight bends will cause the inner cable to bind against the outer housing, resulting in a "wavering" or "bouncing" needle. If you notice your needle jumping at low speeds, check the cable routing first. Always lubricate the cable with a high-quality graphite-based lubricant before final installation to prevent friction-induced heat and premature wear.

2. Match Your Drive Gear to Your Tire Size

Since this is a mechanical speedometer, its accuracy depends entirely on the rotation of the cable driven by your transmission or front spindle. If you have changed your tire diameter or are running significantly oversized "Big and Little" tire setups on a Beetle or Buggy, your speedometer may read incorrectly. To ensure your 120 MPH VDO gauge is accurate, you may need to verify the drive gear ratio in your transaxle or use a speedometer correction box. Accurate calibration ensures you stay within legal speed limits and provides reliable data for your odometer readings during long-distance rallies.

3. Consider LED Upgrades for Enhanced Clarity

While the VDO 356 series comes with standard incandescent bulbs to maintain that warm, vintage glow, many builders prefer to upgrade to modern LEDs. If you choose to go this route, look for "warm white" LEDs to preserve the classic look while significantly reducing heat output inside the gauge housing. Reducing heat is vital for preserving the longevity of the internal mechanical components and preventing the vintage-style face graphics from fading over decades of use. Ensure your LED replacements are dimmable if you are using a standard VW headlight switch rheostat to control your dashboard brightness.
