Fuel Filter, Inline for 5/16 And 1/4 Line, Sold Each

Product Overview

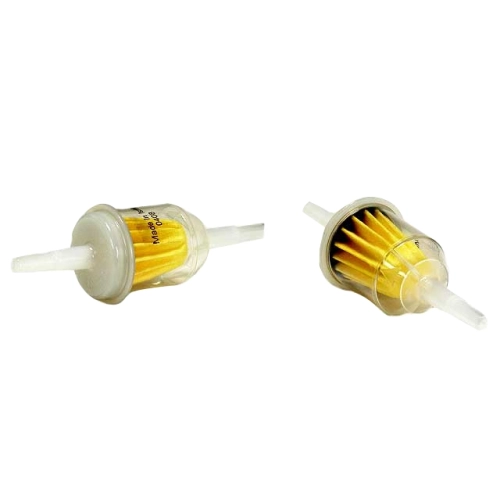

In the world of air-cooled Volkswagens, maintaining a pristine fuel system is the absolute baseline for engine longevity and performance. This premium Mann inline fuel filter is engineered to provide an essential line of defense against the rust, scale, and sediment that frequently accumulates in vintage gas tanks. Whether you are running a stock Solex or a high-performance dual Weber setup, even the smallest particle of debris can clog a needle valve or jet, leading to lean conditions, stumbling, or even engine failure. This filter features an ultra-fine, pleated paper element housed in a high-strength, transparent polymer casing, allowing you to monitor your fuel flow and filter cleanliness at a glance. By choosing a Mann filter, you are opting for the same level of quality trusted by European manufacturers for decades, ensuring your fuel remains free of contaminants from the tank to the combustion chamber.

Versatility is a hallmark of this specific unit, as it features stepped inlet and outlet nipples designed to accommodate both 1/4-inch (6mm) and 5/16-inch (8mm) fuel lines. This makes it an indispensable component for any garage or shop, fitting everything from early 36hp Beetles to late-model fuel-injected buses converted to carburetors, as well as custom sand rails and dune buggies. The clear housing is not just for aesthetics; it serves as a vital diagnostic tool, letting you see if fuel is reaching the pump or if the tank is beginning to shed internal rust. Compact enough to be tucked away safely but robust enough to handle the pressures of mechanical fuel pumps, this filter is the cost-effective insurance policy every air-cooled enthusiast needs to keep their flat-four humming smoothly down the highway or across the dunes.

Vehicle Fitment

This universal inline fuel filter is designed for carbureted applications and fits a wide array of air-cooled and custom vehicles, including:

• Volkswagen Type 1 Beetle: 1946 through 1977 (Standard and Super Beetle)
• Volkswagen Type 2 Bus / Transporter: 1950 through 1979 (Split Window and Bay Window)
• Volkswagen Type 3: 1961 through 1973 (Squareback, Fastback, Notchback)
• Volkswagen Karmann Ghia: 1956 through 1974
• Volkswagen Type 181 Thing: 1973 through 1975
• Volkswagen Type 4: 1968 through 1974 (411 and 412 models)
• Custom Applications: All Dune Buggies, Sand Rails, Trikes, and Manx-style shells using VW powerplants.
• General Use: Any small engine or automotive application utilizing 1/4-inch or 5/16-inch fuel hose.

Technical Specifications

• Filter Media: High-efficiency pleated paper for maximum particulate capture.
• Housing Material: Impact-resistant, transparent temperature-stable plastic.
• Inlet Size: Dual-stepped to fit 1/4-inch (6mm) and 5/16-inch (8mm) ID fuel lines.
• Outlet Size: Dual-stepped to fit 1/4-inch (6mm) and 5/16-inch (8mm) ID fuel lines.
• Flow Direction: Clearly marked with a stamped arrow for foolproof installation.
• Total Length: Compact design for easy fitment in tight chassis areas.
• Compatibility: Suitable for standard pump gasoline and E10 ethanol blends.
• Quantity: Sold individually (Each).

Pro Tips from the Appletree Garage

Tip 1: Proper Placement for Fire Safety

One of the most common mistakes in the VW community is installing an inline plastic filter inside the engine compartment, particularly right above the distributor. Heat cycles and vibration can cause plastic filters to crack or the fuel lines to slip off, creating a significant fire hazard. For the safest installation, we recommend placing the filter under the fuel tank (near the front beam on Beetles) or just before the fuel line enters the chassis in the rear, away from the heat of the engine and the electrical components. This keeps the fuel cooler and your engine bay much safer.

Tip 2: Use the Filter as a Diagnostic Tool

Since this filter features a clear housing, it is an excellent tool for troubleshooting fuel delivery issues. If your engine is sputtering or refusing to start, take a look at the filter. If it is empty, you likely have a clogged tank outlet or a failing fuel pump. If you see bubbles or "foaming" in the filter while the engine is running, you may have a pinhole leak in your fuel line that is sucking in air. Furthermore, if you notice a reddish-brown silt accumulating in the pleats, it is a clear sign that your gas tank is rusting internally and needs to be cleaned or replaced before it ruins your carburetor.

Tip 3: Orientation and Clamp Security

Always pay close attention to the flow arrow stamped on the side of the filter housing; installing the filter backward will significantly restrict fuel flow and can cause the car to starve at high speeds. Additionally, even though the stepped nipples provide a snug fit, you must always use high-quality fuel line clamps (preferably the smooth-band style that won''t cut the rubber) to secure the lines. Because air-cooled engines vibrate significantly, a pressurized line without a clamp is a recipe for disaster. We recommend changing these filters every 5,000 miles or once a year as part of your standard tune-up routine.
