Intake Manifold, Universal for Single D Series & HPMX, IDF

OVERVIEW

The EMPI Universal Intake Manifold for Single D Series, HPMX, and IDF carburetors represents the pinnacle of air-cooled performance engineering for enthusiasts who demand a perfect balance between raw torque and streetable reliability. Designed specifically for the iconic Volkswagen Type 1 dual-port engine, this manifold kit is a "torque monster" that has been rigorously race-proven in the harshest off-road environments. Unlike standard single-carb manifolds that can suffer from uneven fuel distribution, this unit features a sophisticated isolated runner design. This ensures that each cylinder receives a consistent, high-velocity charge of air and fuel, significantly improving throttle response and low-end grunt. Whether you are climbing dunes in a sand rail or navigating city traffic in a classic Beetle, this manifold provides the breathing room your engine needs to reach its full potential without the tuning headaches often associated with dual-carburetor setups.

Constructed from high-grade cast aluminum and finished to exacting standards, the EMPI 44-1030-0 is built to withstand the extreme vibrations and thermal stresses of the VW engine bay. Its universal mounting flange is a masterclass in versatility, allowing for the seamless installation of EMPI D-Series carburetors, EMPI HPMX units, or the legendary Weber IDF series. This flexibility makes it an essential component for builders who want to customize their fuel delivery system based on their specific displacement and horsepower goals. By centering the carburetor and utilizing a runner path optimized for flow efficiency, this manifold helps eliminate flat spots in the acceleration curve. When you choose this EMPI manifold from Appletree Automotive, you are investing in a legacy of air-cooled excellence that prioritizes durability, ease of installation, and undeniable performance gains across the entire RPM range.

FITMENT

• Volkswagen Beetle: 1971-1977 (Dual Port Engines)
• Volkswagen Super Beetle: 1971-1979
• Volkswagen Karmann Ghia: 1971-1974
• Volkswagen Bus / Transporter: 1971 (1600cc Dual Port)
• Volkswagen Thing (Type 181): 1973-1974
• Custom Applications: Dune Buggies, Sand Rails, and Trikes using VW Type 1 1600cc-2332cc Dual Port engines.

SPECS

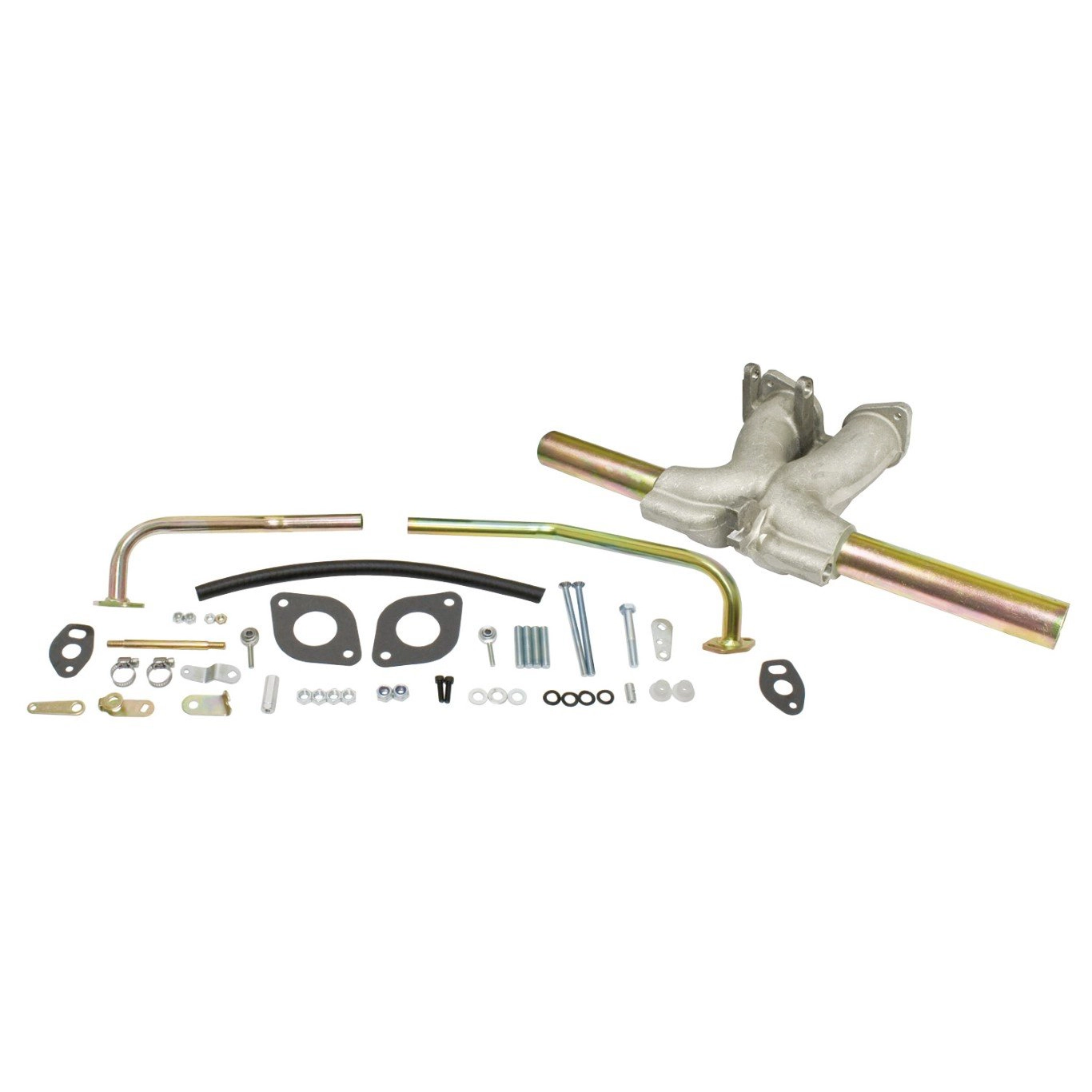

• Part Number: 44-1030-0
• Material: High-Strength Cast Aluminum
• Carburetor Compatibility: EMPI D-Series, EMPI HPMX, Weber IDF
• Runner Style: Isolated Runner for Optimized Pulse Tuning
• Configuration: Single Center-Mount (Universal)
• Engine Type: VW Type 1 Dual Port (1600cc based)
• Port Shape: Precision-cast to match standard dual-port cylinder heads
• Hardware Included: Gaskets and necessary mounting studs/nuts
• Finish: Natural Cast Aluminum (Paintable or Polishable)

PRO TIPS

1. Check for Vacuum Leaks at the Base and Boots

When installing any center-mount manifold, the most common performance killer is a vacuum leak. Before you finalize the installation, ensure that the manifold boots (the rubber connectors joining the center section to the end castings) are high-quality silicone and that the clamps are tightened evenly. We recommend using a small amount of sensor-safe sealant on the gaskets at the cylinder head intake ports. Once the engine is running, spray a small amount of carburetor cleaner around the joints; if the idle changes, you have a leak that needs to be addressed immediately to prevent a lean condition that could damage your valves.

2. Optimize Your Throttle Linkage Geometry

Because this manifold sits higher than a stock Solex setup, your throttle linkage geometry will change. It is critical to ensure that the linkage arm on the carburetor has a full range of motion without hitting the alternator or the fan shroud. We often suggest using a hex-bar or a high-quality cable-pull system to ensure smooth operation. Always check that you are getting "wide open throttle" (WOT) when the pedal is floored, and conversely, ensure the carb returns completely to the idle stop to prevent "hanging" RPMs during gear shifts.

3. Account for Manifold Icing in Cooler Climates

This manifold is designed for high-performance flow, but because it is a single-carb setup with long runners, it can be susceptible to "carb icing" in humid or cold environments. If you are running this on a daily driver in a cooler climate, ensure your exhaust system is equipped with heat riser tubes and that they are properly connected to the manifold. For off-roaders and fair-weather street cars, many builders block these off for a cleaner look, but if you experience stalling or stumbling during warm-up in 40-50 degree weather, the lack of manifold heat is likely the culprit.
