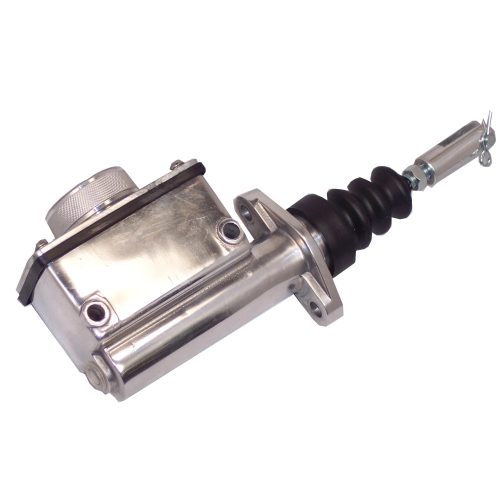

5/8 Rectangular Master Cylinder, Polished

OVERVIEW

When it comes to stopping power and pedal feel in your performance air-cooled machine, the master cylinder is the heart of the entire hydraulic system. This Latest Rage 5/8-inch bore rectangular master cylinder is engineered to provide the precise pressure and volume displacement required for high-performance braking setups. Featuring a stunning polished finish, this unit doesn''t just perform at the highest levelit adds a show-quality shine to your pedal assembly or chassis. Whether you are building a dedicated sand rail, a rugged woods buggy, or a custom street Beetle with an aftermarket pedal cluster, this master cylinder offers the reliability and consistency that Appletree Auto customers have trusted for decades. It is designed as a premium replacement for CNC, Neal, or Latest Rage pedal assemblies, ensuring that you won''t have to compromise on quality when it comes time for an upgrade or a fresh build.

The 5/8-inch bore size is specifically chosen by builders who need to fine-tune their braking ratio. This slightly smaller bore diameter increases the hydraulic pressure delivered to the calipers or wheel cylinders for a given amount of foot pressure, making it an ideal choice for vehicles where manual braking effort needs to be optimized without a vacuum booster. The rectangular reservoir design provides ample fluid capacity for 4-wheel brake systems, ensuring that even under heavy use and heat soak, your brakes remain responsive and firm. Constructed from high-quality materials and finished to a mirror polish, this master cylinder is built to withstand the harsh environments of off-road racing while looking sharp enough for the most meticulous street rod. Don''t settle for cast-iron alternatives when you can have the lightweight performance and aesthetic appeal of this polished aluminum powerhouse.

FITMENT

This master cylinder is a universal performance part designed for specific aftermarket pedal assemblies and custom applications. It is commonly used on the following:

• Pedal Assemblies: Direct replacement for CNC, Neal, and Latest Rage rectangular-style pedal clusters.
• VW Dune Buggies: All years and models utilizing aftermarket floor-mount or hang-mount pedal systems.
• Sand Rails & Off-Road Projects: Ideal for lightweight tube-chassis vehicles with 4-wheel braking systems.
• Custom VW Beetles: Perfect for builders converting to high-performance hydraulic setups or disc brake conversions.
• Manx-Style Buggies: Fits perfectly in tight floorboards where a compact, vertical-mount master cylinder is required.

SPECS

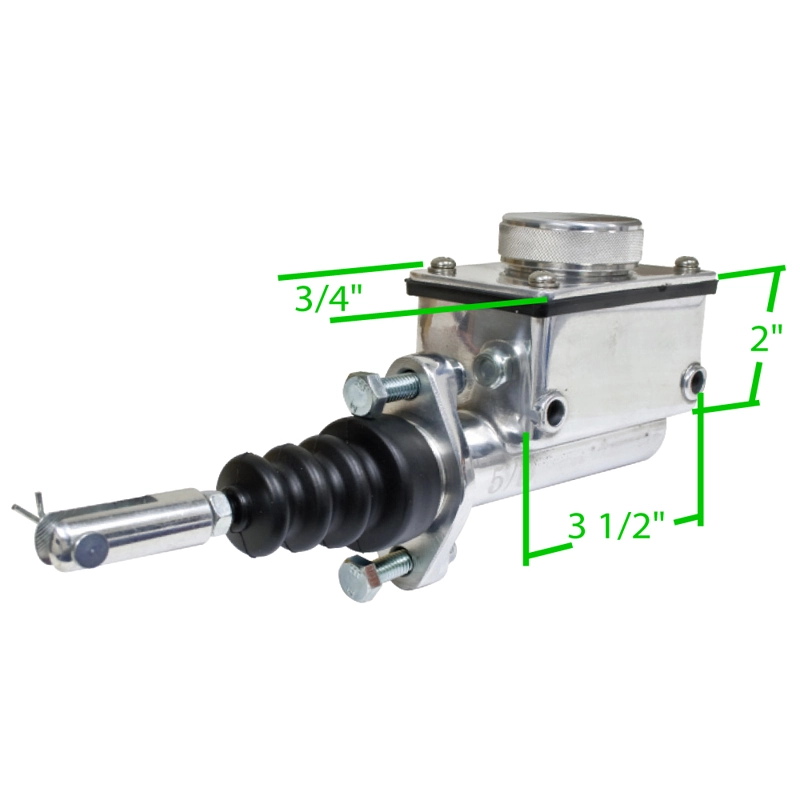

Technical specifications and dimensions for the AC799520P master cylinder:

• Bore Size: 5/8 Inch (0.625").
• Finish: High-Luster Polished Aluminum.
• Reservoir Style: Integrated Rectangular Fluid Reservoir.
• Outlet Port: 1/8-Inch NPT (National Pipe Thread).
• Mounting Pattern: 2-1/4 Inches on center.
• Mounting Orientation: 12 o''clock and 6 o''clock (Vertical) configuration.
• Overall Height: 4-1/2 Inches.
• Overall Length: 9 Inches.
• Application: Optimized for 4-wheel brake systems.
• Compatibility: Compatible with DOT 3, DOT 4, and DOT 5.1 brake fluids.

PRO TIPS

1. Always Bench Bleed Before Installation

One of the most common mistakes builders make is installing a "dry" master cylinder directly onto the vehicle. To ensure a firm pedal and prevent trapped air pockets that are nearly impossible to remove later, you must bench bleed this unit. Use a bench bleeding kit to loop the fluid from the 1/8-inch NPT outlet back into the reservoir. Slowly cycle the piston until no air bubbles are visible in the lines. This ensures the internal seals are lubricated and the high-pressure chamber is fully primed before it ever hits your brake lines. Skipping this step often leads to a "spongy" pedal that no amount of wheel-bleeding will fix.

2. Proper NPT Fitting Selection

This master cylinder uses a 1/8-inch NPT threaded outlet. It is critical to remember that NPT threads are tapered and rely on the threads themselves to create a seal, unlike inverted flare fittings which seal on a seat. When installing your brake line adapter, use a high-quality thread sealant or PTFE tape specifically rated for automotive chemicals. Be extremely careful not to over-tighten the fitting into the polished aluminum body, as excessive force can crack the housing. Snug it down firmly until the seal is established, but avoid "bottoming out" the fitting.

3. Understanding the 5/8 Bore Ratio

Choosing the correct bore size is a science. A 5/8-inch bore creates higher line pressure with less physical leg effort compared to a 3/4-inch bore, but it requires a slightly longer pedal stroke to move the same volume of fluid. This makes it the "goldilocks" choice for many VW-based buggies and rails running 4-wheel disc brakes or a combination of discs and drums. If you find your brake pedal is too hard to push and the car isn''t stopping well, switching to this 5/8-inch bore master cylinder is often the perfect solution to regain control and improve driver confidence during high-speed maneuvers.
