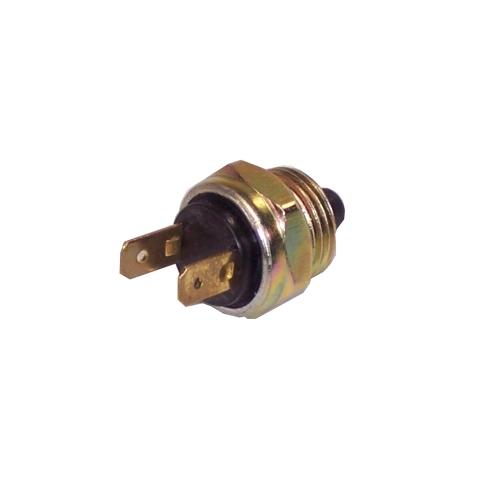

Backup Light Switch, Fits All Air Cooled VW

OVERVIEW

When it comes to restoring the safety and functionality of your vintage Volkswagen, few components are as overlooked yet essential as the backup light switch. This IAP Backup Light Switch is designed to meet or exceed original equipment specifications, ensuring that your reverse lights engage the moment you shift into gear. Located directly in the nose cone of your manual transaxle, this switch is the heart of your rear-facing visibility system. Whether you are navigating a dark driveway in your classic Beetle or backing out of a crowded car show in your Type 2 Bus, having reliable backup lights is crucial for alerting other drivers and pedestrians of your movement. Over decades of service, original switches often succumb to internal corrosion, mechanical wear, or oil seepage, leading to flickering lights or a total circuit failure. Replacing your old, tired unit with this high-quality component restores that factory-fresh responsiveness you expect from your air-cooled machine.

Beyond its primary electrical function, this switch also serves as a critical mechanical seal for your transmission fluid. A failing or missing switch is a common source of gear oil leaks at the front of the transaxle, which can lead to a messy garage floor and, more importantly, low fluid levels that threaten the longevity of your gears. This switch is engineered with a robust steel body and high-grade insulating materials to withstand the harsh environment of the undercarriage, resisting heat, vibration, and constant exposure to gear lubricants. Even if your specific custom build or dune buggy isn''t currently wired for reverse lights, installing this switch is the professional way to "plug" the factory hole in the nose cone while keeping the door open for future electrical upgrades. Don''t settle for a dim or non-functional rear end; upgrade to this reliable switch and ensure your VW is seen every time you find reverse.

FITMENT

This backup light switch is designed for all air-cooled Volkswagen manual transmissions equipped with a threaded provision in the nose cone. Compatibility includes:

• VW Beetle: 1961 through 1977 (Standard) and 1971 through 1979 (Super Beetle)
• VW Karmann Ghia: 1961 through 1974
• VW Bus / Type 2: 1961 through 1979 (Including Kombi, Microbus, and Transporter)
• VW Type 3: 1962 through 1973 (Squareback, Fastback, and Notchback)
• VW Thing / Type 181: 1973 through 1974
• Custom Applications: Fits most Dune Buggies, Sand Rails, and Kit Cars utilizing a VW Type 1, Type 2, or Type 3 manual transaxle.

SPECS

• Part Number: 211-941-521
• Thread Size: M12 x 1.5 metric threading
• Terminal Type: Dual 6.3mm male spade connectors for easy wiring
• Housing Material: Zinc-plated heavy-duty steel for corrosion resistance
• Switch Type: Normally Open (Circuit closes when plunger is depressed by the internal shift rail)
• Operating Voltage: Compatible with both 6V and 12V electrical systems
• Body Style: Hex-head design for easy installation with a standard deep socket or wrench
• Internal Seal: High-temperature resistant plunger seal to prevent gear oil migration

PRO TIPS

Tip 1: Bench Test Before You Bolt In

Before you crawl under the car and get covered in gear oil, it is always a smart move to bench test your new switch. Simply set your digital multimeter to the "Continuity" or "Ohms" setting and touch the probes to the two spade terminals on the back of the switch. In its resting state, there should be no continuity (an open circuit). When you manually depress the plunger at the tip of the switch with your thumb or a small tool, the meter should beep or show near-zero resistance. This confirms the internal contacts are functioning perfectly before you spend the time on the installation. Checking this early ensures that if your lights still don''t work after installation, you know the issue lies in your wiring or bulbs rather than the switch itself.

Tip 2: Watch Your Washer and Torque

One of the most common mistakes when replacing a VW backup light switch is forgetting the crush washer or over-tightening the unit. This switch requires a copper or aluminum sealing washer to prevent gear oil from weeping past the threads. If your old switch comes out without a washer, check the nose cone carefully; it might be stuck to the mating surface. Always use a fresh washer to ensure a liquid-tight seal. When tightening, remember that you are threading steel into an aluminum nose cone. Snug it down firmly to crush the washer, but do not use excessive force, as stripping the threads in the transmission case is an expensive mistake. A firm "hand-tight plus a quarter turn" with a wrench is usually sufficient to keep the gear oil where it belongs.

Tip 3: Protect the Connections from the Elements

Because the backup light switch is located on the nose cone of the transmission, it is constantly bombarded by road grime, water, and occasional oil mist. To prevent the spade terminals from corroding and causing a high-resistance connection (which leads to dim lights), we highly recommend using rubber terminal boots or heat-shrink tubing over your wire ends. Additionally, applying a small amount of dielectric grease to the terminals before sliding the connectors on will provide an airtight seal against moisture. This extra five minutes of work during installation will prevent the "mystery flickering" that plagues so many old VW electrical systems during rainy weather or after a car wash.
