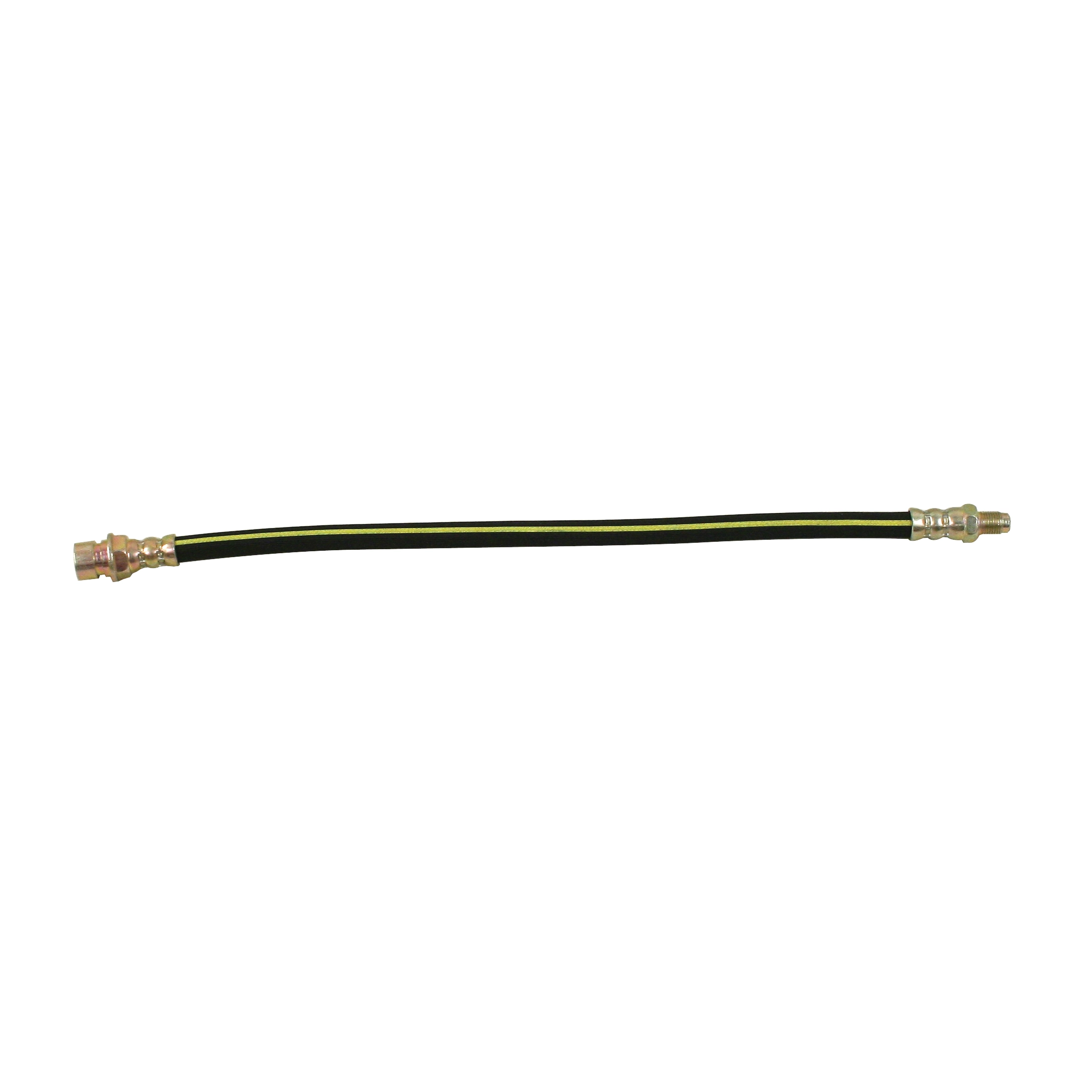

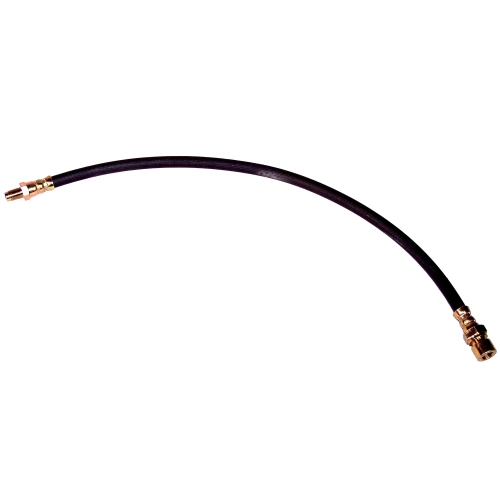

Front Brake Hose, Beetle 66-77

OVERVIEW

When it comes to the safety and reliability of your classic air-cooled Volkswagen, nothing is more critical than the integrity of your hydraulic braking system. Over decades of service, original equipment rubber brake lines undergo a process of internal degradation that is often invisible from the outside. While the exterior might look serviceable, the inner lining of these hoses frequently collapses or swells, creating a restrictive "one-way valve" effect. This phenomenon allows the massive pressure from your master cylinder to force fluid to the wheel cylinders or calipers, but prevents the weaker return springs from pushing that fluid back. If you find your VW Beetle or Type 3 experiencing brake drag, a "hard" pedal that won''t release, or pulling to one side after a stop, these aging hoses are almost certainly the culprit. Replacing them with our high-quality 380mm front brake hoses ensures that your stopping power is consistent, balanced, and responsive, restoring that factory-fresh pedal feel you need for modern traffic conditions.

Our IAP Front Brake Hoses are engineered to meet or exceed original German specifications, featuring a multi-layer reinforced rubber construction designed to withstand the high-pressure environment of your VW''s braking system. These hoses are specifically sized at 380mm to provide the necessary slack for full steering lock-to-lock movement without straining the fittings or the hose body. Each hose features a precision-machined male end and a corresponding female end, ensuring a leak-free seal with your existing hard lines and wheel components. Whether you are performing a full frame-off restoration on a 1967 Beetle or simply maintaining a daily-driver Super Beetle, these hoses are an essential upgrade. Don''t risk your investment or your safety on brittle, 50-year-old rubber; upgrading to these fresh lines is one of the most cost-effective ways to ensure your air-cooled VW stops as well as it goes. At Appletree Automotive, we understand that every millimeter counts in a hydraulic system, which is why we provide only the most reliable components for your vintage ride.

FITMENT

This front brake hose is designed for a wide range of air-cooled Volkswagen models. Please verify your specific production year and braking configuration before ordering:

• VW Beetle (Standard): 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977.
• VW Super Beetle (1302/1303): 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979 (Convertible models included).
• VW Type 3 (Fastback, Squareback, Notchback): 1966 (Models equipped with front drum brakes).
• VW Karmann Ghia: 1967-1974 (Front fitment for models utilizing 380mm M/F lines).
• Custom Applications: Ideal for Dune Buggies, Woods Buggies, and Sand Rails using standard VW ball joint or strut front ends requiring a 380mm male-to-female connection.

SPECS

Below are the technical specifications for the IAP Front Brake Hose (Part # 113-611-701D):

• Overall Length: 380mm (Approximately 14.96 inches).
• Fitting Type A: Male M10 x 1.0 Thread.
• Fitting Type B: Female M10 x 1.0 Thread.
• Material: High-density, oil-resistant synthetic rubber with internal braided reinforcement.
• Construction: Multi-layer vulcanized design to prevent expansion under high pressure.
• Finish: Zinc-plated steel end fittings for maximum corrosion resistance.
• Compatibility: Compatible with DOT 3, DOT 4, and DOT 5.1 brake fluids.
• OEM Reference Number: 113-611-701D.

PRO TIPS

Tip 1: The "Twist" Trap During Installation

One of the most common mistakes when installing new rubber brake hoses is allowing the hose to twist as you tighten the fittings. A twisted hose creates internal stress and can lead to premature failure or restricted fluid flow. To avoid this, always start the threads by hand at both ends. When tightening the final connection, use a pair of flare nut wrenchesone to hold the hose fitting steady and the other to turn the hard line nut. Ensure the hose maintains a natural, relaxed curve throughout the full range of steering movement before you perform the final torque. If the hose looks "spiraled," loosen it and reset the orientation.

Tip 2: Diagnosing Clogged Hoses vs. Stuck Pistons

If you suspect your brakes are sticking, you can perform a simple diagnostic test to confirm if the hose is at fault. With the vehicle safely on jack stands and the brake sticking, briefly crack open the bleeder valve on the wheel cylinder or caliper. If the wheel suddenly spins freely and a small squirt of pressurized fluid comes out, the rubber hose has collapsed internally and is acting as a check valve. If the wheel remains stuck even with the bleeder open, the problem is likely a seized piston or mechanical binding in the drum hardware. This test saves you from replacing parts that are still functional while pinpointing the exact failure in your hydraulic circuit.

Tip 3: Always Replace in Axle Pairs

Hydraulic pressure follows the path of least resistance. If you replace only one front brake hose, the difference in internal diameter and expansion rates between the new hose and the old, weathered hose on the opposite side can cause the vehicle to pull significantly under hard braking. To maintain a balanced braking force and ensure predictable handling, always replace front brake hoses in pairs. While you are at it, this is the perfect time to inspect your brake line clips and the condition of your metal hard lines. If the hard lines show signs of heavy pitting or rust, replace them alongside the hoses to ensure your entire system is up to the task of modern driving.
