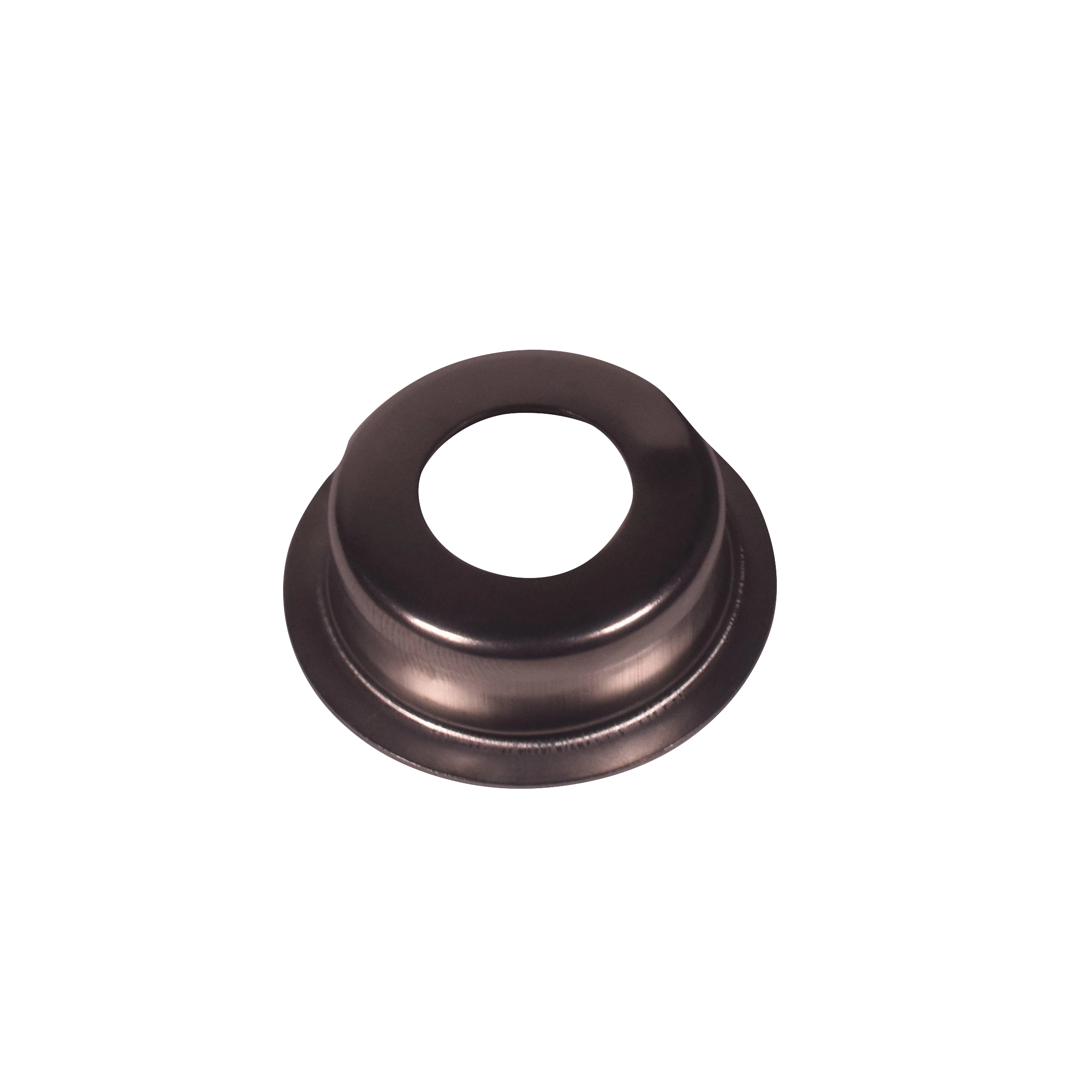

Throw Out Arm Dust Shield, for Beetle & Bus 68-75 STAINLESS

OVERVIEW

Protecting your air-cooled Volkswagen''s drivetrain from the elements is essential for maintaining smooth clutch operation and preventing premature wear on critical internal components. The Latest Rage Stainless Steel Throw Out Arm Dust Shield is an indispensable upgrade for any 1968 to 1975 Beetle or Bus owner who is tired of dealing with the grit, grime, and moisture that inevitably finds its way into the bellhousing. This specific dust shield seals the vulnerable gap where the clutch cable connects to the throw-out arm, acting as a primary line of defense against road debris and clutch dust accumulation. Unlike the original factory units that were often made of thin, stamped steel prone to rusting and flaking, this stainless steel version is engineered to withstand the harshest environments, ensuring that your clutch linkage remains clean and free-moving for years to come.

At Appletree Automotive, we understand that every detail matters when you are restoring a classic or maintaining a daily driver. A missing or compromised dust shield allows contaminants to enter the transmission area, which can lead to the binding of the throw-out shaft or even accelerated wear on the throw-out bearing itself. By installing this high-quality stainless steel shield, you are not just replacing a part; you are investing in the longevity of your transmission housing and clutch assembly. The polished stainless finish not only provides superior corrosion resistance but also adds a professional, clean look to the underside of your VW. Whether you are navigating dusty off-road trails in a Baja Bug or cruising the highway in a Type 2 Westfalia, this dust shield ensures that your clutch system remains sealed and protected from the abrasive forces of the outside world.

FITMENT

This stainless steel throw-out arm dust shield is designed for the following Volkswagen models equipped with the standard manual transmission setup used between 1968 and 1975:

• VW Beetle (Type 1): 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975
• VW Super Beetle: 1971, 1972, 1973, 1974, 1975
• VW Bus (Type 2): 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975
• VW Karmann Ghia: 1968, 1969, 1970, 1971, 1972, 1973, 1974
• VW Thing (Type 181): 1973, 1974

SPECS

Every Latest Rage product is manufactured to meet or exceed original equipment specifications for a perfect fit and reliable performance. Review the technical details below:

• Part Number: AC302010S
• Material: High-Grade 304 Stainless Steel for maximum rust prevention.
• Application: Throw-out shaft arm assembly.
• Inner Diameter: Optimized for the 20mm throw-out shafts standard in 1968-1975 models.
• Finish: Bright, polished stainless steel.
• Resistance: Highly resistant to oil, road salt, and extreme thermal cycles.
• Installation: Slides over the throw-out arm during cable or shaft maintenance.

PRO TIPS

1. Inspect the Throw-Out Shaft Bushings

While you have the clutch cable disconnected and the arm accessible to install your new stainless steel dust shield, take a moment to inspect the throw-out shaft bushings. If there is excessive side-to-side play in the arm, your bushings are likely worn out. Installing a new shield on a sloppy shaft won''t provide as effective a seal. We recommend cleaning the shaft thoroughly with a wire brush and applying a light coating of high-temp lithium grease before sliding the new shield into place to ensure everything moves smoothly without binding.

2. Check the Clutch Cable Tube Alignment

The dust shield works best when the clutch cable tube (the "bowden tube") is properly aligned and has the correct amount of sag. If your bowden tube is straight or lacks the factory-specified curve, it can put undue stress on the throw-out arm and the dust shield itself. Ensure that the tube is securely seated in the transmission bracket so that the cable enters the arm at a straight angle. This prevents the cable from rubbing against the edges of your new stainless shield, which could lead to frayed cables or a compromised seal over time.

3. Use Stainless Steel Hardware for a Complete Seal

If you are replacing the dust shield because the old one rusted away, it is highly probable that your return spring and various clips are also showing signs of oxidation. To get the most out of your upgrade, we suggest pairing this stainless shield with a fresh clutch arm return spring and a new cotter pin. Since this shield is made of stainless steel, it won''t react with moisture, but using old, rusted hardware nearby can cause "bleeding" of rust onto your new part. A clean, well-lubricated assembly ensures that your pedal feel remains light and consistent every time you shift gears.
