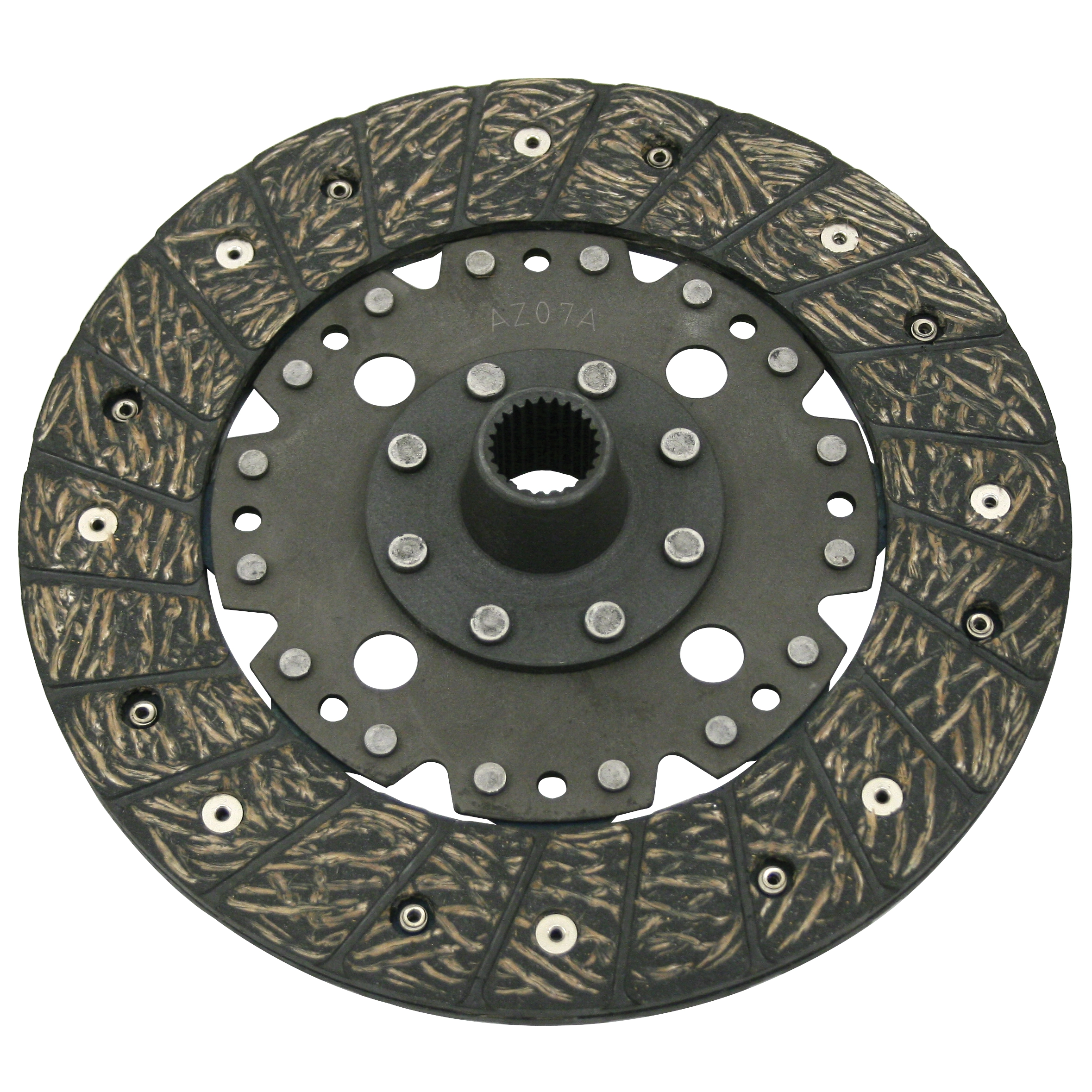

180mm Clutch Disc, Rigid, for Beetle 46-66 & Bus 50-62

Product Overview

When it is time to restore the drivetrain of your vintage air-cooled Volkswagen, selecting the correct clutch components is vital for ensuring smooth operation and long-term reliability. This EMPI 180mm Rigid Clutch Disc is specifically engineered for early Beetle, Bus, and Type 3 models that utilized the smaller 180mm flywheel diameter before the industry-wide shift to the 200mm standard in late 1966. Unlike modern sprung discs that use small coil springs to dampen engine vibrations and soften engagement, this rigid style disc features a solid hub design. This was the standard configuration for many early production Volkswagens, providing a direct and mechanical feel that purists and vintage enthusiasts often prefer when maintaining the original driving characteristics of their 25hp, 36hp, or early 40hp powerplants.

At Appletree Automotive, we understand that "close enough" isn''t good enough when it comes to transmission components. This 180mm rigid disc offers a quicker engagement profile compared to its sprung counterparts, making it an excellent choice for lightweight vintage builds or budget-conscious restorations where simplicity is key. Because it lacks the complex spring hub mechanism, there are fewer moving parts to fail, which can be advantageous in specific vintage applications. However, because it is a rigid disc, it requires a smoother left foot to prevent "chatter" during take-off. Whether you are finishing a concours-level restoration on a split-window Beetle or just keeping your 1960 Transporter on the road, this EMPI clutch disc provides the durability and fitment you expect from a leader in the VW aftermarket industry.

Vehicle Fitment

• Volkswagen Beetle (Type 1): 1946 through 1966 (Models with 180mm Flywheels)
• Volkswagen Bus (Type 2): 1950 through 1962
• Volkswagen Karmann Ghia: 1956 through 1966
• Volkswagen Type 3 (Squareback/Fastback/Notchback): 1962 (Early production)

Technical Specifications

• Disc Diameter: 180mm (Approximately 7.08 inches)
• Hub Style: Rigid / Solid Center (Non-Sprung)
• Spline Count: Standard VW 24-Spline
• Friction Material: High-quality organic compound for consistent thermal stability
• Reference Part Number: 111-141-031E
• Manufacturer: EMPI
• Application: Early 6V and 12V transaxles with small-diameter input shafts

Expert Pro Tips from Appletree Automotive

Tip 1: Verify Your Flywheel Size Before Installation

One of the most common mistakes in early VW repair is assuming a 1966 Beetle uses a 200mm clutch. 1966 was a transition year; while many 1300cc engines moved to 200mm, many still retained the 180mm setup. Always measure the friction surface of your flywheel before ordering. If your flywheel measures roughly 7 inches across, you need this 180mm disc. If you attempt to use a 180mm disc on a 200mm flywheel, you will suffer from massive slippage and premature failure, as the pressure plate will not provide even contact across the friction surface.

Tip 2: Prevent Oil Contamination at All Costs

A clutch disc is only as good as the seals around it. Since you already have the engine pulled to replace this disc, we highly recommend replacing the flywheel O-ring (or metal gasket on early 36hp models) and the rear main seal. Even a tiny amount of engine oil or transmission fluid leaking onto this new organic friction material will cause the clutch to "chatter" or slip, effectively ruining the disc. Clean the flywheel and pressure plate surfaces thoroughly with brake cleaner to remove any shipping oils before mating the new disc to the assembly.

Tip 3: Proper Alignment is Key to Input Shaft Health

Never "force" the engine back onto the transmission. When installing this rigid disc, use a dedicated VW clutch alignment tool to center the disc perfectly between the flywheel and pressure plate. If the disc is even slightly off-center, the transmission input shaft will hang up on the splines, which can bend the disc''s center hub or damage the pilot bearing/bushing. If the engine doesn''t slide in smoothly, pull it back, re-verify the alignment, and ensure the transmission is in gear so you can rotate the crankshaft slightly to line up the splines.
