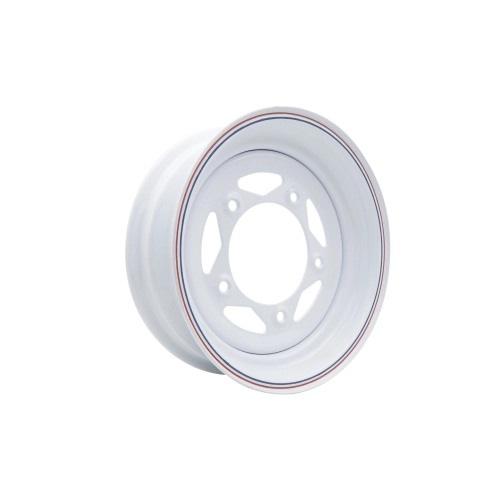

15 X 5 Steel Rim, Series 81, 5 On 205mm, 2-1/2 Backspacing

Product Overview: The Ultimate Off-Road Foundation for Your Wide-5 VW

When it comes to building a vintage Volkswagen that can actually handle the rigors of the trail, the EMPI Series 81 Steel Rim stands as the gold standard for durability and classic off-road styling. This isn''t your average replacement wheel; it is a heavy-duty steel powerhouse engineered specifically for the enthusiast who demands more than just a "show look." Whether you are carving through sand dunes in a Manx-style buggy or navigating rocky fire roads in a lifted Baja Bug, these wheels provide the structural integrity required to survive impacts that would shatter or bend a standard aluminum rim. The 15 x 5-inch profile is the "sweet spot" for many off-roaders, allowing for a taller tire sidewall that acts as secondary suspension, absorbing the harshness of the terrain while maintaining a narrow enough footprint to cut through soft dirt and mud without excessive drag on your air-cooled powerplant.

The Series 81 wheel features the iconic 5 on 205mm bolt pattern, often referred to as the "Wide-5" pattern, which was the standard for early Beetles, Buses, and Ghias. This specific model features a 2-1/2 inch backspacing, which is critical for dialing in your vehicle''s stance and suspension clearance. By moving the wheel slightly outward compared to stock dimensions, you gain much-needed room for beefier suspension components, such as reinforced tie rods or long-travel ball joints, without sacrificing the turning radius. The heavy-duty steel construction is finished to withstand the elements, ensuring that your investment doesn''t just perform well on day one but continues to resist the corrosion and fatigue that typically plague lesser off-brand wheels in the air-cooled market. When you choose the EMPI 81-5519, you are choosing decades of off-road racing heritage and a commitment to quality that Appletree Auto stands behind for every build.

Vehicle Fitment and Compatibility

This wheel is designed for vehicles utilizing the vintage Large 5-Lug (5x205mm) bolt pattern. Please verify your drum or disc brake conversion pattern before ordering.

• Volkswagen Beetle: 1946 through 1967 (Standard Models)
• Volkswagen Karmann Ghia: 1956 through 1966
• Volkswagen Type 2 Bus / Transporter: 1950 through 1970
• Volkswagen Type 3 (Squareback, Fastback, Notchback): 1961 through 1965
• Dune Buggies & Sand Rails: All models using Wide-5 (5x205mm) drums or disc brake hubs
• Baja Bug Conversions: Ideal for 1967-and-earlier pans or later pans converted to the Wide-5 pattern

Technical Specifications

• Brand: EMPI Series 81
• Part Number: 81-5519
• Wheel Diameter: 15 Inches
• Wheel Width: 5 Inches
• Bolt Pattern: 5 on 205mm (Wide-5)
• Backspacing: 2.5 Inches (63.5mm)
• Material: Heavy-Duty Rolled Steel
• Weight: Approximately 19 lbs per wheel
• Construction: Two-piece welded steel for maximum lateral strength
• Application: Off-Road, Street, and Trail use

Master Specialist Pro Tips

Tip 1: Selecting the Correct Lug Nuts for Steel Wheels

One of the most common mistakes we see at Appletree Auto is the use of incorrect lug nuts when switching from alloy wheels to these Series 81 steel rims. Steel wheels require a 60-degree taper (cone seat) lug nut to center the wheel properly on the hub and provide the necessary clamping force. Never use the radius (ball seat) lugs intended for original German stock wheels or the specialized hardware meant for EMPI aluminum wheels. Always hand-torque your lug nuts to 80 ft-lbs in a star pattern and re-check them after your first 50 miles of driving, as steel wheels can "settle" slightly against the drum surface during their initial heat cycles.

Tip 2: Understanding Backspacing and Suspension Clearance

The 2-1/2 inch backspacing on this 5-inch wide rim is specifically designed to provide a wider track than a stock 4-inch wide wheel. This is a massive advantage if you are running a widened beam or aftermarket disc brakes, which can sometimes push the track out further. However, if you are running a stock-width beam on a Beetle with full fenders, you must check your tire-to-fender clearance. This wheel is perfect for Baja Bugs where the fenders are trimmed, as it allows you to run a 215/75-15 or a 7.00-15 tire without the inner sidewall rubbing against the shock towers or the frame head during tight turns.

Tip 3: Tire Balancing for Off-Road Performance

Because steel wheels are inherently heavier and designed for rugged use, they can sometimes require more weights to balance than a precision-machined alloy wheel. If you are mounting aggressive off-road tires, we highly recommend "Static Balancing" or using internal balancing beads. Balancing beads are particularly effective for the Series 81 wheel in off-road applications because they constantly adjust to the tire''s heavy spots as you drive, even if you pick up a bit of mud or debris in the rim. This ensures a smooth ride on the highway while you are transit-driving to your favorite trail head, preventing the "steering wheel shake" that often plagues vintage VWs with larger tires.
