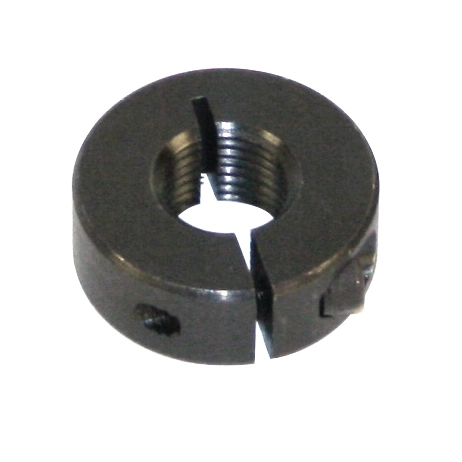

Thru Rod Nuts, 4 Pack

Product Overview: The Ultimate Security for Your Warrior Beam Setup

When you''re pushing your air-cooled Volkswagen to the limit in off-road environments, every piece of hardware becomes a critical failure point. These EMPI Thru Rod Nuts are specifically engineered to provide the heavy-duty clamping force required for "Warrior" style front beams and thru-rod suspension systems. Unlike standard leaf-spring setups, a thru-rod system replaces the internal leaves with solid steel rods to provide superior strength and adjustability for high-travel applications. These specialty nuts are the final link in that chain, securing the trailing arms to the thru-rods and ensuring that your front suspension geometry remains fixed even when landing jumps or navigating through deep whoops in the desert. If you are running an aftermarket King Pin beam designed for off-road abuse, these nuts are a non-negotiable component for your chassis assembly.

Constructed from high-tensile strength steel and finished to withstand the elements, this 4-pack of nuts is designed for the enthusiast who demands reliability. In a thru-rod configuration, these nuts are subjected to immense lateral and axial loads as the trailing arms cycle through their range of motion. Standard hardware simply won''t cut it here; you need the specific thread pitch and shoulder design that EMPI has perfected for the Volkswagen off-road market. This kit provides a complete set for one vehicle, covering both the upper and lower thru-rods on both the driver and passenger sides. Whether you are building a ground-up sand rail, a rugged Baja Bug, or a competition-level woods buggy, these thru-rod nuts provide the peace of mind that your front end will stay together when the terrain gets technical.

Vehicle Fitment and Compatibility

These thru-rod nuts are designed for use with aftermarket "Warrior" and heavy-duty King Pin front beams. While they are a staple in the off-road community, they fit the following applications when equipped with a thru-rod conversion:

• VW Beetle: 1950-1965 (Models converted to King Pin Warrior Beams)
• VW Karmann Ghia: 1956-1965 (Models converted to King Pin Warrior Beams)
• Dune Buggies: All years utilizing a 2-inch or 2.25-inch Warrior style front beam
• Sand Rails: Custom chassis using thru-rod suspension front ends
• Baja Bugs: Specifically those running widened or reinforced King Pin beams
• Woods Buggies: High-clearance front ends requiring thru-rod stabilization

Technical Specifications

Precision manufacturing ensures that these nuts meet the rigorous demands of air-cooled performance. Below are the technical details for the AC401021N kit:

• Part Number: AC401021N
• Material: High-Grade Carbon Steel for maximum thread durability
• Finish: Corrosion-resistant Zinc plating for long-term outdoor use
• Quantity: 4 Pieces (Complete set for one front beam)
• Application: Secures Trailing Arms to Thru-Rods
• Compatible Beam Type: King Pin / Link Pin Warrior Beams
• Weight: 0.38 lbs (Total pack weight)
• Thread Profile: Specifically matched for standard EMPI and specialty off-road thru-rods

Pro Tips from the Appletree Garage

Tip 1: The "Double-Check" Torque Sequence

In a thru-rod setup, the nuts are responsible for keeping the trailing arms snug against the beam bushings. After your first high-speed run or trail ride, we strongly recommend re-checking the torque on these nuts. The vibration and heat-cycling common in off-road racing can cause initial "settling" of the trailing arms. Use a high-quality torque wrench to ensure even pressure across all four points, which prevents uneven tire wear and "death wobble" at high speeds. Never rely on an impact wrench alone for the final seat; precision hand-torquing is the hallmark of a professional build.

Tip 2: Anti-Seize is Your Best Friend

While these nuts are zinc-plated to resist rust, the environment that Baja Bugs and Sand Rails live in is often brutal. We highly recommend applying a small amount of nickel-based anti-seize to the thru-rod threads before installation. This prevents "galling" (where the threads cold-weld together) and ensures that if you ever need to swap a trailing arm or service your beam bushings in the field, you won''t be fighting a seized nut with a breaker bar. It also allows for more accurate torque readings by reducing friction during the tightening process.

Tip 3: Inspect Your Thru-Rods for Stretch

Whenever you are replacing your thru-rod nuts, take a moment to inspect the thru-rods themselves. Check the threads for any signs of stretching or flattening, especially if the old nuts were difficult to remove. If the rod is bent or the threads are compromised, even a brand-new nut won''t provide the clamping force needed for safety. Ensure the rods are perfectly straight and the threads are clean of debris before threading on your new EMPI hardware. A clean, straight rod paired with these fresh nuts ensures your front suspension remains the strongest part of your VW.
